MME08XW1 05 – BASEPLATE – Aparts

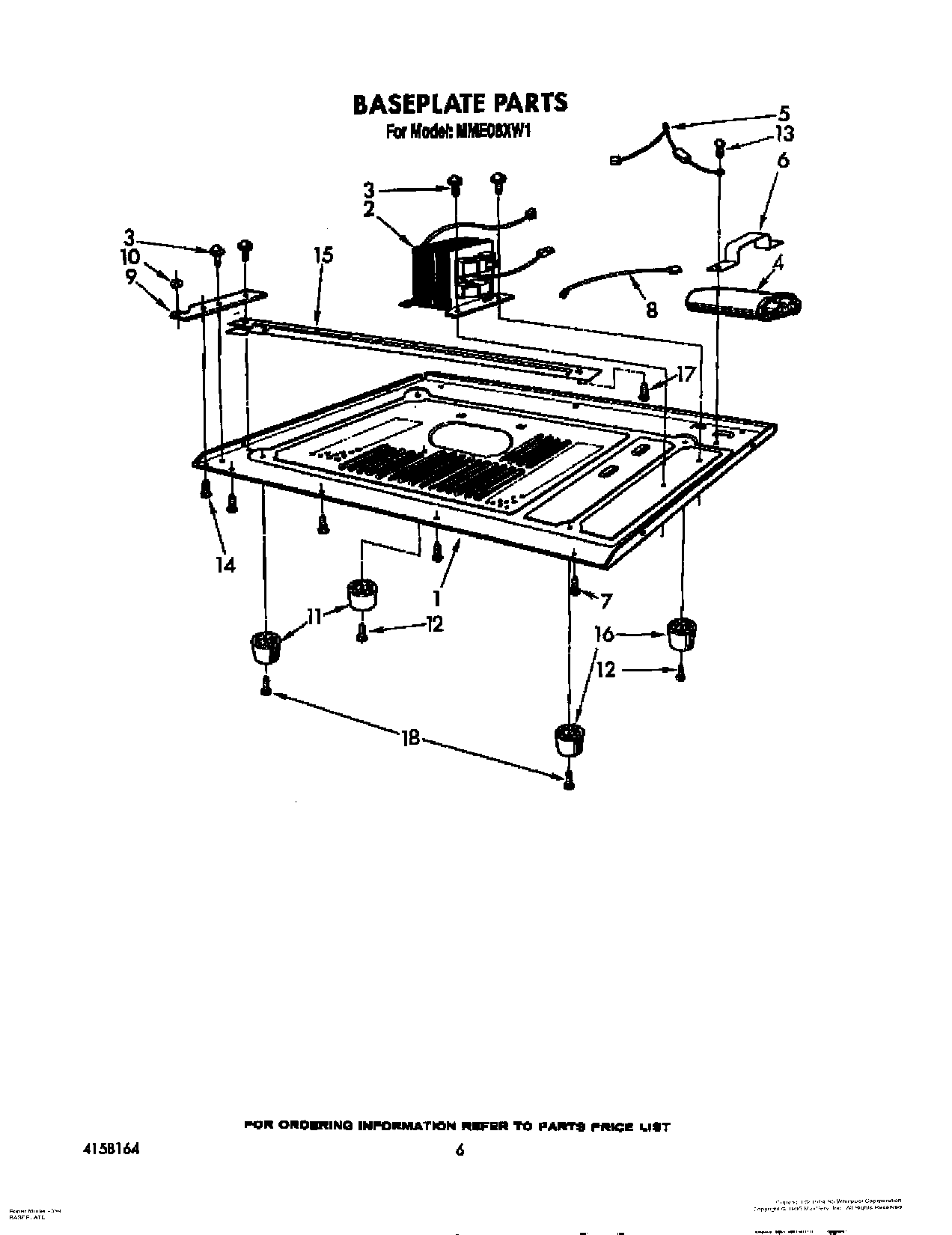

MME08XW1 05 – BASEPLATE

Products

Position	Product
1	Baseplate
2	Transformer
3	Screw (2)
4	Capacitor - H.V.
5	H.V. Diode Cable
6	Bracket, Capacitor
7	Screw
8	H.V. Cable
9	Hinge Plate, Lower
10	Washer
11	Leg, Left
12	Screw
13	Screw (2)
14	Screw (2)
15	Bracket, Hinge
16	Leg, Right
18	W11380570 Whirlpool Microwave Screw
