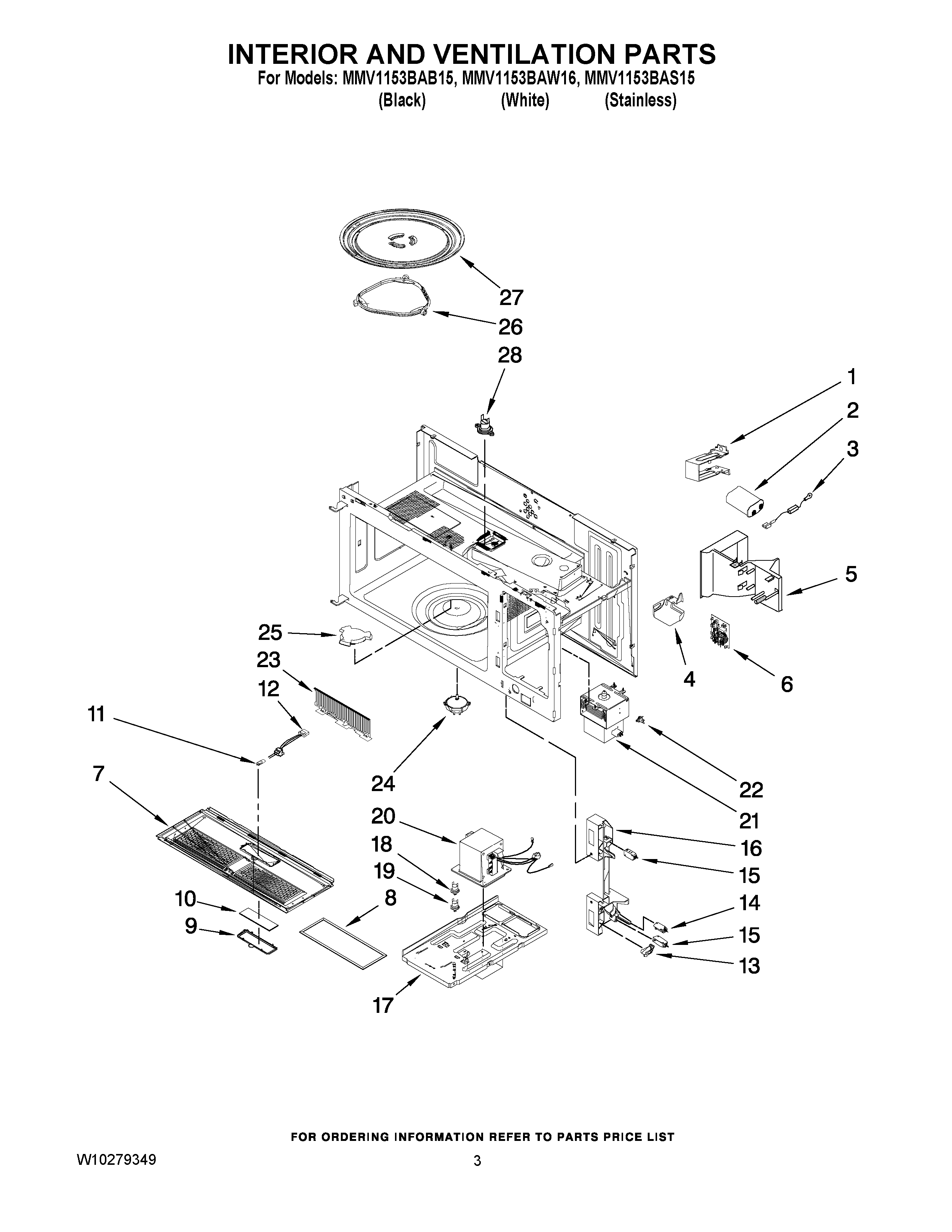

MMV1153BAW16 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T13:02:51+00:00MMV1153BAW16 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET-HVC,MW8ROWC,SECC,T0.6, |
| 2 | 2501-001035 Samsung Microwave C-Oil High Voltage Capacitor |
| 3 | MAY DE59-00002A |
| 4 | Guide(B), Air |
| 5 | GUIDE-AIR(A) |
| 6 | DE96-00400A Samsung Microwave Oven Noise Filter Assembly |
| 7 | MAY W10254197 |
| 7 | MAY W10258365 |
| 8 | DE63-00196A Samsung Aluminum Air Filter |
| 9 | COVER-COOKTOP LAMP |
| 9 | COVER-COOKTOP LAMP |
| 10 | DE67-40063A Samsung Microwave Oven Cooktop Lamp Light Bulb Glass Cover |
| 11 | LAMP-INCANDESCENT |
| 12 | HOLDER-LAMP |
| 13 | DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing |
| 14 | MAY 3405-001033 |
| 15 | WP3405-001034 Whirlpool Microwave Switch |
| 16 | LATCH-BODY,MODULAR-2,PP,-,-,-, |
| 17 | MAY W10280438 |
| 18 | DE47-20034A Samsung Microwave Thermostat |
| 20 | MAY W10261283 |
| 21 | WPW10126786 Whirlpool Microwave Magnetron |
| 22 | DE47-20007A Samsung Microwave Oven Thermostat |
| 23 | COVER-FRONT |
| 24 | DE31-10104D Samsung TURNTABLE DRIVE MOTOR |
| 25 | DE67-00180A Samsung Microwave Oven Tray Coupler |
| 26 | DE97-00192C Samsung Microwave Oven Turntable Guide Roller Support Assembly |
| 27 | DE74-20015G Samsung Glass Cooking Tray |
