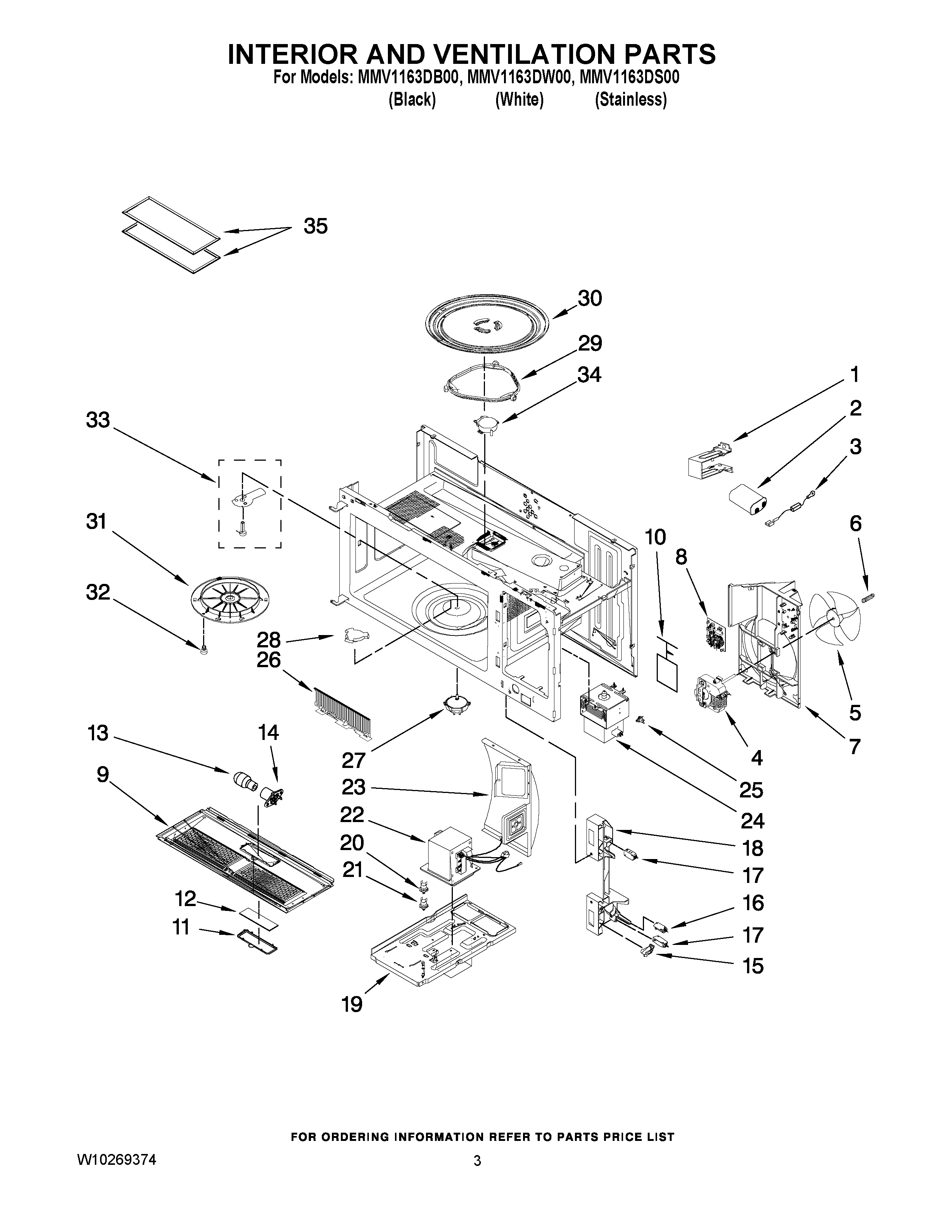

MMV1163DS00 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY DE61-00115A
22501-001016 Samsung Capacitor
3DE91-70063D Samsung Oven Microwave High Voltage Diode
4MOTOR-FAN
5BLADE, FAN
6MAY W10260124
7MAY W10260125
8DE96-00400A Samsung Microwave Oven Noise Filter Assembly
9MAY W10254197
9MAY W10258365
10SUPPORTER-PCB
11COVER-COOKTOP LAMP
11COVER-COOKTOP LAMP
12DE67-40063A Samsung Microwave Oven Cooktop Lamp Light Bulb Glass Cover
13LAMP-INCANDESCENT
14HOLDER-LAMP
15DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
16MAY 3405-001033
17WP3405-001034 Whirlpool Microwave Switch
18LATCH-BODY,MODULAR-2,PP,-,-,-,
19MAY W10260156
20DE47-20007A Samsung Microwave Oven Thermostat
21DE47-20034A Samsung Microwave Thermostat
22MAY W10260179
23MAY W10260127
24MAY W10260180
26MAY W10260201
27MAY W10260200
28MAY W10260202
29ASSY-GUIDE ROLLER
30MAY W10260144
31MAY W10258364
32MAY DE66-20095B
33MAY W10260207
35DE63-00196A Samsung Aluminum Air Filter
