MMV1174DE2 05 – AIR FLOW PARTS – Aparts

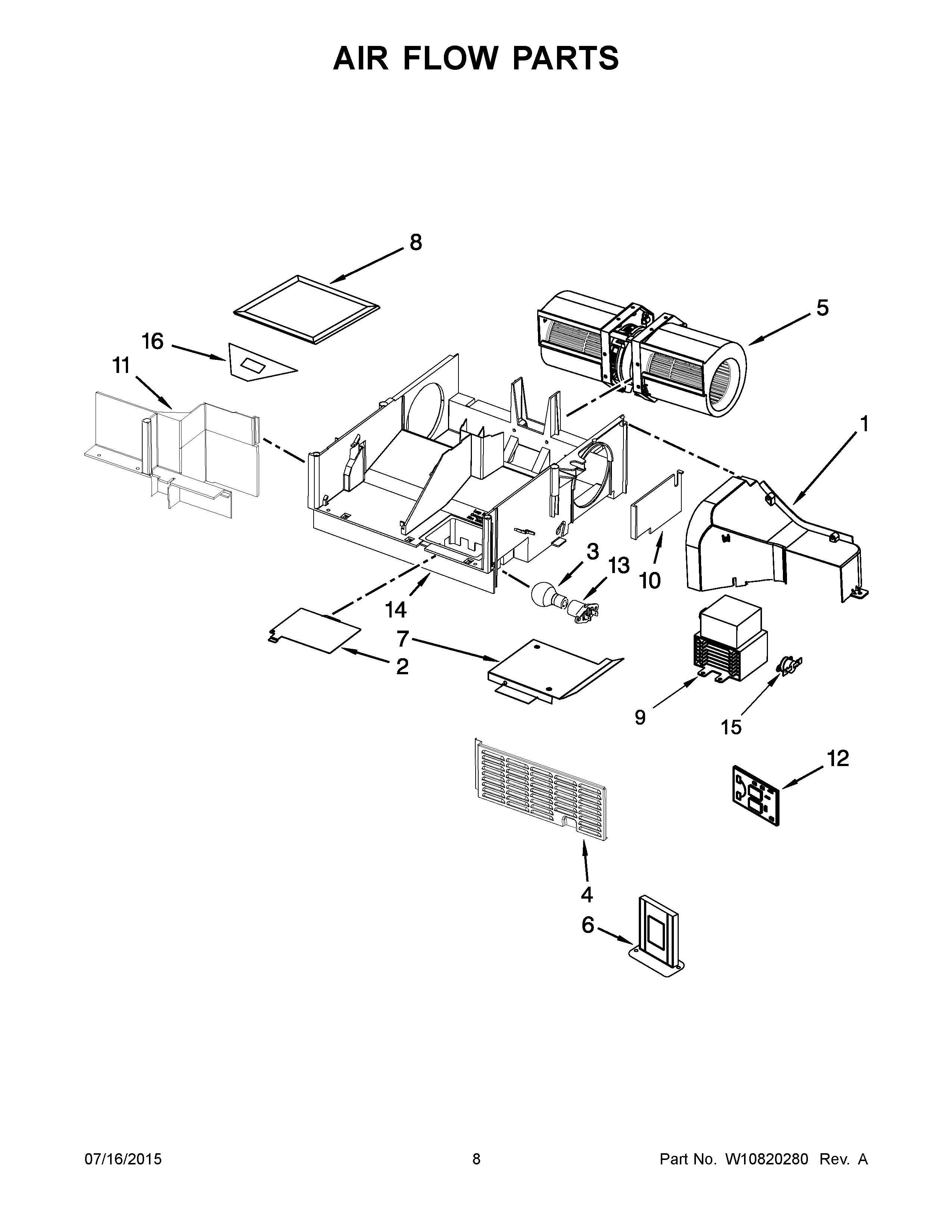

MMV1174DE2 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	SHIELD, FINGER
5	MAY W10755866
6	PLATE, WATERPROOF
7	MAY W10138797
8	MAY 8206230
9	MAGNETRON
10	COVER, RIGHT DUCT
11	MAY W10448769
12	MAY W10605455
13	MAY W10210878
14	MAY W10448773
15	MAY W10491433
16	MAY W10139750
