MMV1174DS3 07 – CABINET AND INSTALLATION PARTS

MMV1174DS3 07 – CABINET AND INSTALLATION PARTS

Written by

in

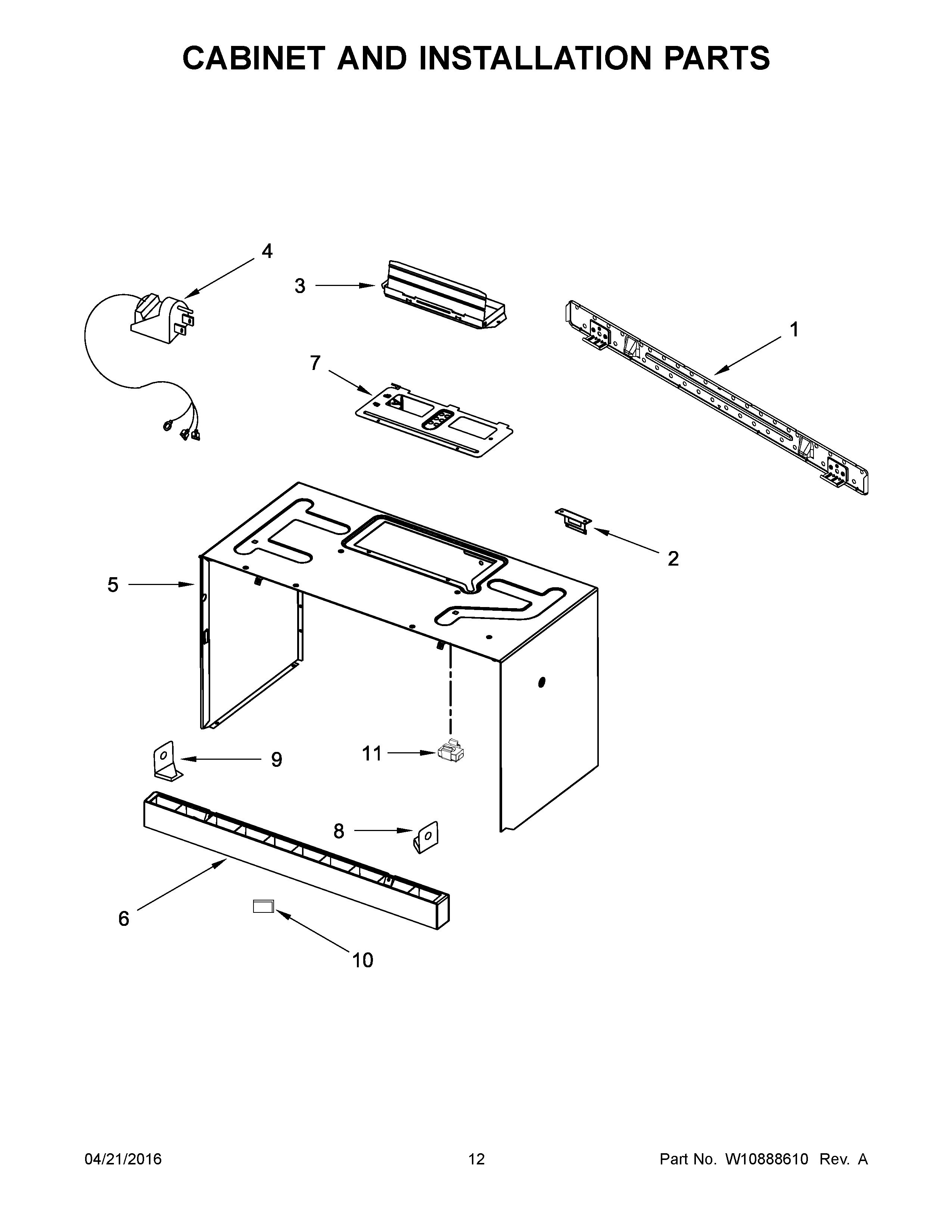

MMV1174DS3 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2MAY 8206385
3DAMPER
4CORD-POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6BMAY W10245218
6AMAY W10245217
6GRILLE, VENT (STAINLESS)
7MAY W10210832
8AHOLDER, VENT RIGHT SIDE (BLACK)
8HOLDER, VENT RIGHT SIDE (STAINLESS)
9AHOLDER, VENT LEFT SIDE (BLACK)
9HOLDER, VENT LEFT SIDE (STAINLESS)
10BADGE
11ASSEMBLY, MOUNTING NUT
