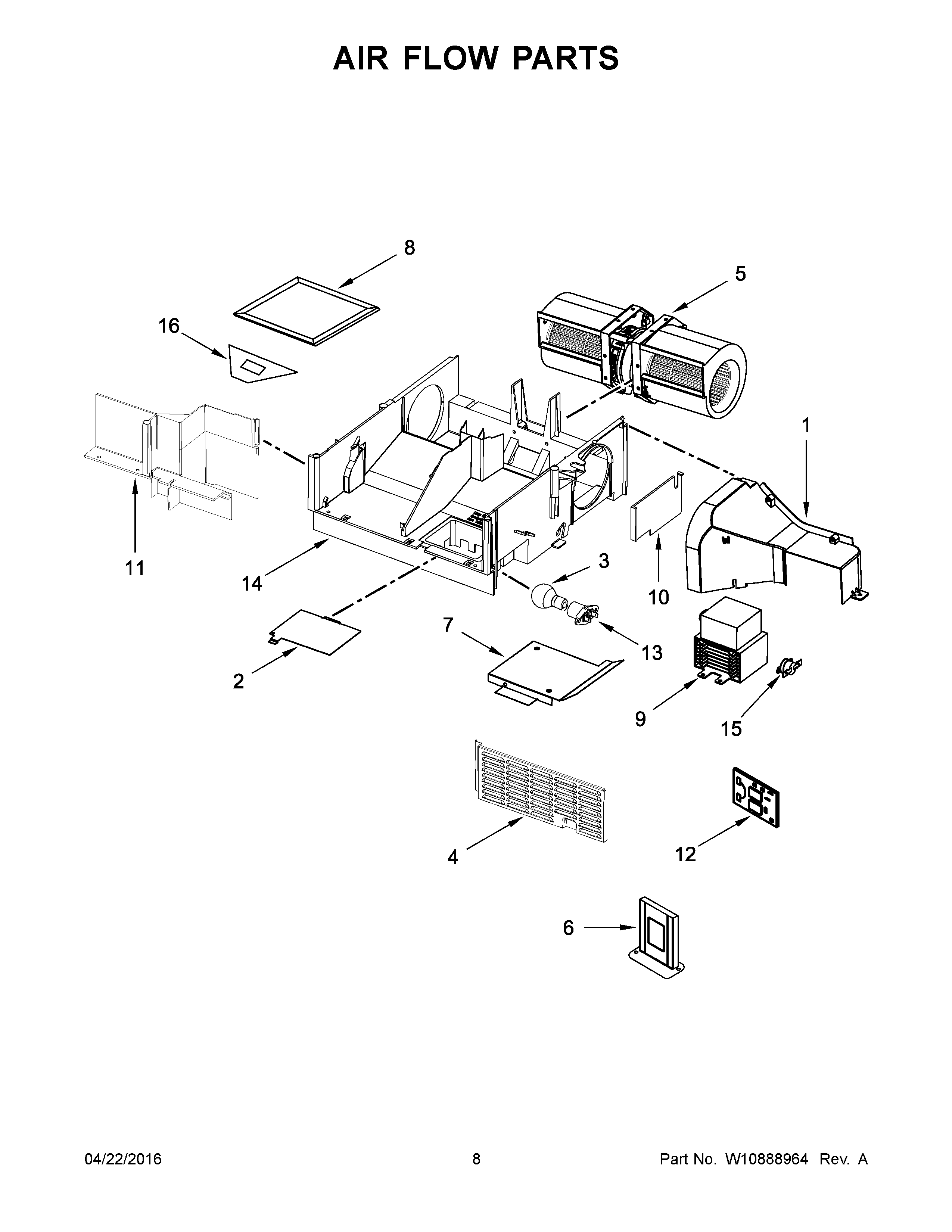

MMV1174DS4 05 – AIR FLOW PARTS

MMV1174DS4 05 – AIR FLOW PARTS

Written by

in

MMV1174DS4 05 – AIR FLOW PARTS

Products

PositionProduct
1DEFLECTOR, AIR
2MAY 8206382
3MAY 4393681
4SHIELD, FINGER
5MOTOR, HOOD FAN
6PLATE, WATERPROOF
7MAY W10138797
8MAY 8206230
9MAGNETRON
10COVER, RIGHT DUCT
11PLATE, AIR GUIDE SEALING
12MAY W10605455
13MAY W10210878
14PLATE, AIR GUIDE BASE
15MAY W10491433
16SOCKET, MOTOR WIRE
