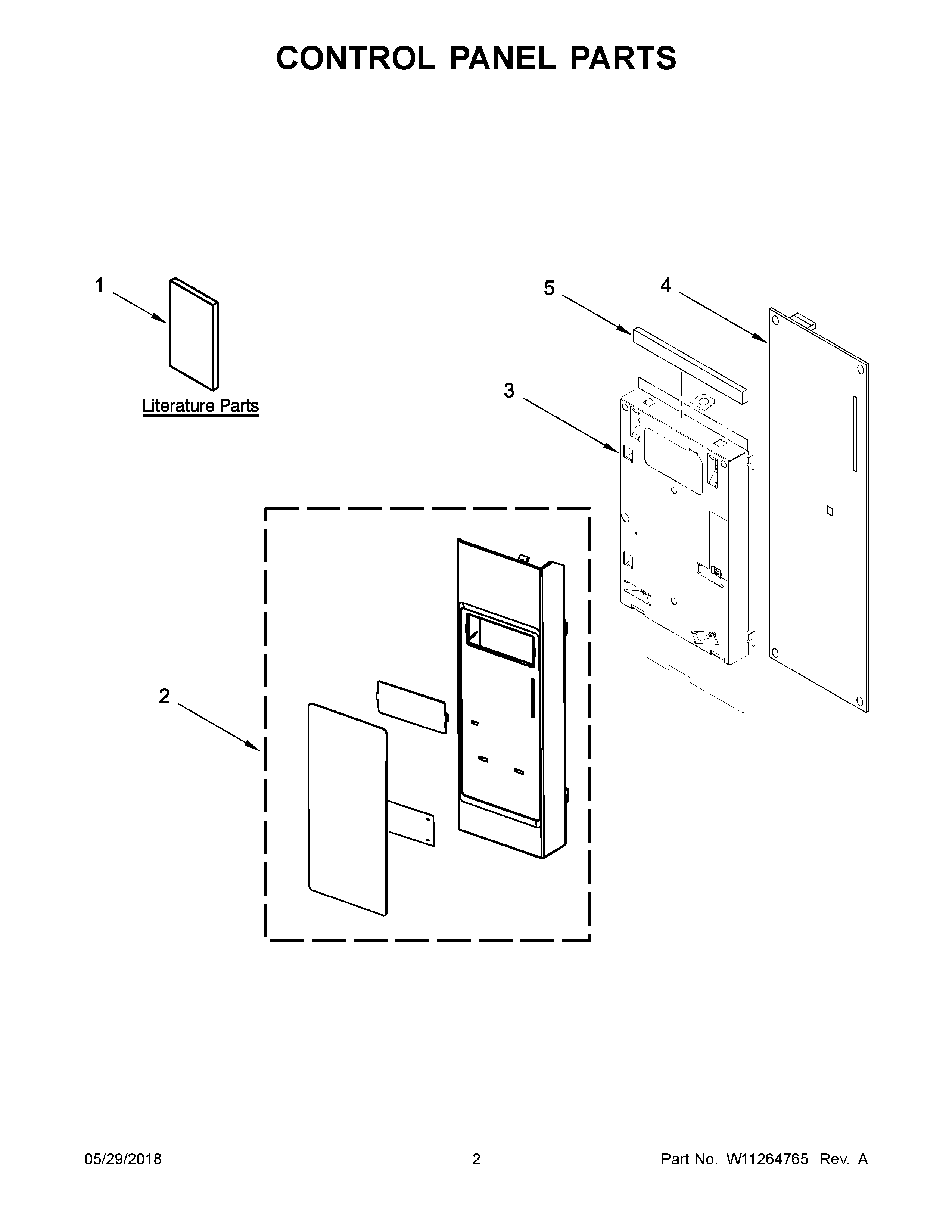

MMV1174FB2 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1C	TECH SHEET
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1B	COOK GUIDE LABEL
2B	ASSEMBLY, CONTROL BOX (STAINLESS)
2	ASSEMBLY, CONTROL BOX (WHITE)
2A	ASSEMBLY, CONTROL BOX (BLACK)
3	BACKER, CONTROL
4	MICROCOMPUTER
5	SEAL, CONTROL
