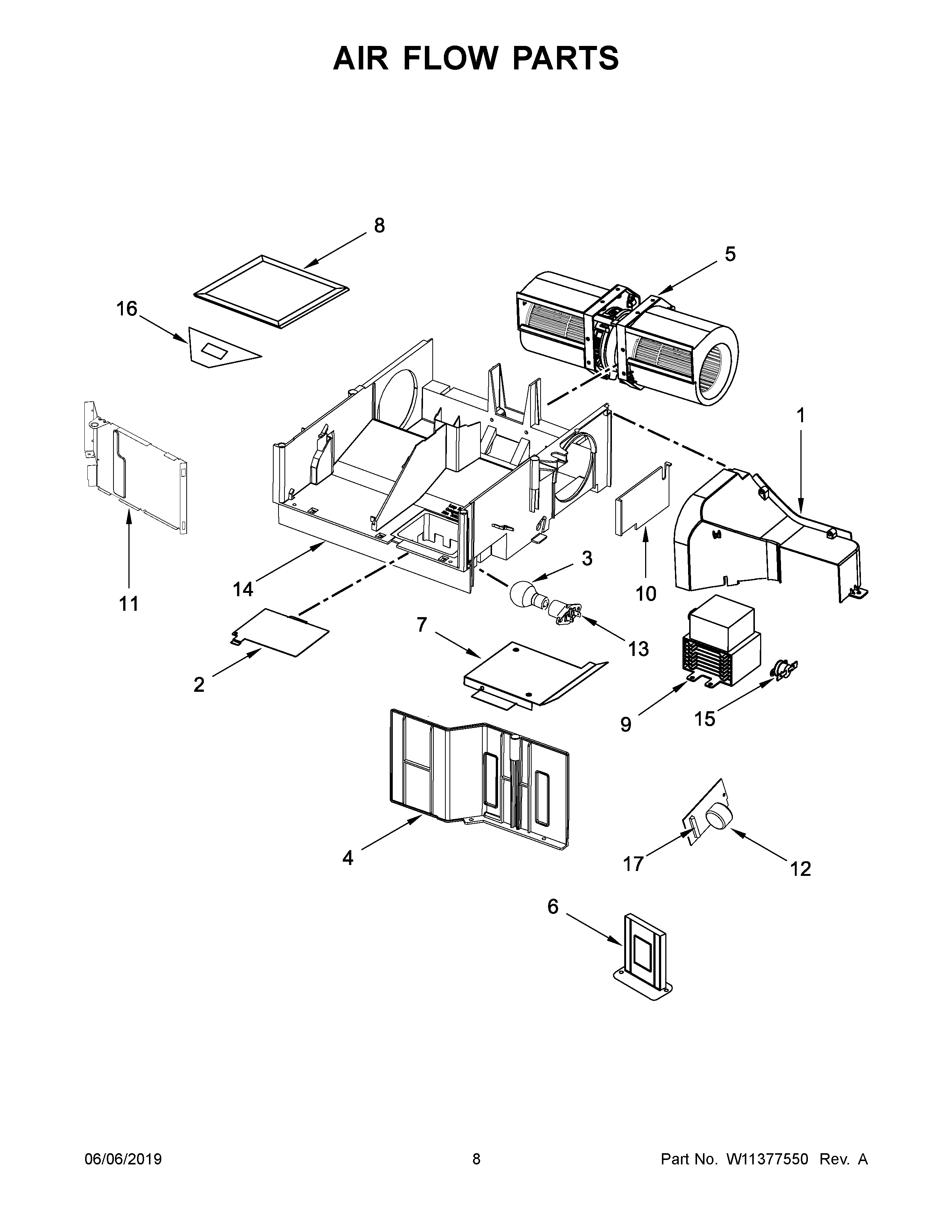

MMV1174FB3 05 – AIR FLOW PARTSadmin2025-04-26T13:05:35+00:00MMV1174FB3 05 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | DEFLECTOR, AIR |
| 2 | MAY 8206382 |
| 3 | MAY 4393681 |
| 4 | SHIELD, FINGER |
| 5 | MOTOR, HOOD FAN |
| 6 | PLATE, WATERPROOF |
| 7 | MAY W10138797 |
| 8 | FILTER, CHARCOAL |
| 9 | MAGNETRON |
| 10 | COVER, RIGHT DUCT |
| 11 | PLATE, AIR GUIDE SEALING |
| 12 | FILTER, NOISE |
| 13 | MAY W10210878 |
| 14 | BASEPLATE, AIR GUIDE |
| 15 | MAY W11224803 |
| 16 | SOCKET, MOTOR WIRE |
| 17 | MAY W10138793 |
