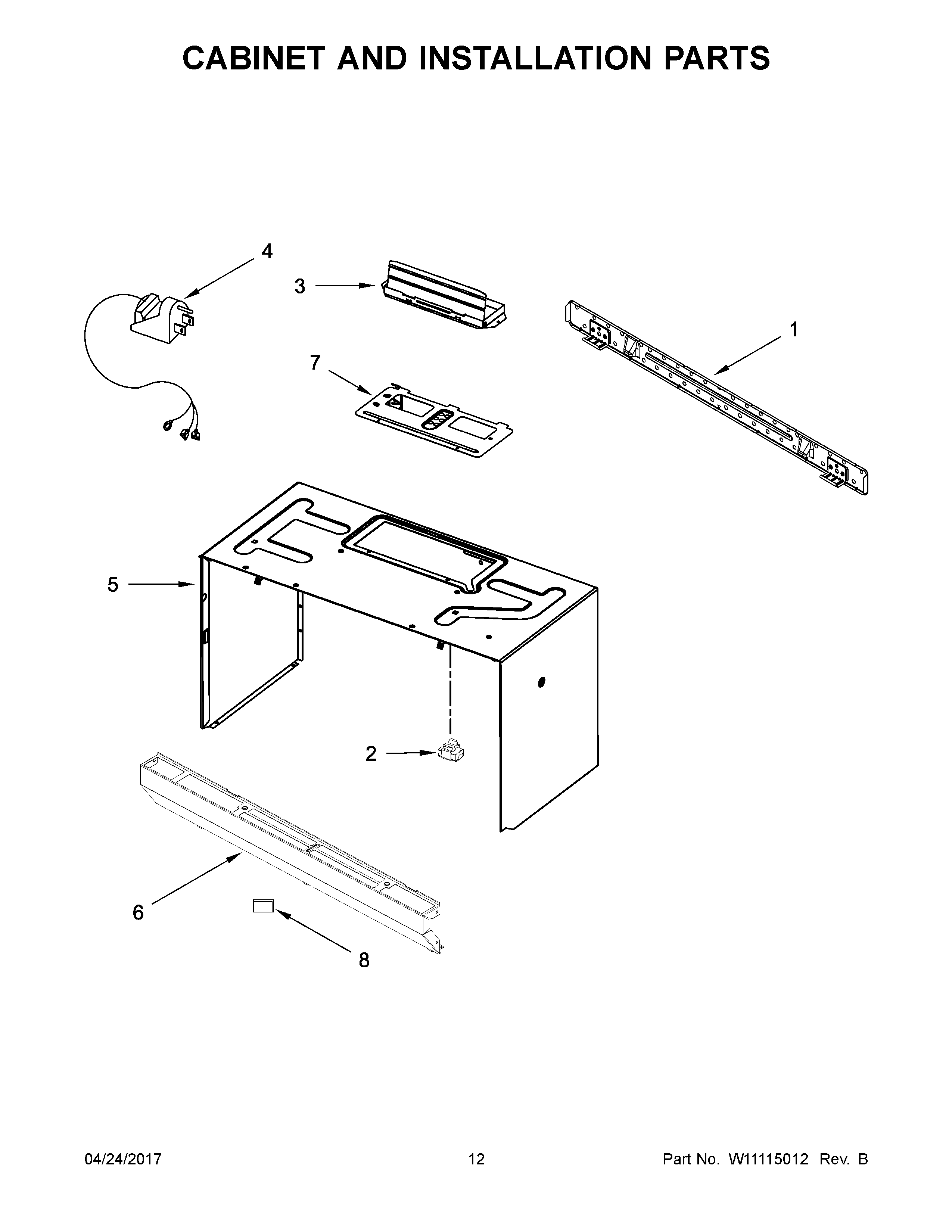

MMV1174FZ0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD-POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6AGRILLE, VENT (BLACK)
6GRILLE, VENT (WHITE)
7COVER, FAN MOTOR
8BADGE
