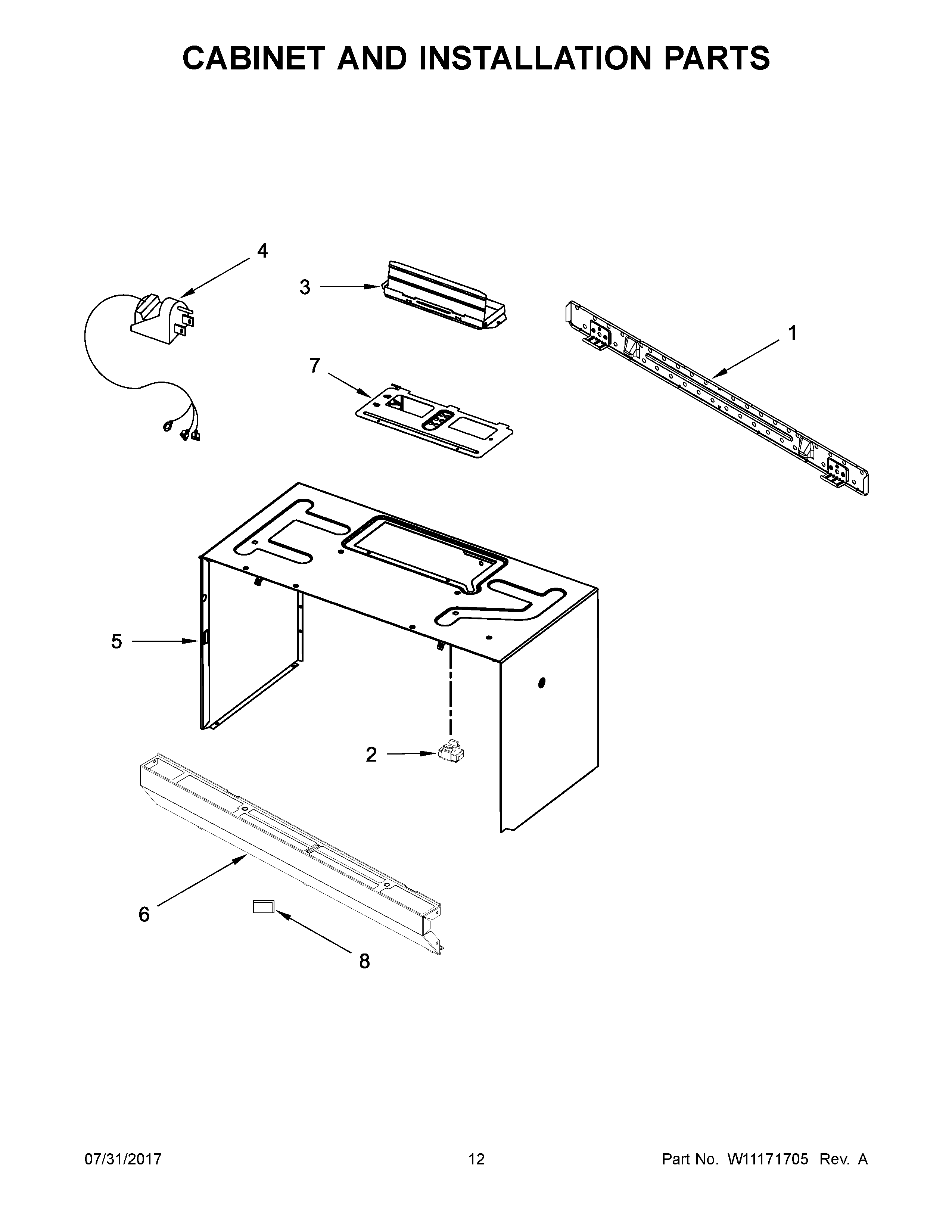

MMV1174FZ1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
1	PLATE, MOUNTING
2	ASSEMBLY, MOUNTING NUT
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (WHITE)
5A	CASE, OUTER (BLACK)
6A	GRILLE, VENT (BLACK)
6	GRILLE, VENT (WHITE)
7	COVER, FAN MOTOR
8	BADGE
