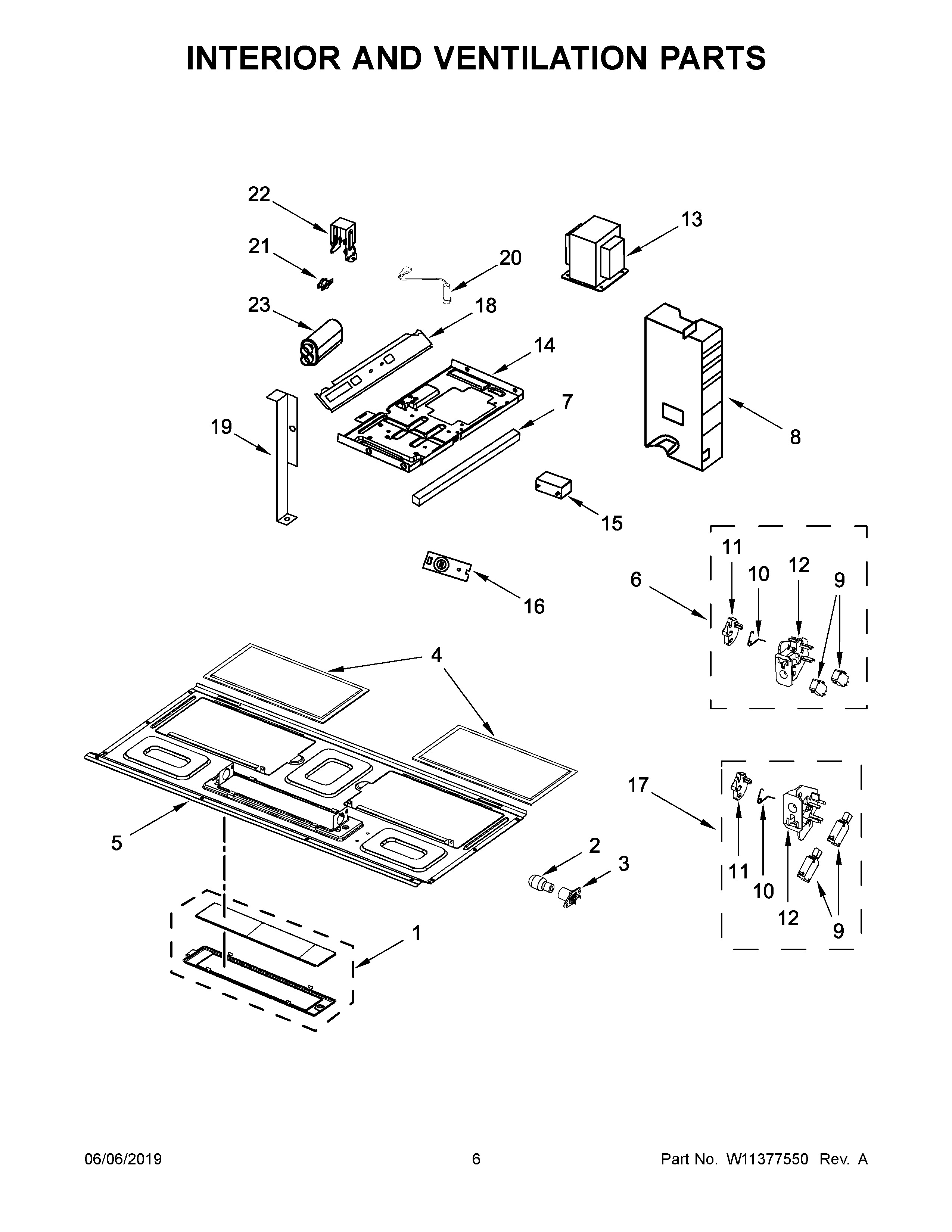

MMV1174FZ3 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1ASSEMBLY, LAMP GLASS AND HOLDER
2MAY 8206232
3MAY W10210871
4MAY W10208631
5MAY W10245196
6ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
7SEAL, COOLING
8AIR GUIDE, LOWER
9LINER (NOT A SERVICEABLE PART)
10MAY W10156812
11PLATE, CAM
12MAY 8206419
12AMAY W10156813
13TRANSFORMER, HIGH VOLTAGE
14CHASSIS
15CAPACITOR, HOOD MOTOR
16Thermistor (PCBA)
17ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
18SUPPORT, NTC
19BRACKET, TOP
20DIODE, HIGH VOLTAGE
21THERMOSTAT, CAVITY
22BRACKET, CAPACITOR
23CAPACITOR, HIGH VOLTAGE
