MMV1174FZ3 05 – AIR FLOW PARTS

MMV1174FZ3 05 – AIR FLOW PARTS

Written by

in

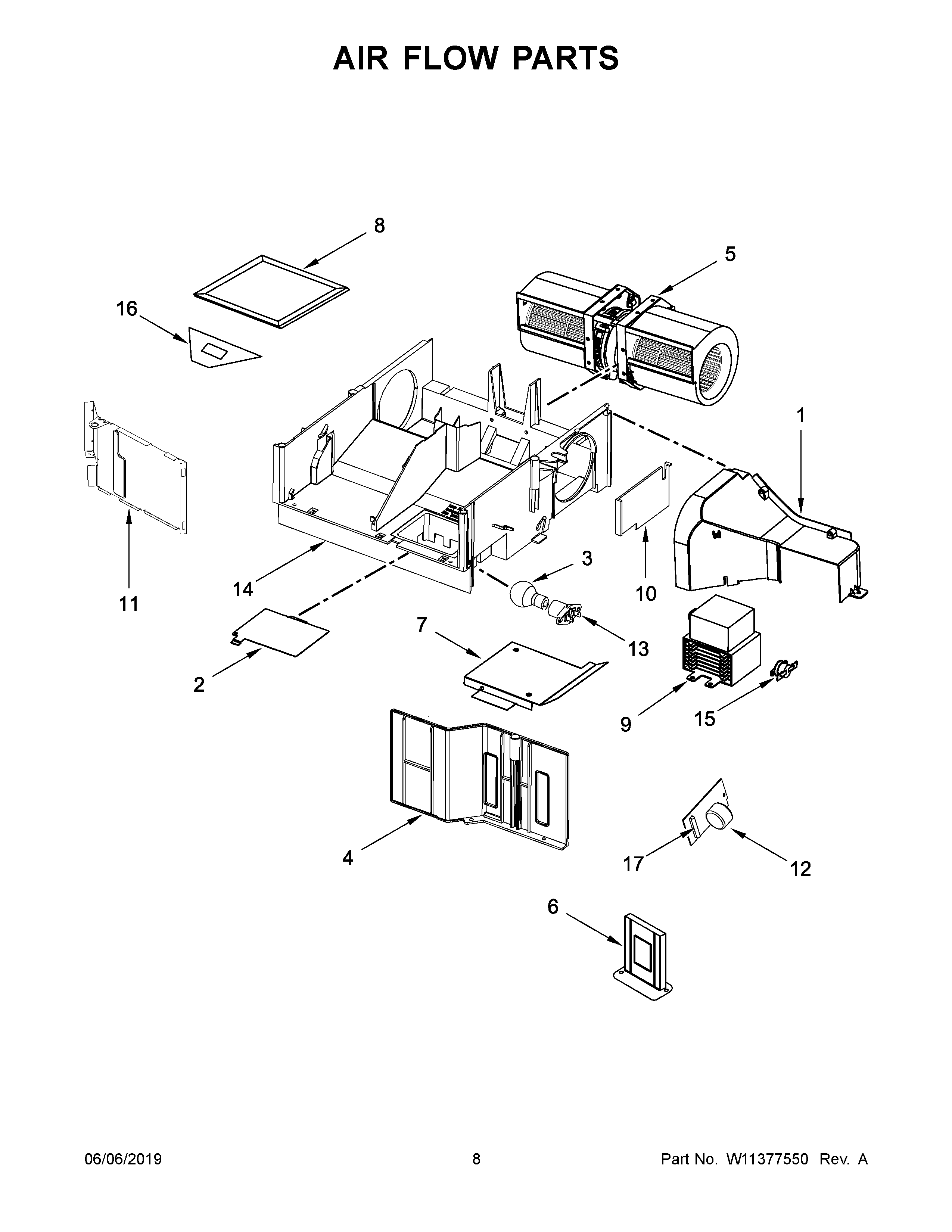

MMV1174FZ3 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	SHIELD, FINGER
5	MOTOR, HOOD FAN
6	PLATE, WATERPROOF
7	MAY W10138797
8	FILTER, CHARCOAL
9	MAGNETRON
10	COVER, RIGHT DUCT
11	PLATE, AIR GUIDE SEALING
12	FILTER, NOISE
13	MAY W10210878
14	BASEPLATE, AIR GUIDE
15	MAY W11224803
16	SOCKET, MOTOR WIRE
17	MAY W10138793
