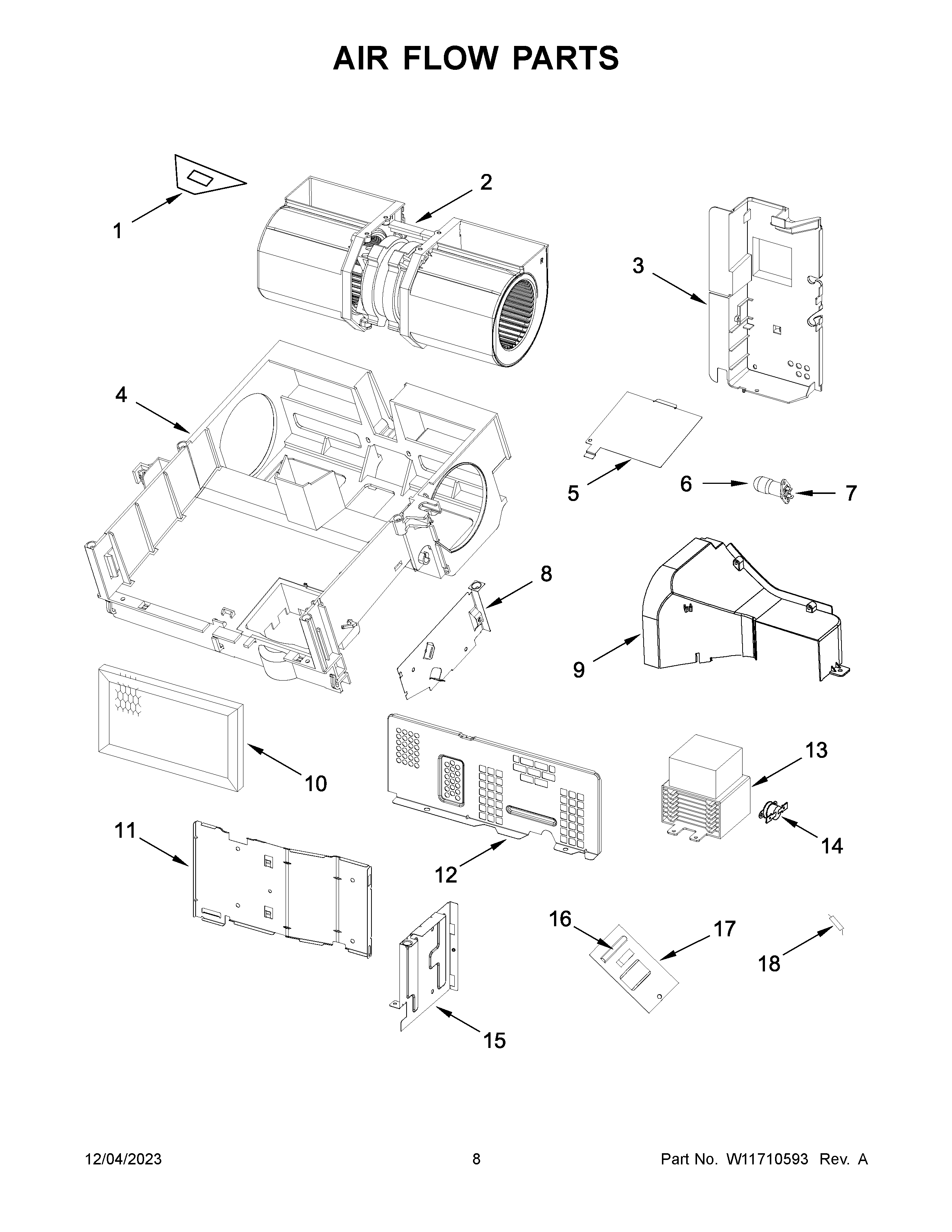

MMV1175JB01 05 – AIR FLOW PARTS

Products

Position	Product
1	W10810142 Whirlpool Relief Strain
2	W11441128 Whirlpool Microwave Fan Motor
3	AIR GUIDE, LOWER
4	W10828030 Whirlpool Microwave Air Duct
5	8206382 Whirlpool Microwave Light Cover
6	W11574182 Whirlpool Lamp Assembly
7	WPW10210878 Whirlpool Microwave LMP Housing
8	W11293488 Whirlpool Microwave Air Duct
9	W10471570 Whirlpool Microwave Deflector Assembly
10	W10892387 Whirlpool Microwave Charcoal Filter
11	PLATE, AIR GUIDE SEALING
12	W10342991 Whirlpool Microwave Side Cover
13	W11391712 Whirlpool Microwave Magnetron
14	W11679669 Whirlpool Fix Thermostat
15	W10138797 Whirlpool Microwave Duct Cover
16	FUSE-THRML
17	W10422269 Whirlpool Microwave Filter
18	W11256462 Whirlpool Microwave Diode
