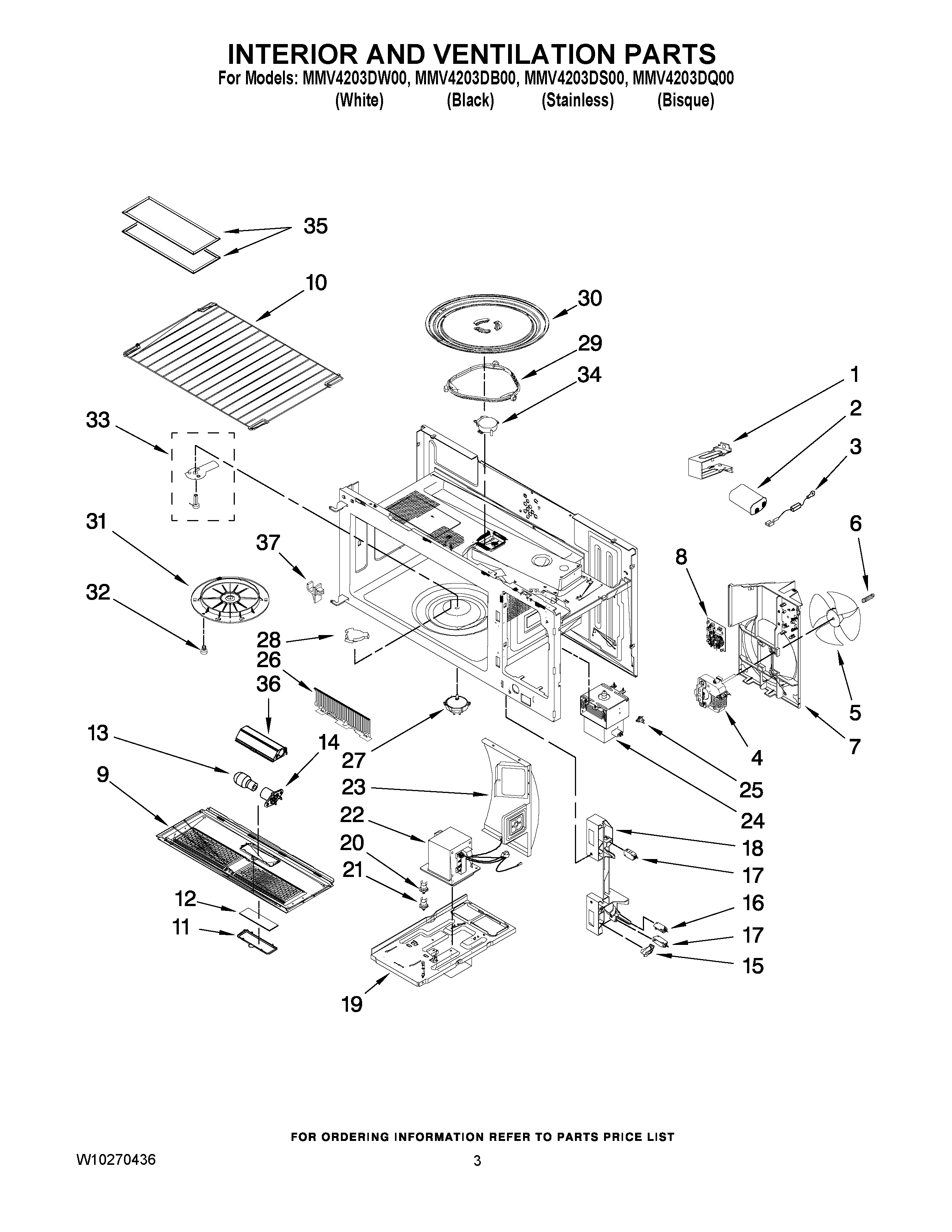

MMV4203DQ00 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY DE61-00115A
2	2501-001016 Samsung Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	MAY W10250841
5	BLADE, FAN
6	MAY W10260124
7	MAY W10197780
8	ASSY NOISE FILTER,SN-UF12B,250
9	MAY W10192477
9	MAY W10192097
10	MAY W10258237
11	COVER-GLASS COOKTOP
11	DE63-00137B Samsung Cover-Glass Cooktop
12	DE64-00911A Samsung Glass Cooktop Lamp
13	LAMP-INCANDESCENT
14	HOLDER-LAMP
15	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
16	MAY 3405-001033
17	WP3405-001034 Whirlpool Microwave Switch
18	LATCH-BODY,MODULAR-2,PP,-,-,-,
19	MAY W10187747
21	DE47-20034A Samsung Microwave Thermostat
22	MAY W10250839
23	MAY W10197689
24	WPW10126786 Whirlpool Microwave Magnetron
25	DE47-20007A Samsung Microwave Oven Thermostat
26	MAY W10197680
27	MOTOR, DRIVE
28	DE67-00213A Samsung Coupler
29	DE97-00637A Samsung Microwave Oven Turntable Guide Roller Support Assembly
30	DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
31	COVER-STIRRER
32	MAY DE66-20095B
33	MAY W10250840
35	DE63-00196A Samsung Aluminum Air Filter
36	MAY DE61-00407A
37	DE61-00375A Samsung Holder Rack
