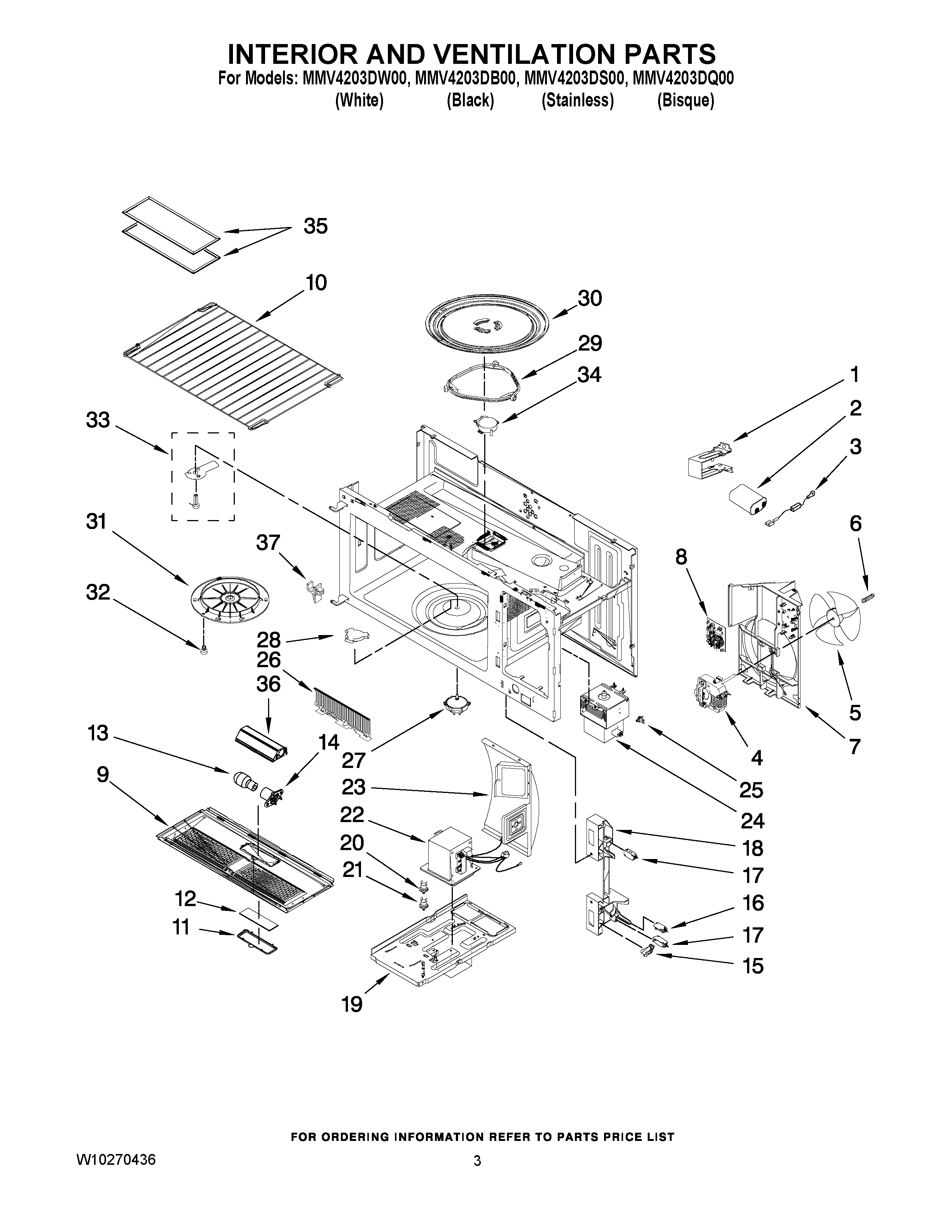

MMV4203DS00 03 – INTERIOR AND VENTILATION PARTS

MMV4203DS00 03 – INTERIOR AND VENTILATION PARTS

Written by

in

MMV4203DS00 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY DE61-00115A
22501-001016 Samsung Capacitor
3DE91-70063D Samsung Oven Microwave High Voltage Diode
4MAY W10250841
5BLADE, FAN
6MAY W10260124
7MAY W10197780
8ASSY NOISE FILTER,SN-UF12B,250
9MAY W10192477
9MAY W10192097
10MAY W10258237
11COVER-GLASS COOKTOP
11DE63-00137B Samsung Cover-Glass Cooktop
12DE64-00911A Samsung Glass Cooktop Lamp
13LAMP-INCANDESCENT
14HOLDER-LAMP
15DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
16MAY 3405-001033
17WP3405-001034 Whirlpool Microwave Switch
18LATCH-BODY,MODULAR-2,PP,-,-,-,
19MAY W10187747
21DE47-20034A Samsung Microwave Thermostat
22MAY W10250839
23MAY W10197689
24WPW10126786 Whirlpool Microwave Magnetron
25DE47-20007A Samsung Microwave Oven Thermostat
26MAY W10197680
27MOTOR, DRIVE
28DE67-00213A Samsung Coupler
29DE97-00637A Samsung Microwave Oven Turntable Guide Roller Support Assembly
30DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
31COVER-STIRRER
32MAY DE66-20095B
33MAY W10250840
35DE63-00196A Samsung Aluminum Air Filter
36MAY DE61-00407A
37DE61-00375A Samsung Holder Rack
