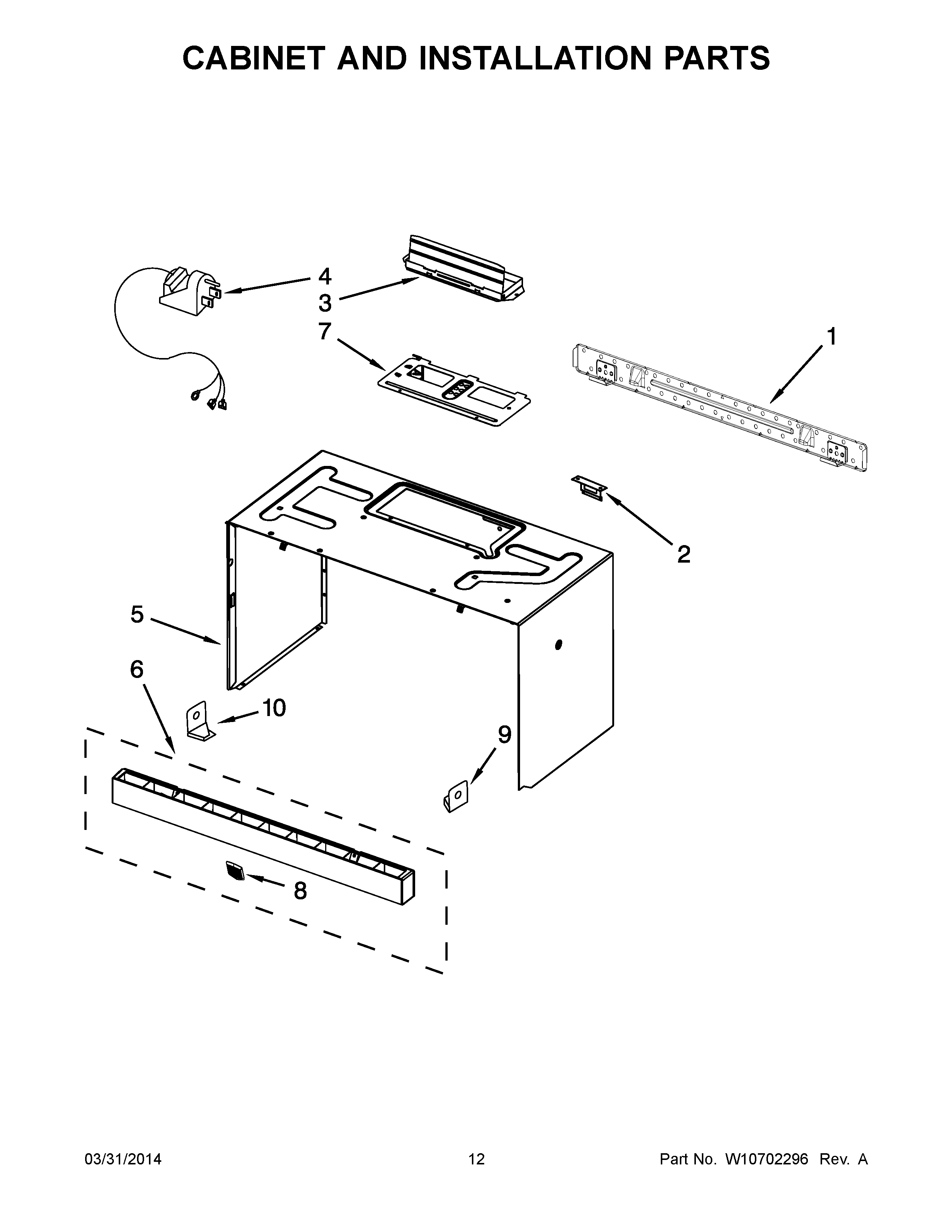

MMV4203WB3 07 – CABINET AND INSTALLATION PARTS

MMV4203WB3 07 – CABINET AND INSTALLATION PARTS

Written by

in

MMV4203WB3 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10553852
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMAY W10556400
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMAY 8205948
1PLATE, MOUNTING
2MAY 8206385
3MAY 8206442
4CORD-POWER
5MAY W10462001
5MAY W10462003
5CASE, OUTER (BISQUE)
6MAY W10527310
6MAY W10527308
6MAY W10259232
6MAY W10527311
7BADGE
7QUICK REFERENCE GUIDE
7MAY W10210832
9VENT GRID HOLDER, RIGHT SIDE (WHITE)
9VENT GRID HOLDER, RIGHT SIDE (BLACK)
10VENT GRID HOLDER, LEFT SIDE (BLACK)
10VENT GRID HOLDER, LEFT SIDE (WHITE)
