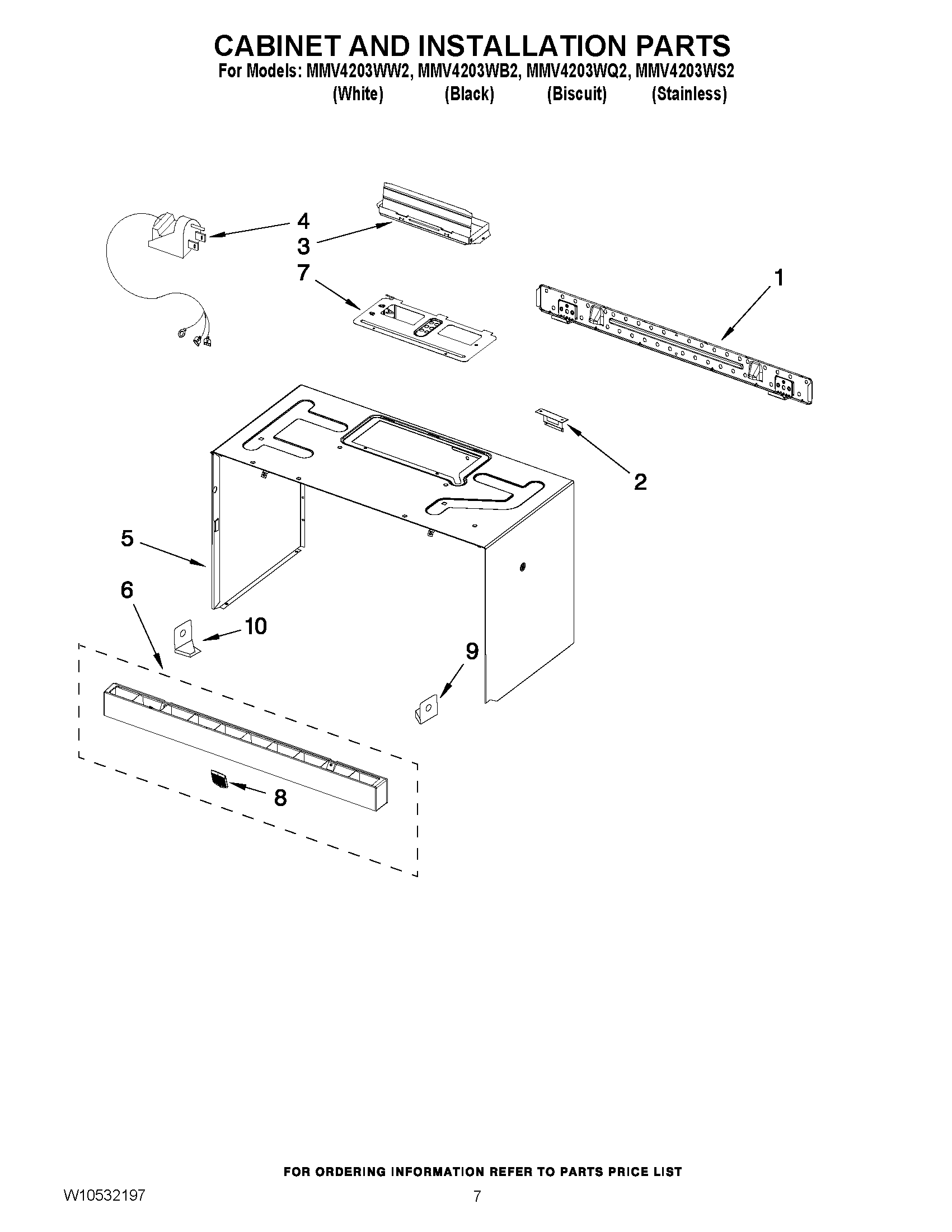

MMV4203WQ2 06 – CABINET AND INSTALLATION PARTS

MMV4203WQ2 06 – CABINET AND INSTALLATION PARTS

Written by

in

MMV4203WQ2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAIN HARNESS
NIMAY W10245226
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMAY 8205948
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
1PLATE, MOUNTING
2MAY 8206385
3MAY 8206442
4MAY W10269470
5MAY W10462001
5MAY W10462003
5CASE, OUTER (BISQUE)
6MAY W10527311
6MAY W10527310
6MAY W10527308
6MAY W10259232
7MAY W10210832
8QUICK REFERENCE GUIDE
8BADGE
9VENT GRID HOLDER, RIGHT SIDE (WHITE)
9VENT GRID HOLDER, RIGHT SIDE (BLACK)
10VENT GRID HOLDER, LEFT SIDE (WHITE)
10VENT GRID HOLDER, LEFT SIDE (BLACK)
