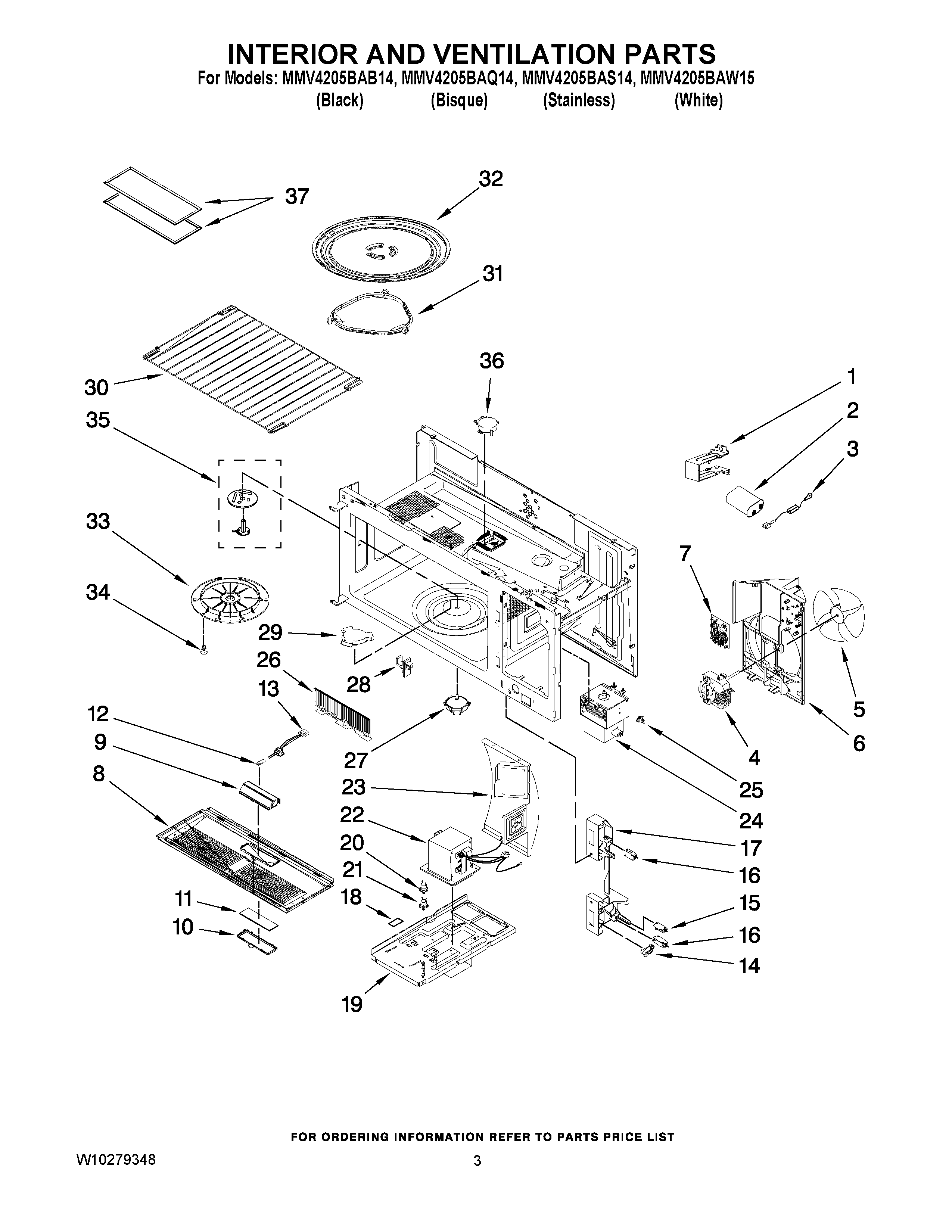

MMV4205BAB14 03 – INTERIOR AND VENTILATION PARTS

MMV4205BAB14 03 – INTERIOR AND VENTILATION PARTS

Written by

in

MMV4205BAB14 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY DE61-00115A
22501-001016 Samsung Capacitor
3DE91-70063D Samsung Oven Microwave High Voltage Diode
4MAY W10250841
5BLADE, FAN
6MAY W10197780
7ASSY NOISE FILTER,SN-UF12B,250
8MAY W10192097
8MAY W10192477
9MAY DE61-00407A
10DE63-00137B Samsung Cover-Glass Cooktop
10COVER-GLASS COOKTOP
11DE64-00911A Samsung Glass Cooktop Lamp
12LAMP-INCANDESCENT
13HOLDER-LAMP
14DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15MAY 3405-001033
16WP3405-001034 Whirlpool Microwave Switch
17LATCH-BODY,MODULAR-2,PP,-,-,-,
18CUSHION-SPONGE
19MAY W10187747
21DE47-20034A Samsung Microwave Thermostat
22MAY W10250839
23MAY W10197689
24WPW10126786 Whirlpool Microwave Magnetron
25DE47-20007A Samsung Microwave Oven Thermostat
26MAY W10197680
28DE61-00375A Samsung Holder Rack
29DE67-00213A Samsung Coupler
30MAY W10258237
31DE97-00637A Samsung Microwave Oven Turntable Guide Roller Support Assembly
32DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
33MAY W10258285
34MAY DE66-20095B
35MAY W10250840
37DE63-00196A Samsung Aluminum Air Filter
