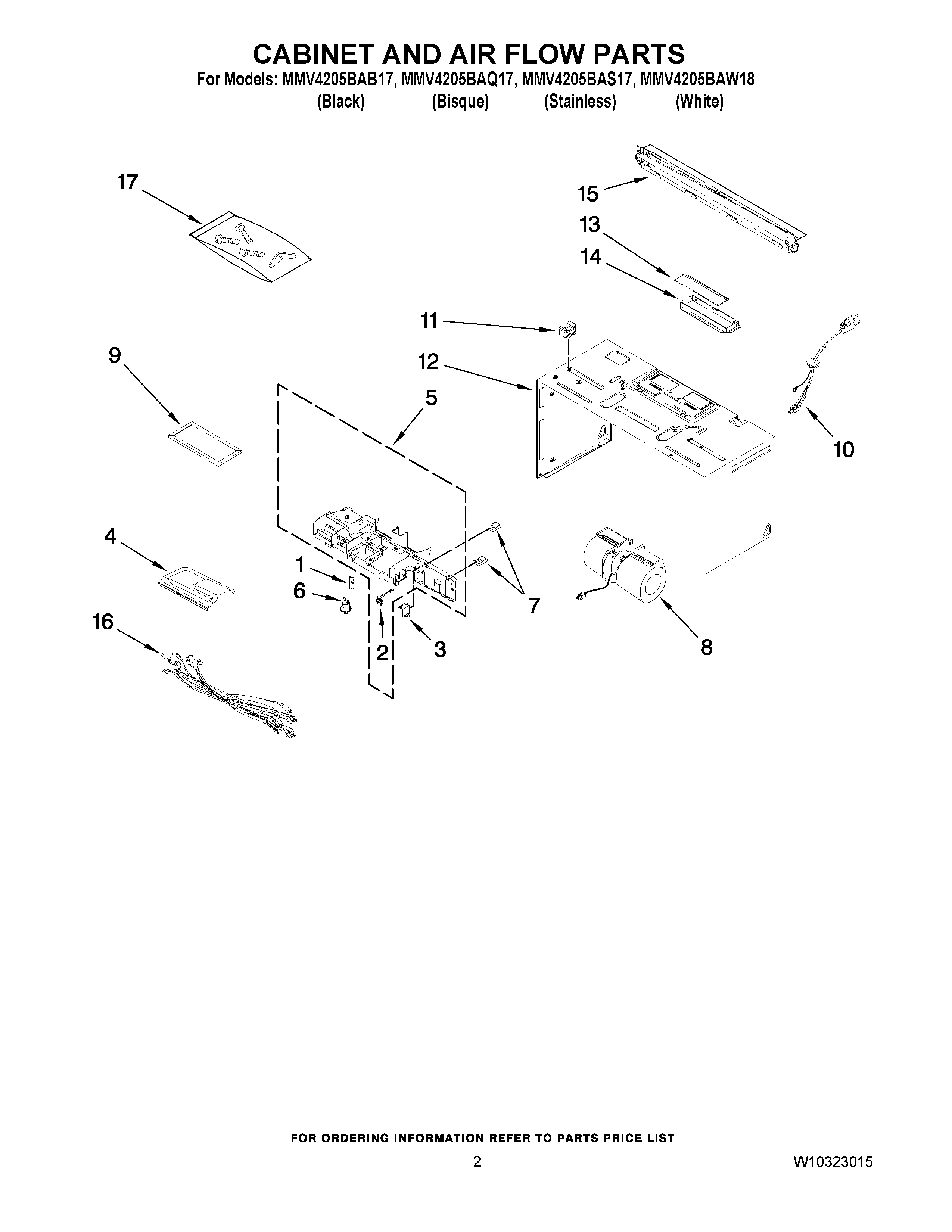

MMV4205BAB17 02 – CABINET AND AIR FLOW PARTS

MMV4205BAB17 02 – CABINET AND AIR FLOW PARTS

Written by

in

MMV4205BAB17 02 – CABINET AND AIR FLOW PARTS

Products

PositionProduct
NIMAY DE68-03144B
NIMAY W10197644
1LAMP-INCANDESCENT
2HOLDER-LAMP
3MAY DE59-50002A
4MAY W10197628
5MAY W10258160
7MAY DE60-30063A
8Motor, Fan Assy
9DE63-00367H Samsung Charcoal Filter
10DE96-00218A Samsung Assembly Power Cord
11DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
12MAY W10192096
12Case, Outer (Black)
12MAY W10199858
13MAY W10197773
14MAY DE72-40022A
15DE70-00561A Samsung Microwave Mounting Plate Bracket
16MAIN HARNESS
17DE92-90505E Samsung Hardware Assembly
