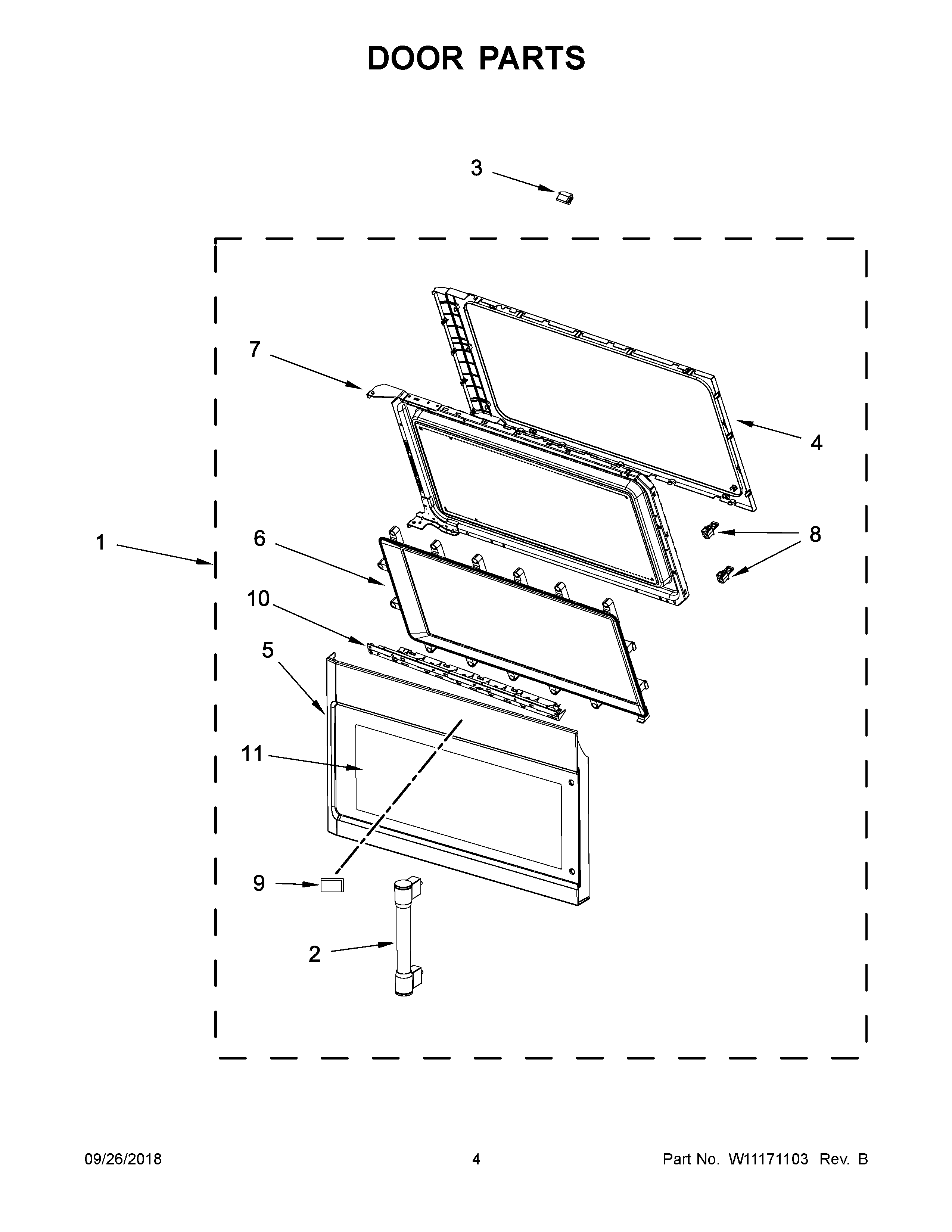

MMV4205DB3 03 – DOOR PARTSadmin2025-04-26T13:06:38+00:00MMV4205DB3 03 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, COMPLETE (WHITE) |
| 1C | DOOR, COMPLETE (WHITE ICE) |
| 1B | DOOR, COMPLETE (STAINLESS) |
| 1A | DOOR, COMPLETE (BLACK) |
| 1D | DOOR, COMPLETE (BLACK ICE) |
| 2C | HANDLE (WHITE ICE) |
| 2 | HANDLE (WHITE) |
| 2A | HANDLE (BLACK) |
| 2B | HANDLE (STAINLESS & BLACK ICE MODELS) |
| 3 | STOPPER, DOOR |
| 4 | FRAME, INNER |
| 5B | ASSEMBLY, DOOR FRAME (STAINLESS) |
| 5A | ASSEMBLY, DOOR FRAME (BLACK) |
| 5 | ASSEMBLY, DOOR FRAME (WHITE) |
| 6 | PLATE, STEAM PROTECTION |
| 7 | FOIL, DOOR |
| 8 | MAY W10489272 |
| 9 | BADGE |
| 10A | TRIM, DOOR (BLACK) |
| 10 | TRIM, DOOR (WHITE) |
| 11 | ASSEMBLY, DOOR GLASS (WHITE) |
| 11A | ASSEMBLY, DOOR GLASS (BLACK) |
| 11B | ASSEMBLY, DOOR GLASS (STAINLESS) |
