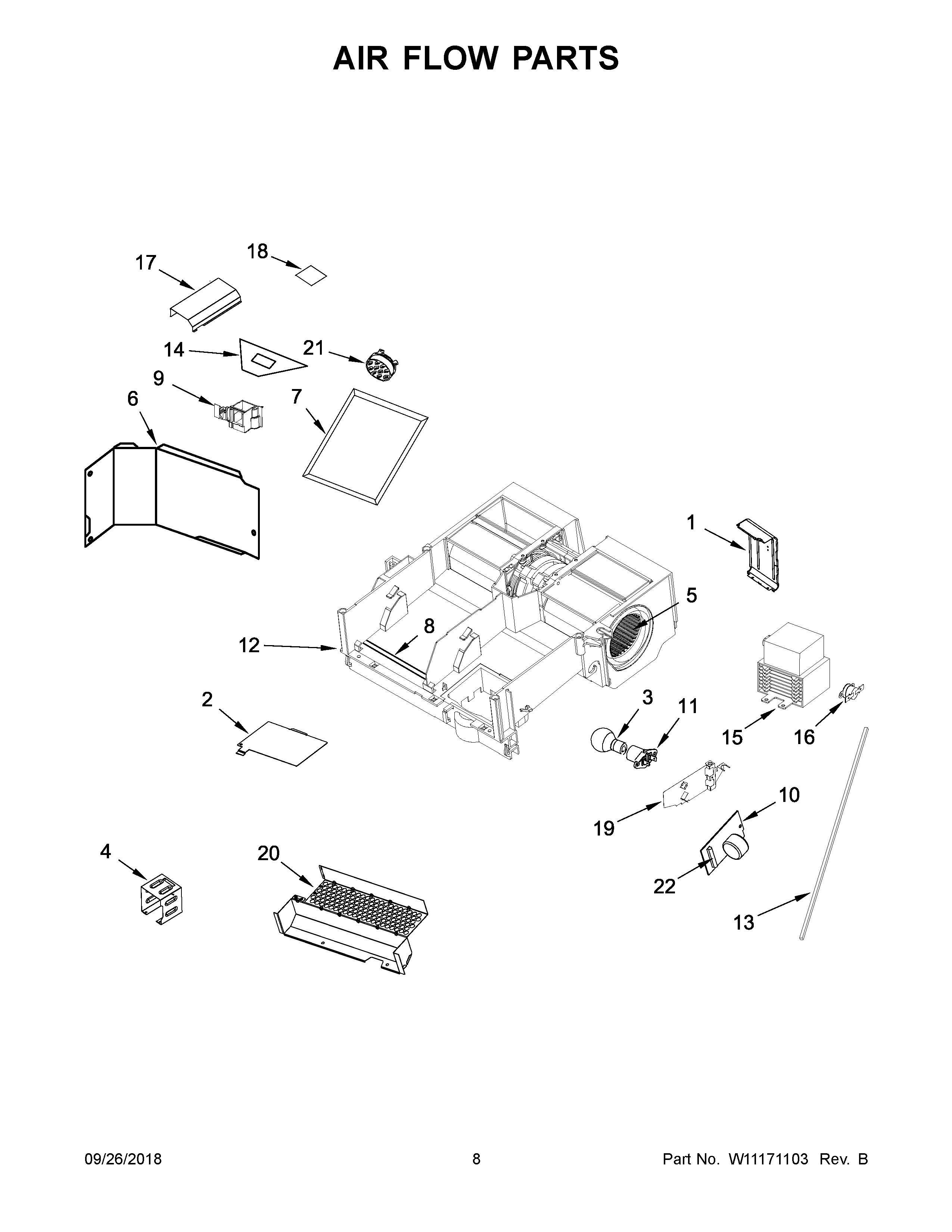

MMV4205DB3 05 – AIR FLOW PARTSadmin2025-04-26T13:05:36+00:00MMV4205DB3 05 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | DEFLECTOR, AIR |
| 2 | MAY 8206382 |
| 3 | MAY 4393681 |
| 4 | MAY W10556824 |
| 5 | MOTOR, FAN |
| 6 | PLATE, AIR DEFLECTOR |
| 7 | MAY 8206230 |
| 8 | SEAL, AIR GUIDE |
| 9 | OUTLET, CAVITY (FRONT) (FOR WHITE MODELS) |
| 9A | OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS) |
| 10 | MAY W10531156 |
| 11 | MAY W10210878 |
| 12 | BASEPLATE, AIR GUIDE |
| 13 | MAY W10571180 |
| 14 | SOCKET, MOTOR WIRE |
| 15 | MAGNETRON |
| 16 | THERMOSTAT, MAGNETRON |
| 17 | OUTLET, CAVITY (BACK) |
| 18 | MAY W10531724 |
| 19 | COVER, DUCT (RIGHT) |
| 20 | MAY W10629803 |
| 21 | MAY W10557536 |
| 22 | MAY W10138793 |
