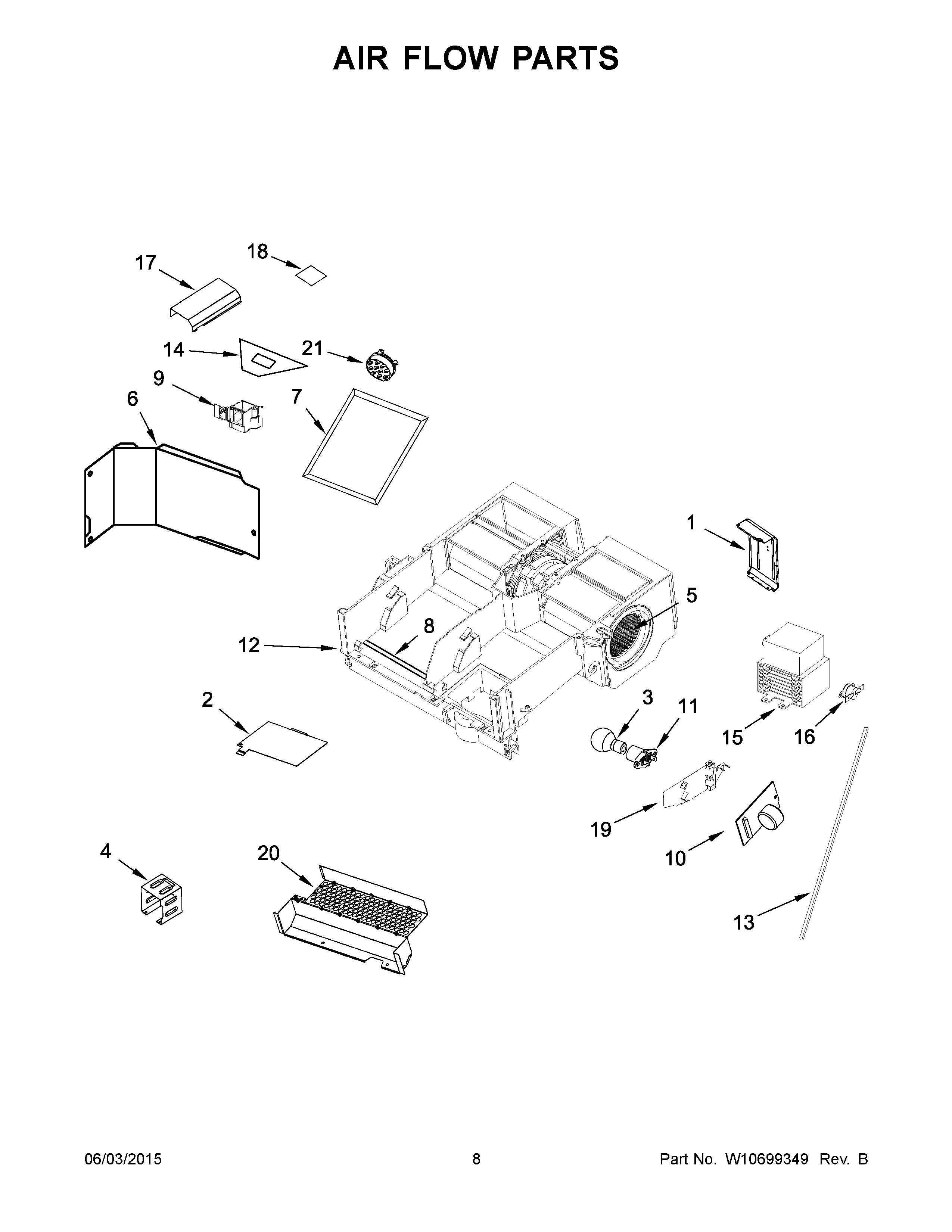

MMV4205DE0 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	MAY W10556824
5	MAY W10479847
6	MAY W10533116
7	MAY 8206230
8	SEAL, AIR GUIDE
9A	OUTLET, CAVITY (FRONT) (FOR BLACK, STAINLESS & BLACK ICE MODELS)
9	OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS)
10	MAY W10531156
11	MAY W10210878
12	MAY W10533096
13	MAY W10571180
14	MAY W10139750
15	MAY W10626122
16	MAY W10654514
17	OUTLET, CAVITY (BACK)
18	MAY W10531724
19	MAY W10533484
20	MAY W10629803
21	MAY W10557536
