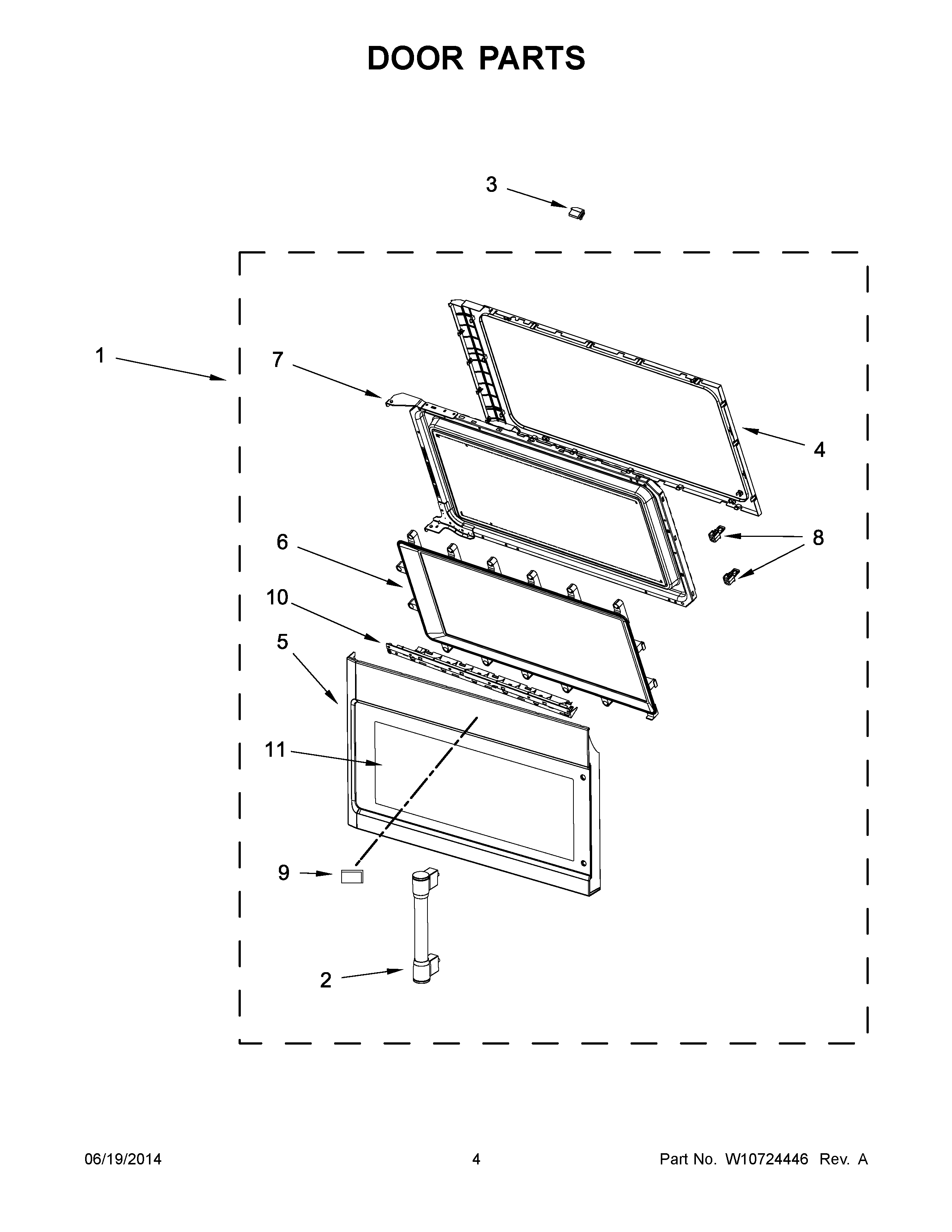

MMV4205DE1 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (BLACK ICE)
1DOOR, COMPLETE (WHITE)
1DOOR, COMPLETE (BLACK)
1DOOR, COMPLETE (STAINLESS)
1DOOR, COMPLETE (WHITE ICE)
2HANDLE (WHITE ICE)
2HANDLE (BLACK)
2HANDLE (WHITE)
2HANDLE (STAINLESS & BLACK ICE MODELS)
3STOPPER, DOOR
4FRAME, INNER
5ASSEMBLY, DOOR FRAME (WHITE)
5ASSEMBLY, DOOR FRAME (BLACK)
5ASSEMBLY, DOOR FRAME (STAINLESS)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10TRIM, DOOR (WHITE)
10TRIM, DOOR (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
11ASSEMBLY, DOOR GLASS (BLACK)
11ASSEMBLY, DOOR GLASS (STAINLESS)
