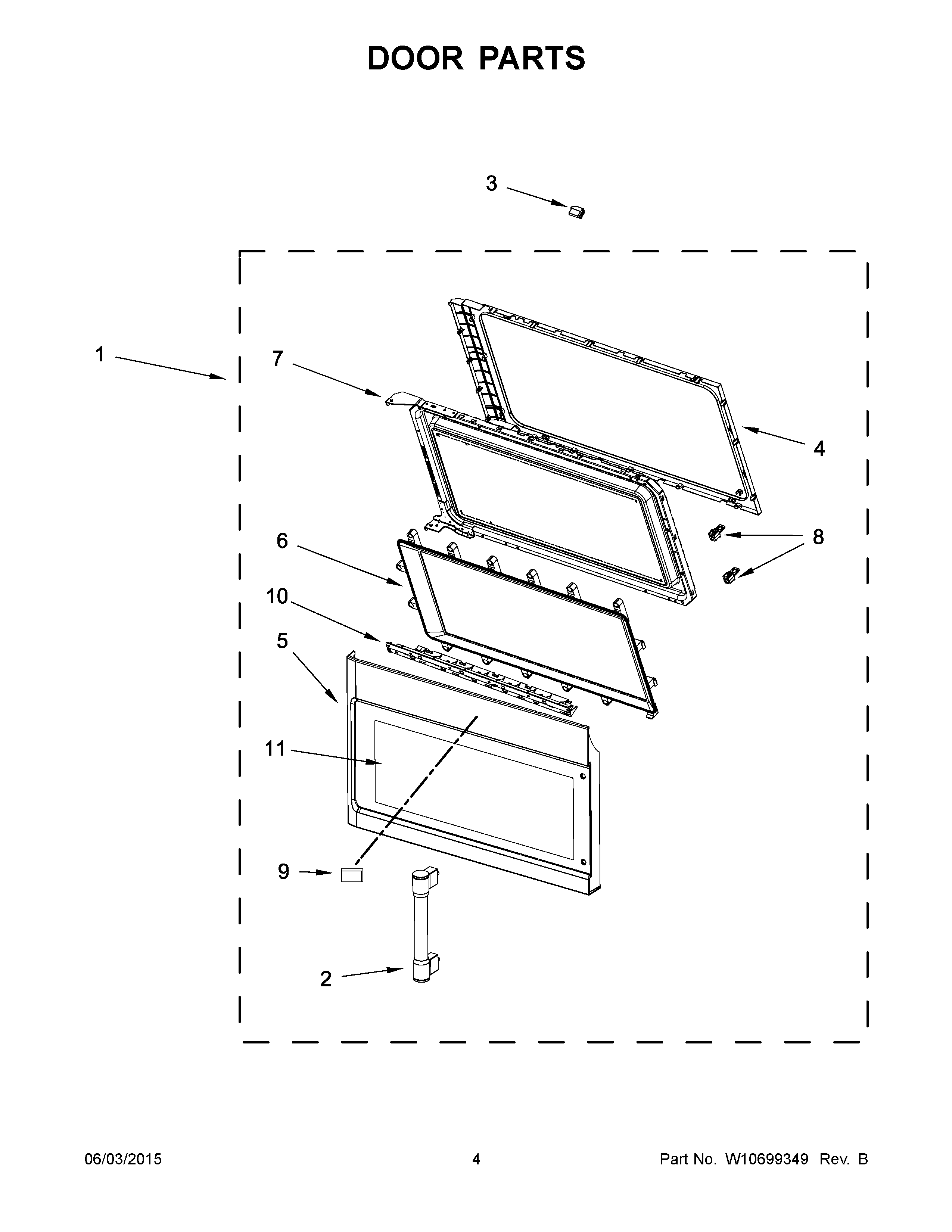

MMV4205DH0 03 – DOOR PARTS

MMV4205DH0 03 – DOOR PARTS

Written by

in

MMV4205DH0 03 – DOOR PARTS

Products

PositionProduct
1ADOOR, COMPLETE (BLACK)
1DDOOR, COMPLETE (BLACK ICE)
1CDOOR, COMPLETE (WHITE ICE)
1DOOR, COMPLETE (WHITE)
1BDOOR, COMPLETE (STAINLESS)
2MAY W10646733
2BMAY W10646732
2AMAY W10646734
3STOPPER, DOOR
4FRAME, INNER
5BASSEMBLY, DOOR FRAME (STAINLESS)
5AASSEMBLY, DOOR FRAME (BLACK)
5ASSEMBLY, DOOR FRAME (WHITE)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10ATRIM, DOOR (BLACK)
10TRIM, DOOR (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
11BASSEMBLY, DOOR GLASS (STAINLESS)
11ASSEMBLY, DOOR GLASS (WHITE)
