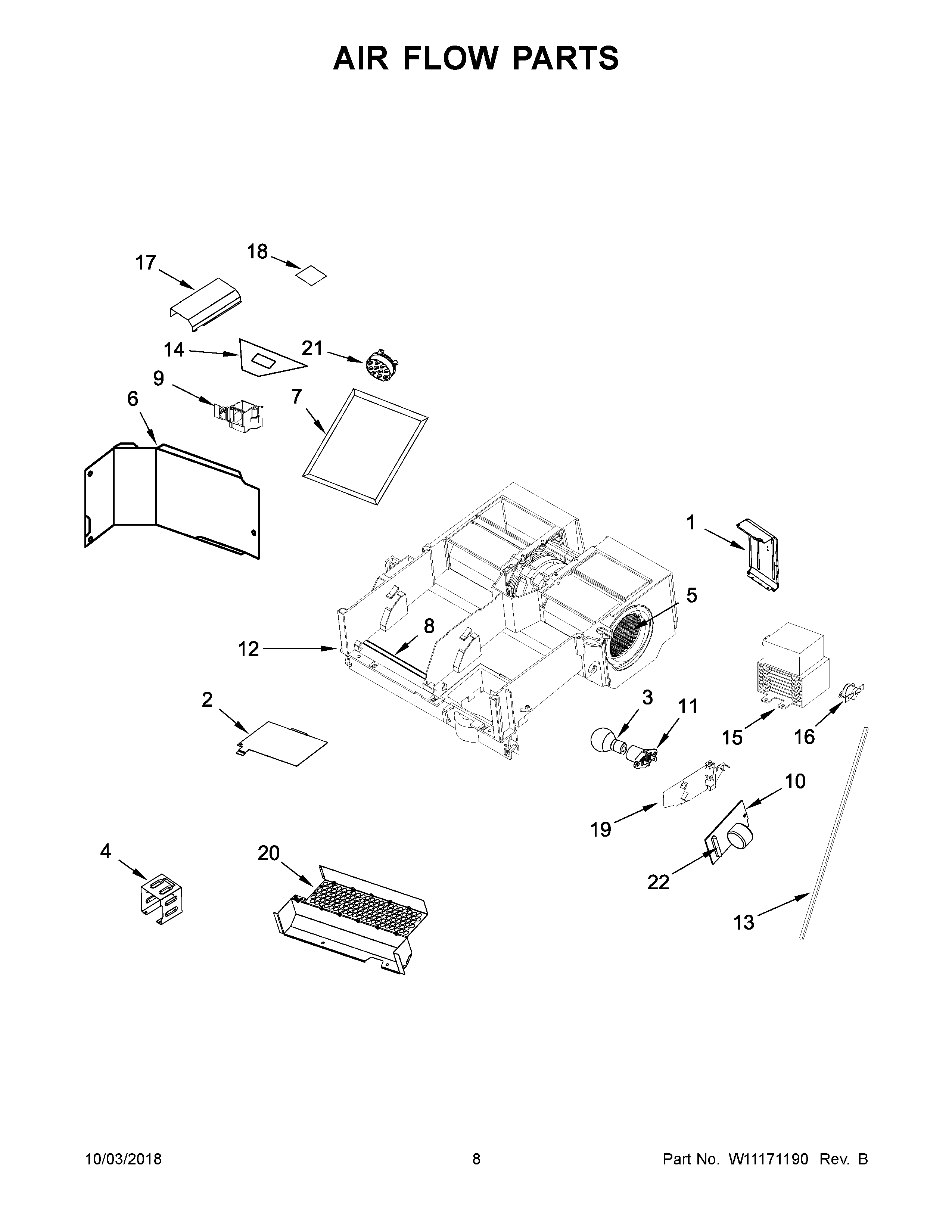

MMV4205FB3 05 – AIR FLOW PARTS

MMV4205FB3 05 – AIR FLOW PARTS

Written by

in

MMV4205FB3 05 – AIR FLOW PARTS

Products

PositionProduct
1DEFLECTOR, AIR
2MAY 8206382
3MAY 4393681
4MAY W10556824
5MOTOR, FAN
6PLATE, AIR DEFLECTOR
7MAY 8206230
8SEAL, AIR GUIDE
9OUTLET, CAVITY (FRONT) (FOR WHITE MODELS)
9AOUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS)
10MAY W10531156
11MAY W10210878
12BASEPLATE, AIR GUIDE
13MAY W10571180
14SOCKET, MOTOR WIRE
15MAGNETRON
16THERMOSTAT, MAGNETRON
17OUTLET, CAVITY (BACK)
18MAY W10531724
19COVER, DUCT (RIGHT)
20MAY W10629803
21MAY W10557536
22MAY W10138793
