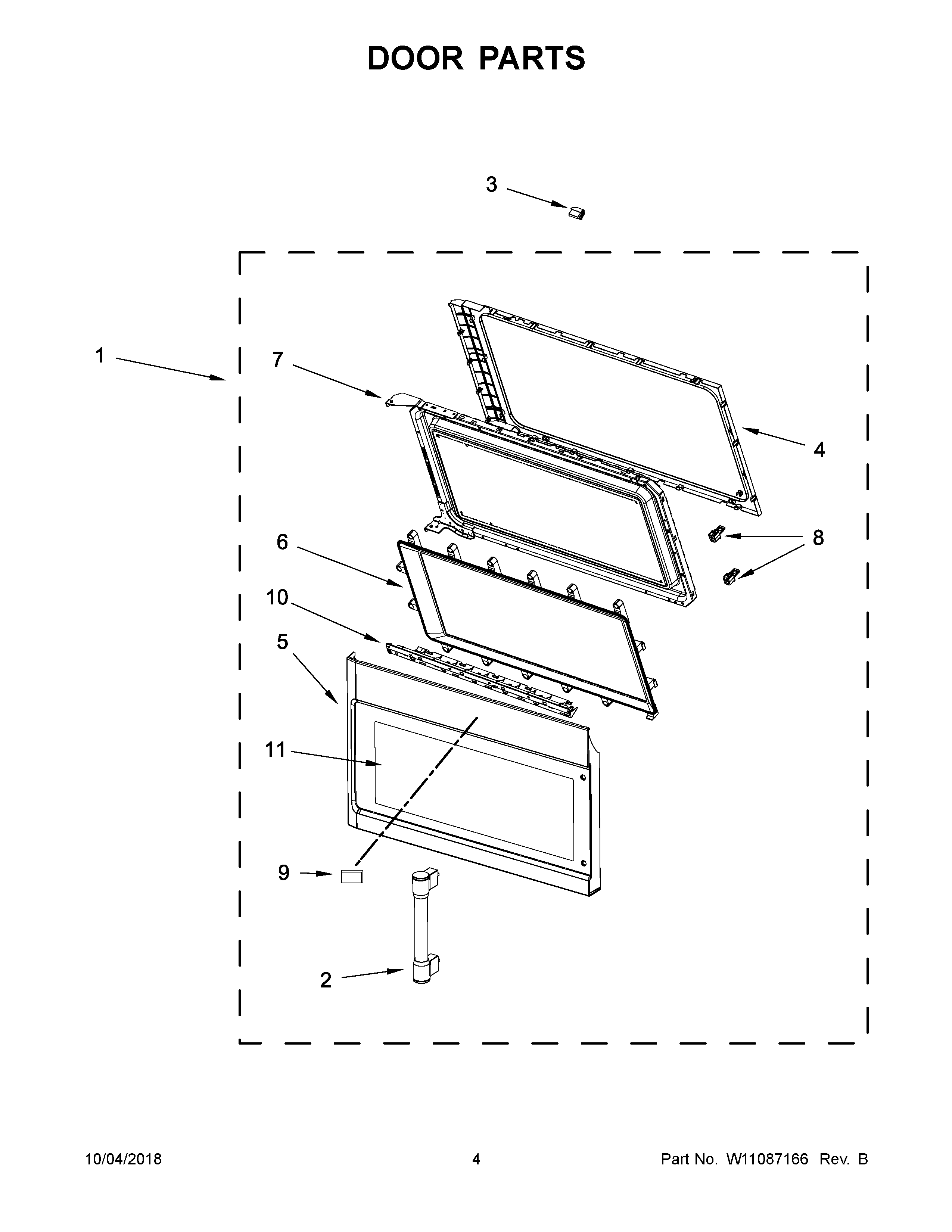

MMV4206FW0 03 – DOOR PARTS

MMV4206FW0 03 – DOOR PARTS

Written by

in

MMV4206FW0 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
1BDOOR, COMPLETE (STAINLESS)
2AHANDLE (BLACK)
2HANDLE (WHITE)
2BHANDLE (STAINLESS)
3STOPPER, DOOR
4FRAME, INNER
5ASSEMBLY, DOOR FRAME (WHITE)
5AASSEMBLY, DOOR FRAME (BLACK)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10TRIM, DOOR (WHITE)
10ATRIM, DOOR (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
