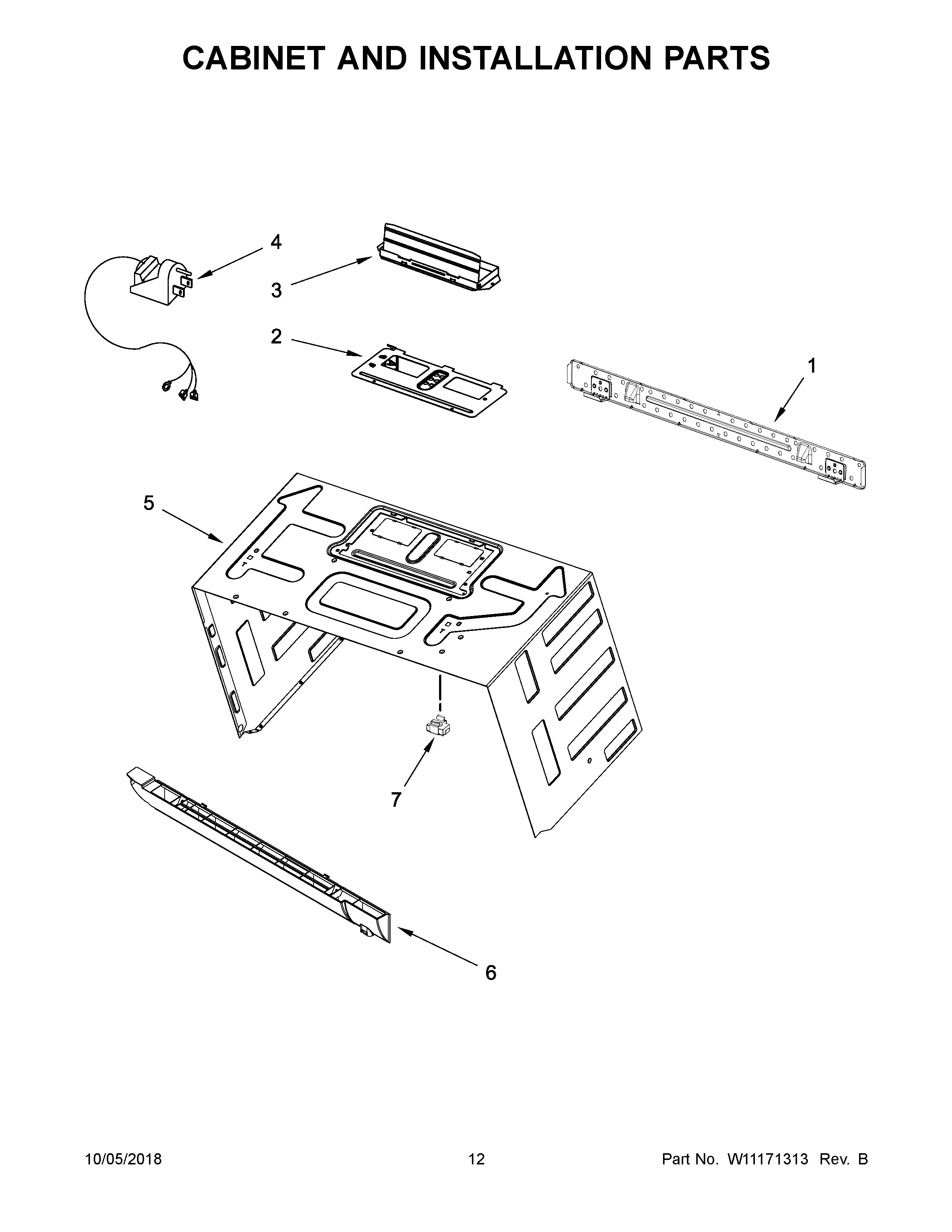

MMV4206FZ2 07 – CABINET AND INSTALLATION PARTSadmin2025-04-26T11:33:57+00:00MMV4206FZ2 07 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | MISCELLANEOUS PARTS, HARNESS, MAIN |
| NI | MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR |
| NI | MISCELLANEOUS PARTS, HARDWARE, INSTALLATION |
| NI | MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH) |
| NI | MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE |
| NI | MISCELLANEOUS PARTS, TEMPLATE, UPPER |
| NI | MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW |
| 1 | PLATE, MOUNTING |
| 2 | COVER, FAN MOTOR |
| 3 | DAMPER |
| 4 | CORD-POWER |
| 5A | MAY W10571408 |
| 5 | CASE, OUTER (WHITE) |
| 6 | GRILLE, VENT (WHITE) |
| 6A | GRILLE, VENT (BLACK) |
| 7 | ASSEMBLY, MOUNTING NUT |
