MMV4207JK0 05 – AIR FLOW PARTS

MMV4207JK0 05 – AIR FLOW PARTS

Written by

in

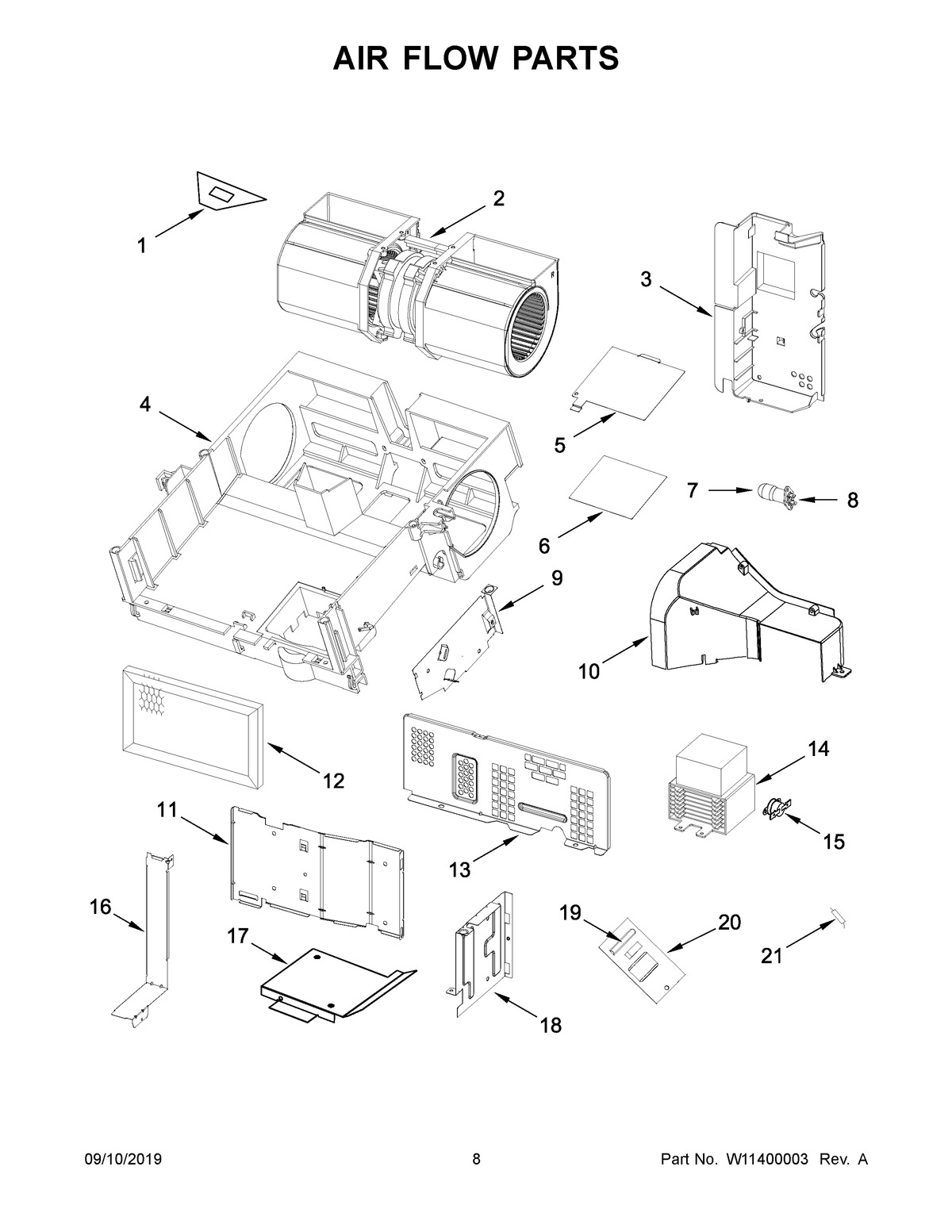

MMV4207JK0 05 – AIR FLOW PARTS

Products

Position	Product
1	SOCKET, MOTOR WIRE
2	MOTOR, FAN
3	MAY W11292618
4	MAY W11268295
5	MAY 8206382
6	MAY W11268331
7	MAY 4393681
8	MAY W10210878
9	MAY W11293488
10	MAY W11283720
11	MAY W11268306
12	FILTER, CHARCOAL
13	SHIELD, FINGER
14	MAY W10638903
15	MAY W11360415
16	COVER, AIRGUIDE INLET
17	MAY W11314197
18	MAY W11268304
19	MAY W10138793
20	MAY W10531156
21	DIODE, HIGH VOLTAGE
