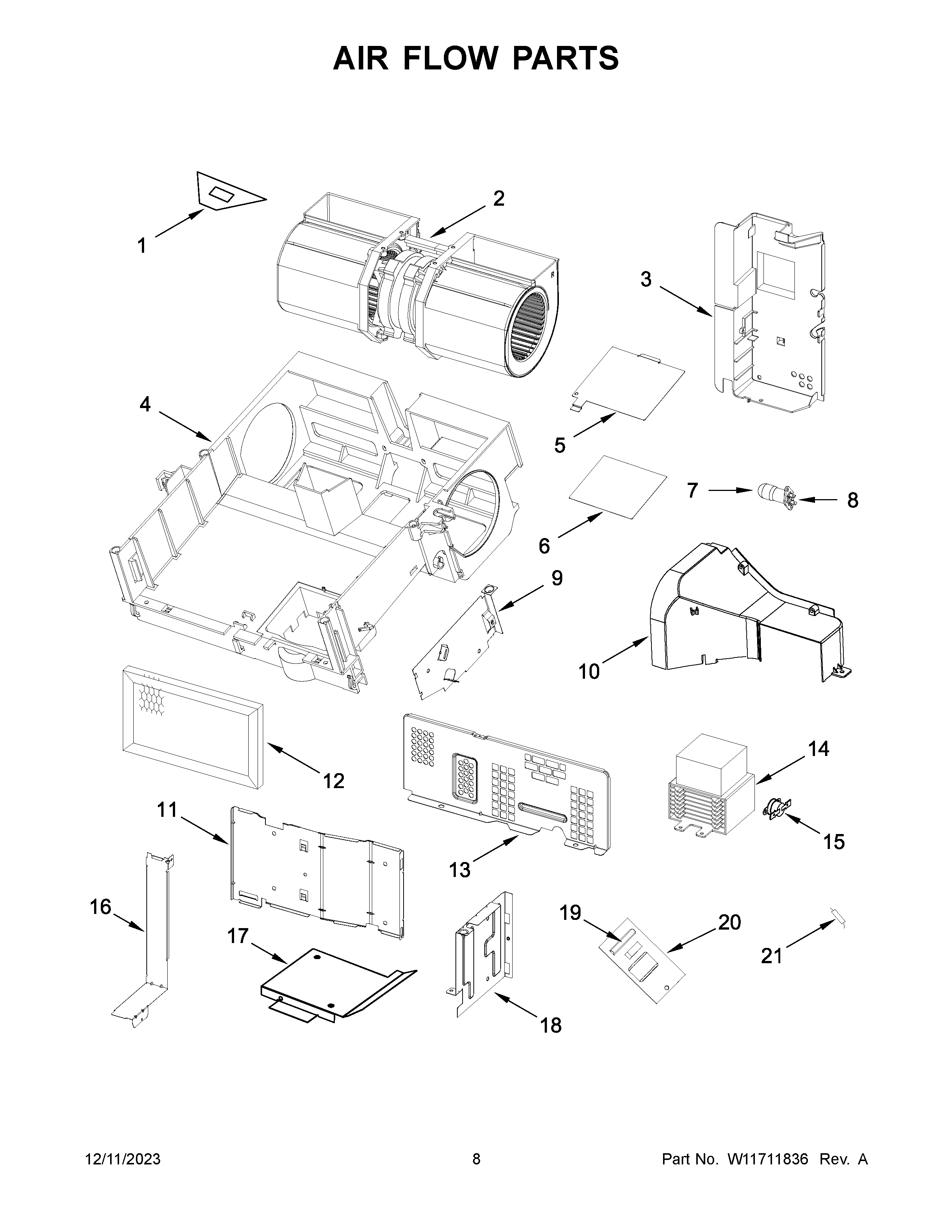

MMV4207JW01 05 – AIR FLOW PARTS

Products

Position	Product
1	W10810142 Whirlpool Relief Strain
1	W11293488 Whirlpool Microwave Air Duct
2	W11442100 Whirlpool Microwave Fan Motor
3	AIR GUIDE, LOWER
4	BASEPLATE, AIR GUIDE
5	8206382 Whirlpool Microwave Light Cover
6	W11391720 Whirlpool Lamp Glass
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	WPW10210878 Whirlpool Microwave LMP Housing
10	DEFLECTOR, AIR
11	PLATE, AIR GUIDE SEALING
12	W10892387 Whirlpool Microwave Charcoal Filter
13	W10342991 Whirlpool Microwave Side Cover
14	W10754299 Whirlpool Microwave Oven Magnetron
15	W11679669 Whirlpool Fix Thermostat
16	W10828038 Whirlpool Duct Cover
17	SUPPORT, SENSOR
18	GUIDE, AIR
19	FUSE-THRML
20	WPW10531156 Whirlpool Microwave Filter
21	W11256462 Whirlpool Microwave Diode
