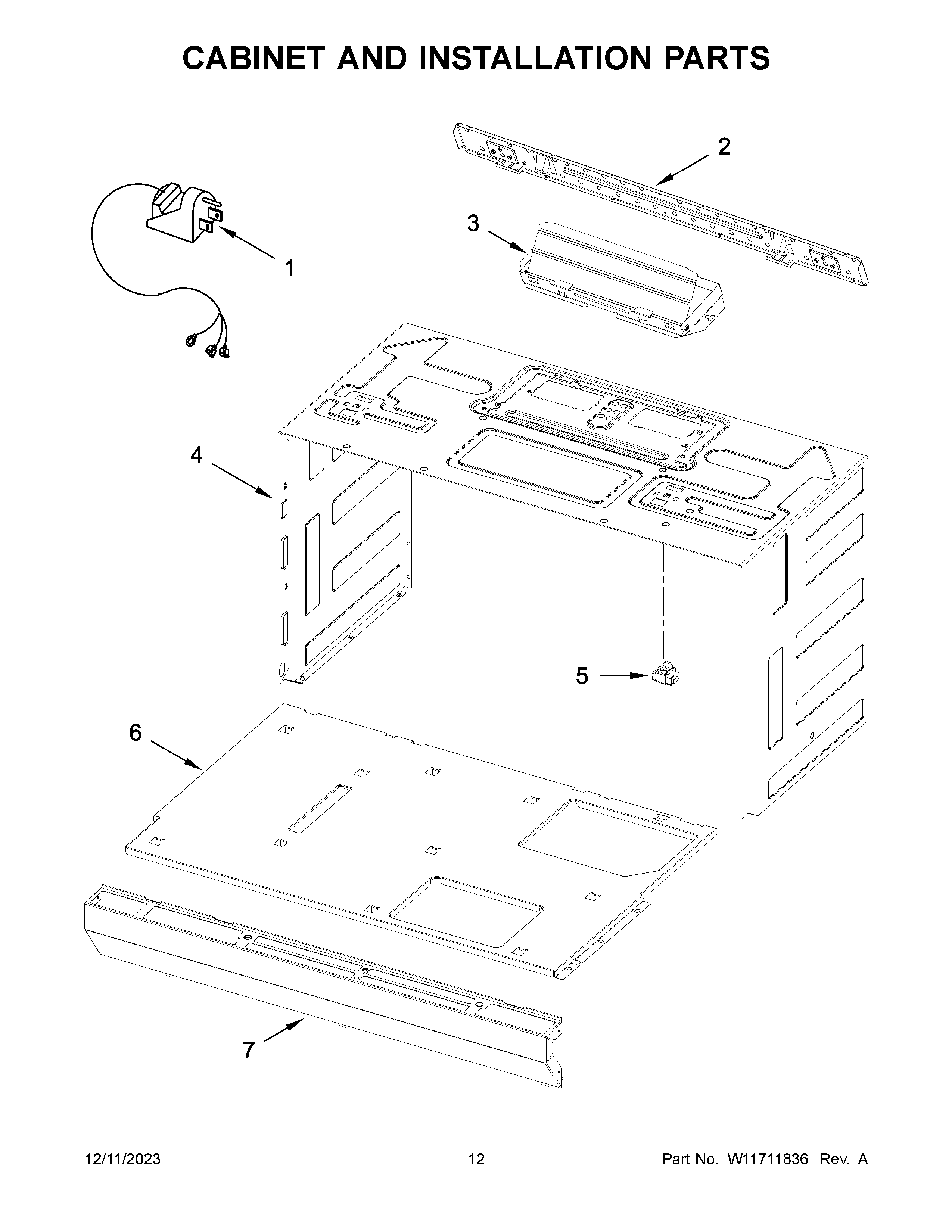

MMV4207JZ01 07 – CABINET AND INSTALLATION PARTS

MMV4207JZ01 07 – CABINET AND INSTALLATION PARTS

Written by

in

MMV4207JZ01 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIW11383534 Whirlpool Wire Harness
NIW11334600 Whirlpool Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW10539840 Whirlpool Microwave Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
1W10708076 Whirlpool Microwave Power Cord
2W11025649 Whirlpool Microwave Mounting Plate
3W10843943 Whirlpool Microwave Vent Damper
4W11446916 Whirlpool Microwave Cabinet Wrapper
5W11122643 Whirlpool Nut
6W11268327 Whirlpool Plate
7W10845642 Whirlpool Microwave Vent Grille
7AW10845643 Whirlpool Microwave Vent Grill
