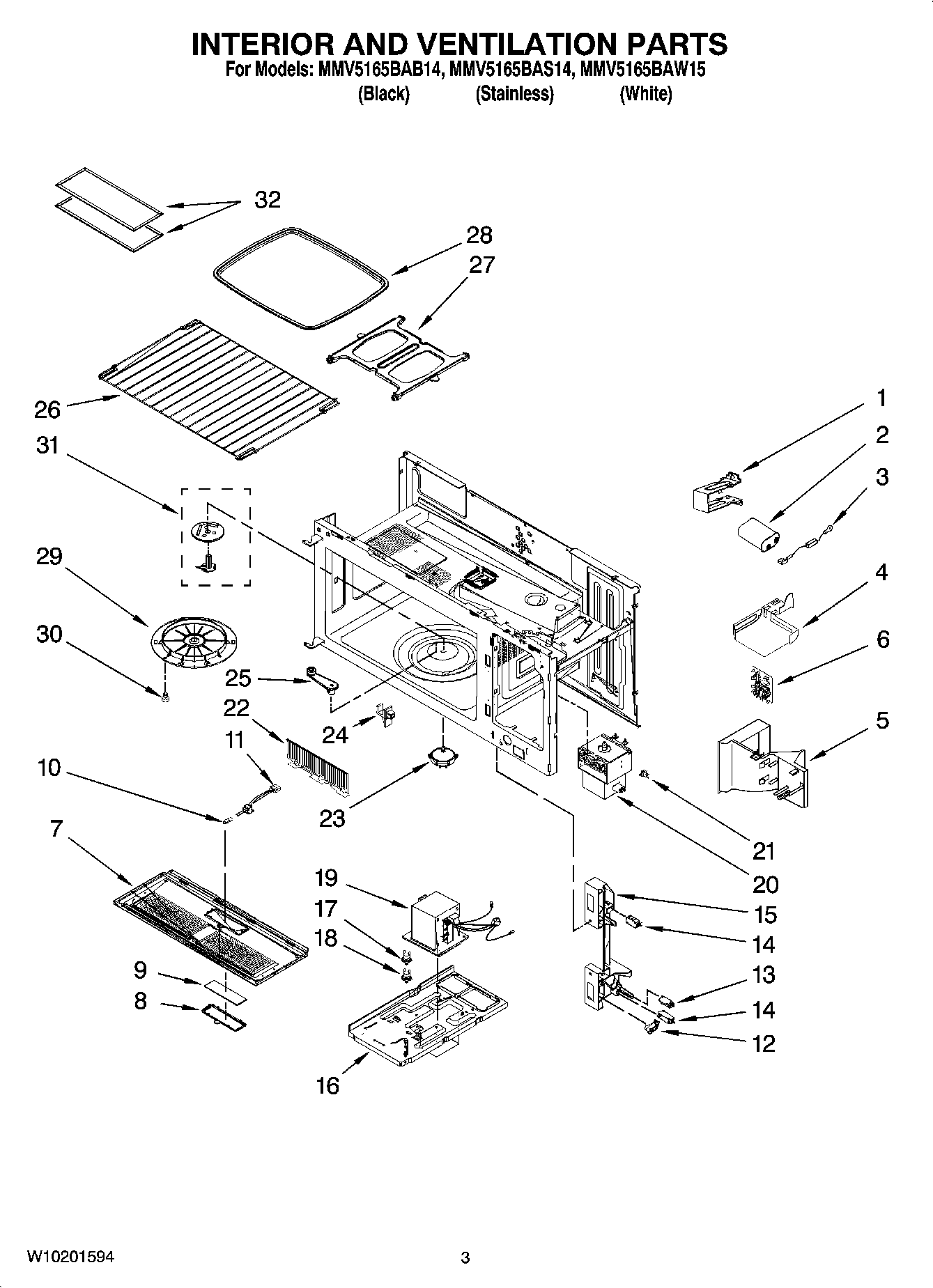

MMV5165BAB14 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	BRACKET-HVC,MW8ROWC,SECC,T0.6,
2	2501-001035 Samsung Microwave C-Oil High Voltage Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	Guide(B), Air
5	GUIDE-AIR(A)
6	MAY W10182544
7	MAY W10254671
7	MAY W10254197
8	COVER-COOKTOP LAMP
8	COVER-COOKTOP LAMP
9	DE67-40063A Samsung Microwave Oven Cooktop Lamp Light Bulb Glass Cover
10	LAMP-INCANDESCENT
11	HOLDER-LAMP
12	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
13	MAY 3405-001033
14	WP3405-001034 Whirlpool Microwave Switch
15	DE96-00414A Samsung Microwave Latch Body Assembly
16	MAY DE96-00415E
18	DE47-20034A Samsung Microwave Thermostat
19	MAY W10254308
20	WPW10126786 Whirlpool Microwave Magnetron
21	DE47-20007A Samsung Microwave Oven Thermostat
22	COVER-FRONT
23	Motor, Turntable
24	DE61-00375A Samsung Holder Rack
25	DE97-00602A Samsung Assembly COUPLER
26	DE75-00051A Samsung Wire Rack
27	DE99-00357A Samsung Assembly Tray
28	MAY DE63-00383A
29	COVER-STIRRER
30	MAY DE66-20095B
31	MAY W10254310
32	MAY W10187748
