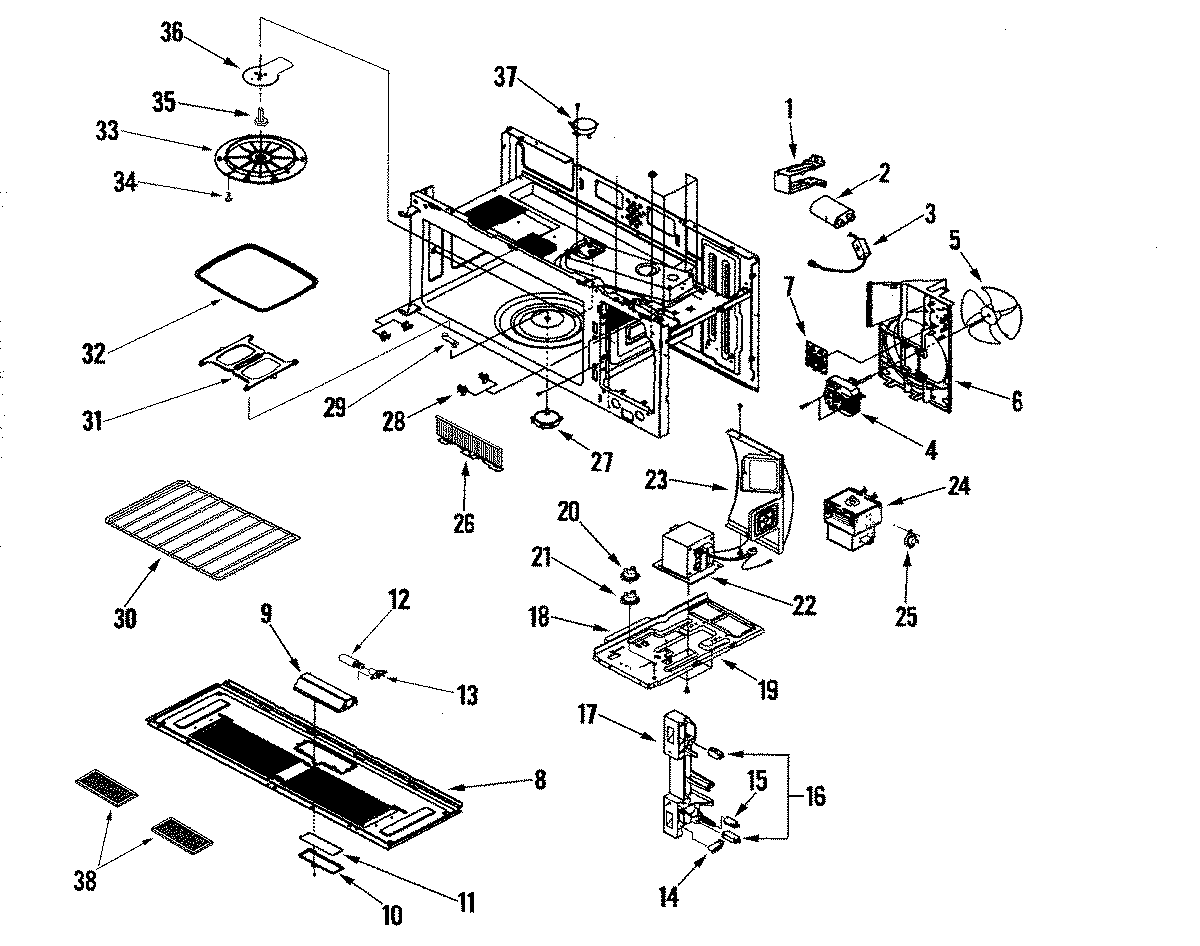

MMV5207BAB 01 – BASE/CAVITY/INTERNAL CONTROLS

MMV5207BAB 01 – BASE/CAVITY/INTERNAL CONTROLS

Written by

in

MMV5207BAB 01 – BASE/CAVITY/INTERNAL CONTROLS

Products

PositionProduct
1MAY DE61-00115A
22501-001016 Samsung Capacitor
3DE91-70063D Samsung Oven Microwave High Voltage Diode
4DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
5BLADE, FAN
6DE63-00141A Samsung Cover Motor
7ASSY NOISE FILTER,SN-UF12B,250
8MAY DE61-00406B
10DE63-00137B Samsung Cover-Glass Cooktop
11DE64-00911A Samsung Glass Cooktop Lamp
124713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13DE47-00032B Samsung Microwave Oven HALOGEN Lamp Light Socket
14DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15MAY 3405-001033
16WP3405-001034 Whirlpool Microwave Switch
17LATCH-BODY,MODULAR-2,PP,-,-,-,
18CUSHION-SPONGE
19BASE-PLATE
21DE47-20034A Samsung Microwave Thermostat
23BRACKET-DUCT REAR
24WPW10126786 Whirlpool Microwave Magnetron
25DE47-20007A Samsung Microwave Oven Thermostat
26COVER-FRONT
28DE61-00375A Samsung Holder Rack
29DE97-00602A Samsung Assembly COUPLER
30DE97-00369A Samsung Wire Assembly Rack
31MAY DE61-00855A
32MAY DE63-00383A
33COVER-STIRRER
34MAY DE66-20095B
35MAY DE61-00804A
36MAY DE66-00184A
37Motor, Turntable
38DE63-00196A Samsung Aluminum Air Filter
