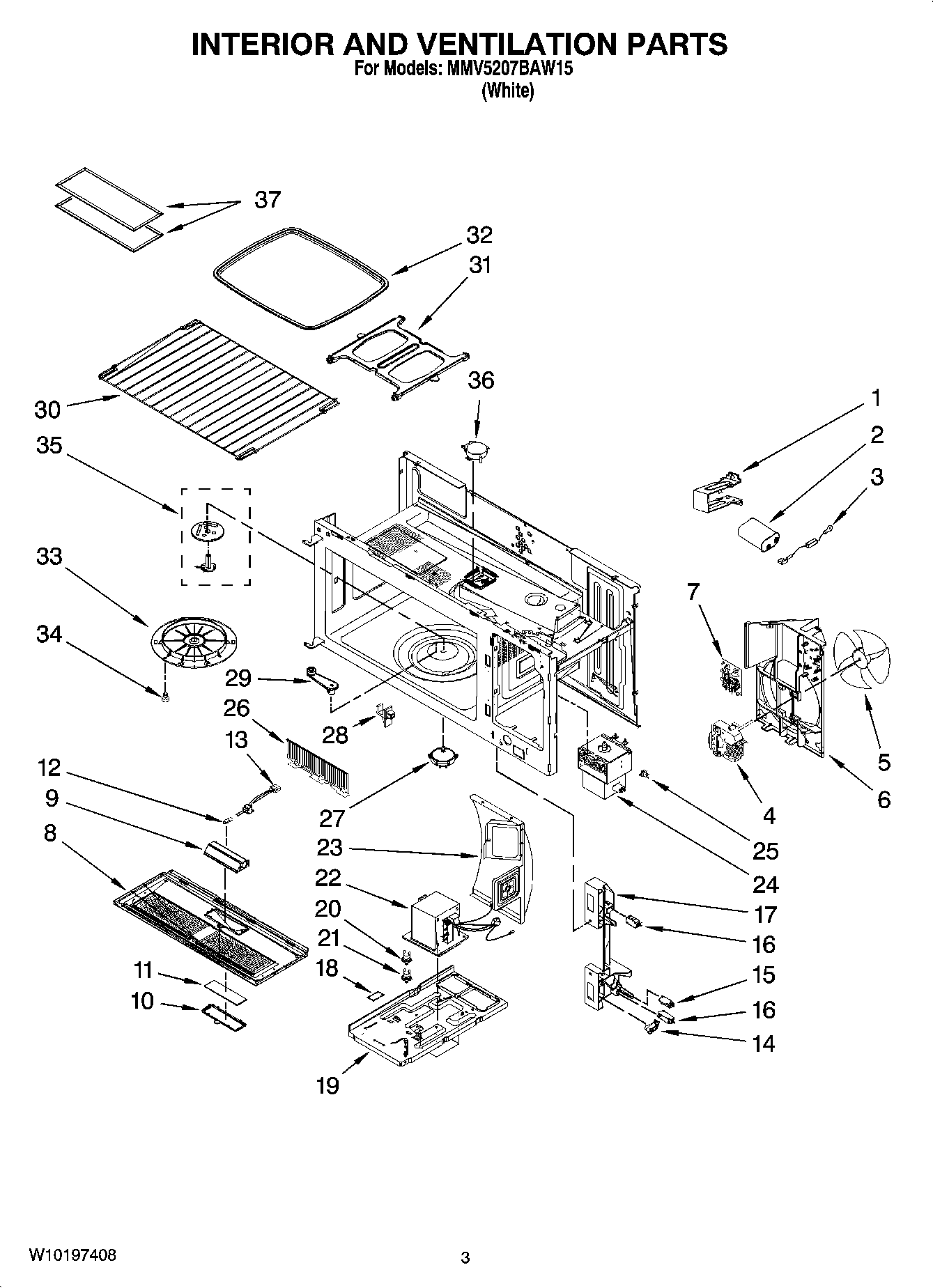

MMV5207BAW15 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY DE61-00115A
2	2501-001016 Samsung Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
5	BLADE, FAN
6	MAY W10197780
7	MAY W10182040
8	MAY W10192097
10	COVER-GLASS COOKTOP
11	DE64-00911A Samsung Glass Cooktop Lamp
12	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13	DE47-00032B Samsung Microwave Oven HALOGEN Lamp Light Socket
14	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15	MAY 3405-001033
16	WP3405-001034 Whirlpool Microwave Switch
17	LATCH-BODY,MODULAR-2,PP,-,-,-,
18	CUSHION-SPONGE
19	MAY W10187747
21	DE47-20034A Samsung Microwave Thermostat
22	MAY W10197612
23	MAY W10197689
24	WPW10126786 Whirlpool Microwave Magnetron
25	DE47-20007A Samsung Microwave Oven Thermostat
26	MAY W10197680
27	Motor, Turntable
28	DE61-00375A Samsung Holder Rack
29	DE97-00648A Samsung Assembly COUPLER
30	MAY W10182049
31	DE99-00357A Samsung Assembly Tray
32	MAY DE63-00383A
33	COVER-STIRRER
34	MAY DE66-20095B
35	MAY W10197709
37	MAY W10187748
