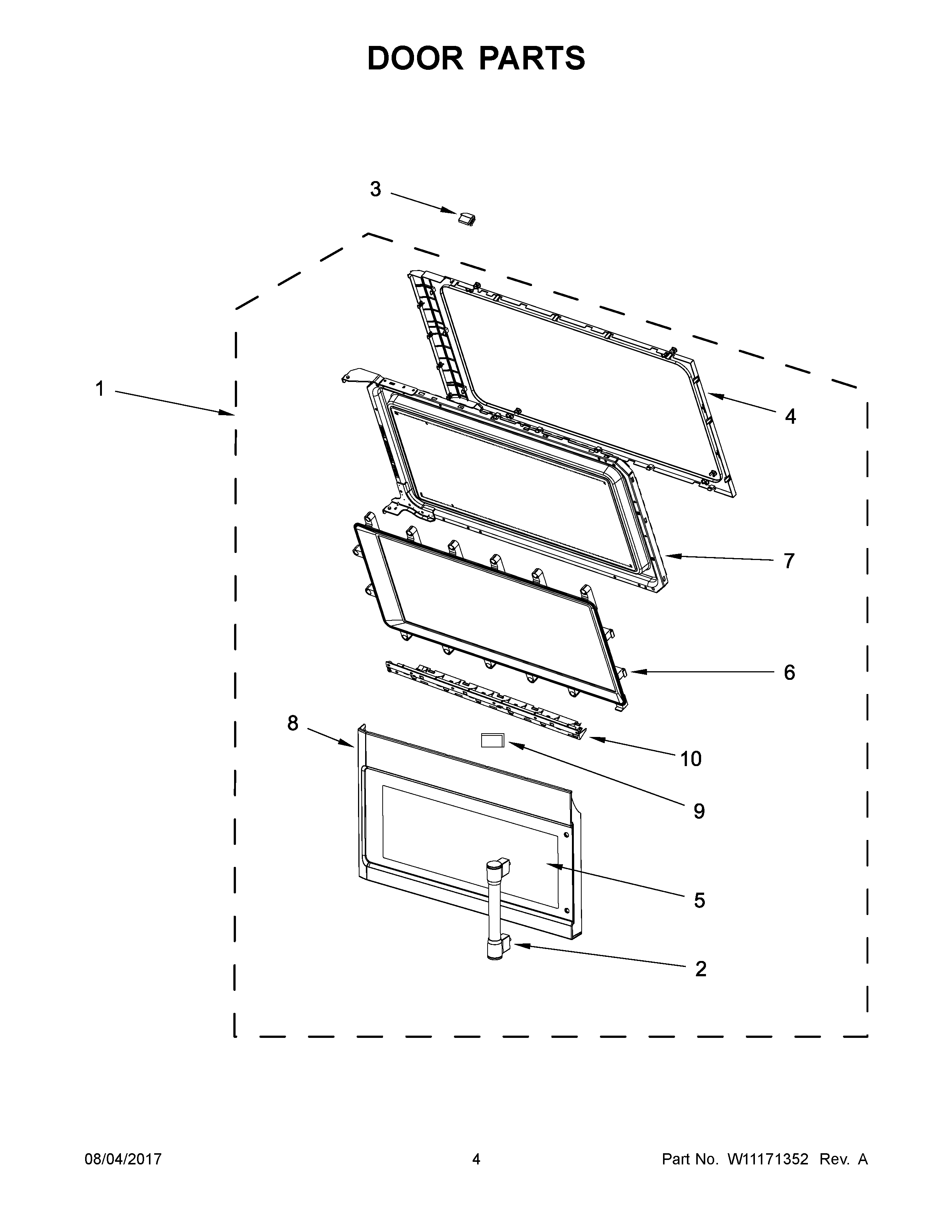

MMV5219DE4 03 – DOOR PARTS

Products

Position	Product
1	DOOR, COMPLETE (STAINLESS)
1A	DOOR, COMPLETE (WHITE ICE)
1B	DOOR, COMPLETE (BLACK ICE)
2	HANDLE (STAINLESS & BLACK ICE MODELS)
2A	HANDLE (WHITE ICE)
3	STOPPER, DOOR
4	FRAME, INNER
5	GLASS, OUTER DOOR (STAINLESS)
5A	ASSEMBLY, DOOR GLASS (WHITE)
5B	GLASS, OUTER DOOR (BLACK)
6	PLATE, STEAM PROTECTION
7	FOIL, DOOR
8	ASSEMBLY, DOOR FRAME (STAINLESS)
8B	ASSEMBLY, DOOR FRAME (BLACK)
8A	ASSEMBLY, DOOR FRAME (WHITE)
9	BADGE
10	TRIM, DOOR (WHITE)
10A	TRIM, DOOR (BLACK)
