MMV5219FZ0 03 – DOOR PARTS

MMV5219FZ0 03 – DOOR PARTS

Written by

in

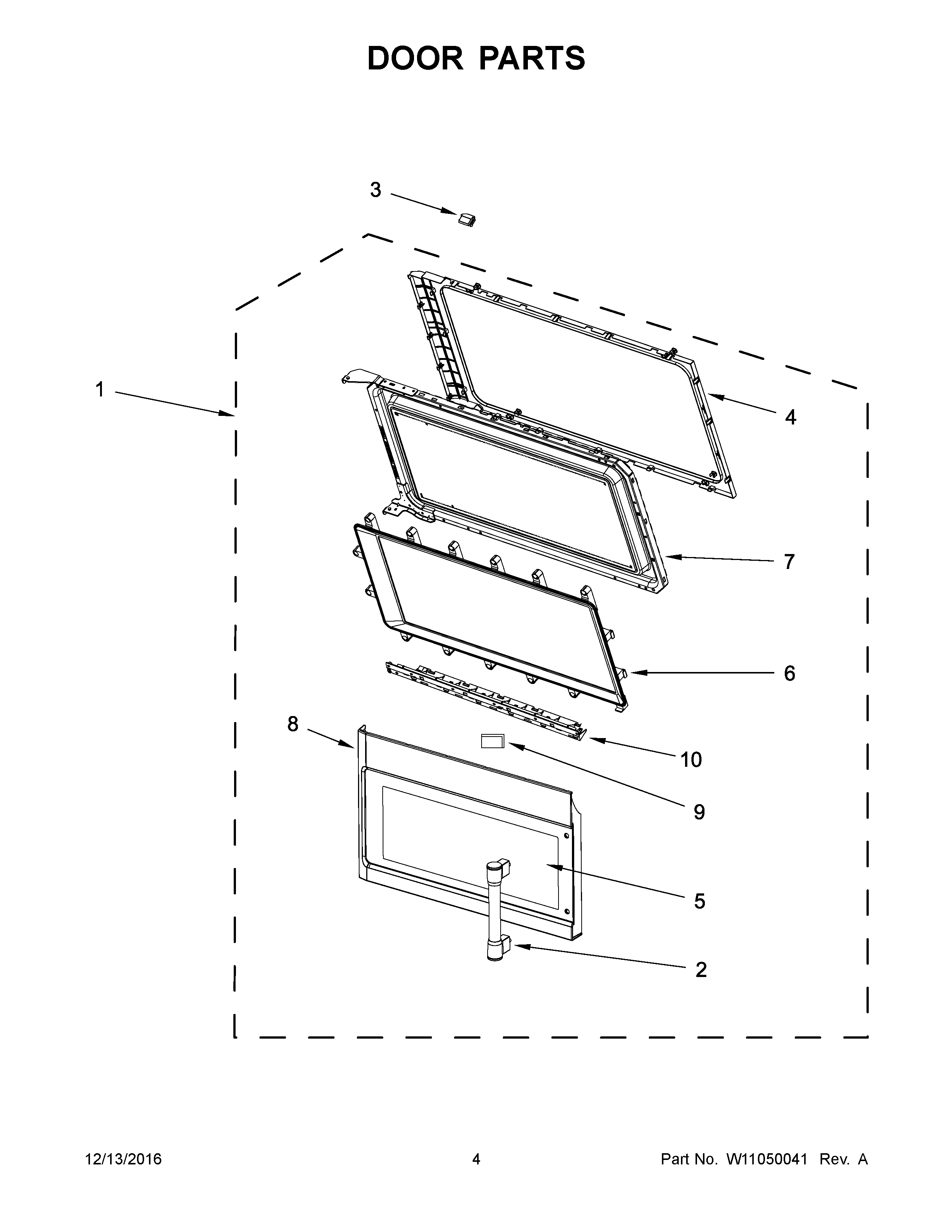

MMV5219FZ0 03 – DOOR PARTS

Products

PositionProduct
1BDOOR, COMPLETE (STAINLESS)
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
2AHANDLE (BLACK)
2BHANDLE (STAINLESS)
2HANDLE (WHITE)
3STOPPER, DOOR
4FRAME, INNER
5AASSEMBLY, DOOR GLASS (BLACK)
5ASSEMBLY, DOOR GLASS (WHITE)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8BASSEMBLY, DOOR FRAME (STAINLESS)
8AASSEMBLY, DOOR FRAME (BLACK)
8ASSEMBLY, DOOR FRAME (WHITE)
9BADGE
10ATRIM, DOOR (BLACK)
10TRIM, DOOR (WHITE)
