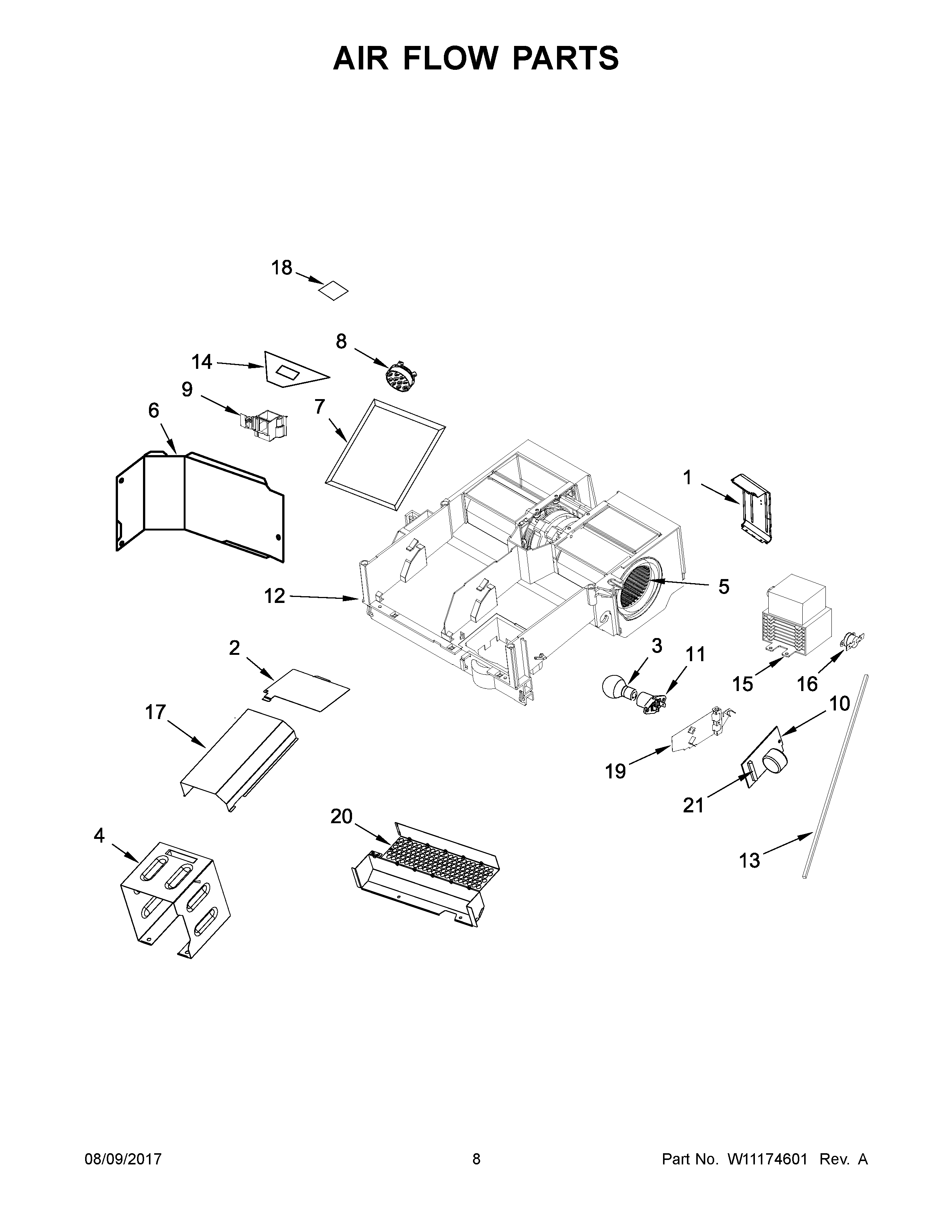

MMV5220FW1 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR DEFLECTOR
7	MAY 8206230
8	MAY W10557536
9	OUTLET, CAVITY (FRONT) (FOR BLACK, STAINLESS & BLACK ICE MODELS)
9A	OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS)
10	MAY W10531156
11	MAY W10210878
12	BASEPLATE, AIR GUIDE
13	MAY W10571180
14	MAY W10139750
15	MAGNETRON
16	THERMOSTAT, CAVITY
17	OUTLET, CAVITY (BACK)
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	MAY W10629803
21	MAY W10138793
