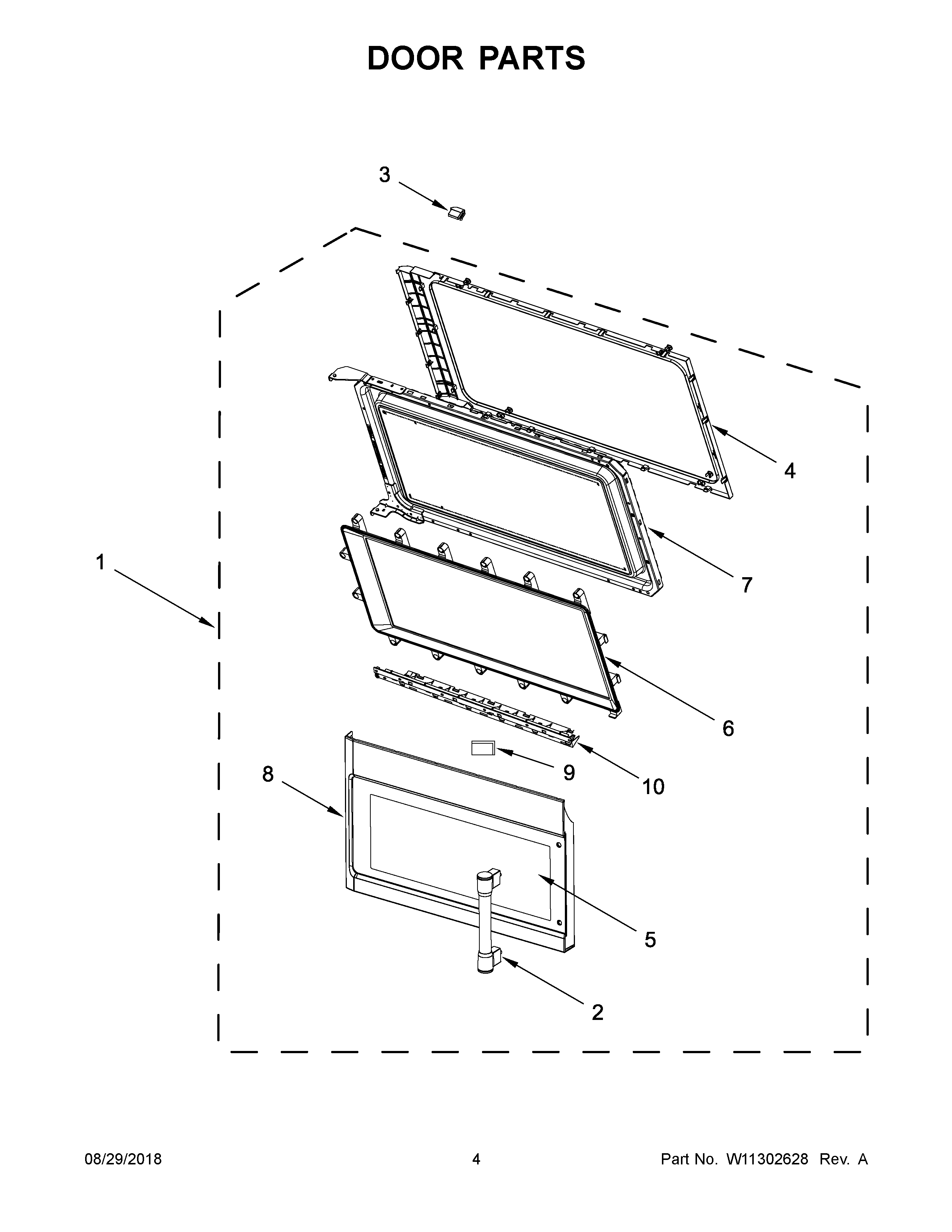

MMV5220FW4 03 – DOOR PARTS

MMV5220FW4 03 – DOOR PARTS

Written by

in

MMV5220FW4 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
2HANDLE (WHITE)
2AHANDLE (BLACK)
3STOPPER, DOOR
4FRAME, INNER
5ASSEMBLY, DOOR GLASS (WHITE)
5AASSEMBLY, DOOR GLASS (BLACK)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8AASSEMBLY, DOOR FRAME (BLACK)
8ASSEMBLY, DOOR FRAME (WHITE)
9BADGE
10TRIM, DOOR (WHITE)
10ATRIM, DOOR (BLACK)
