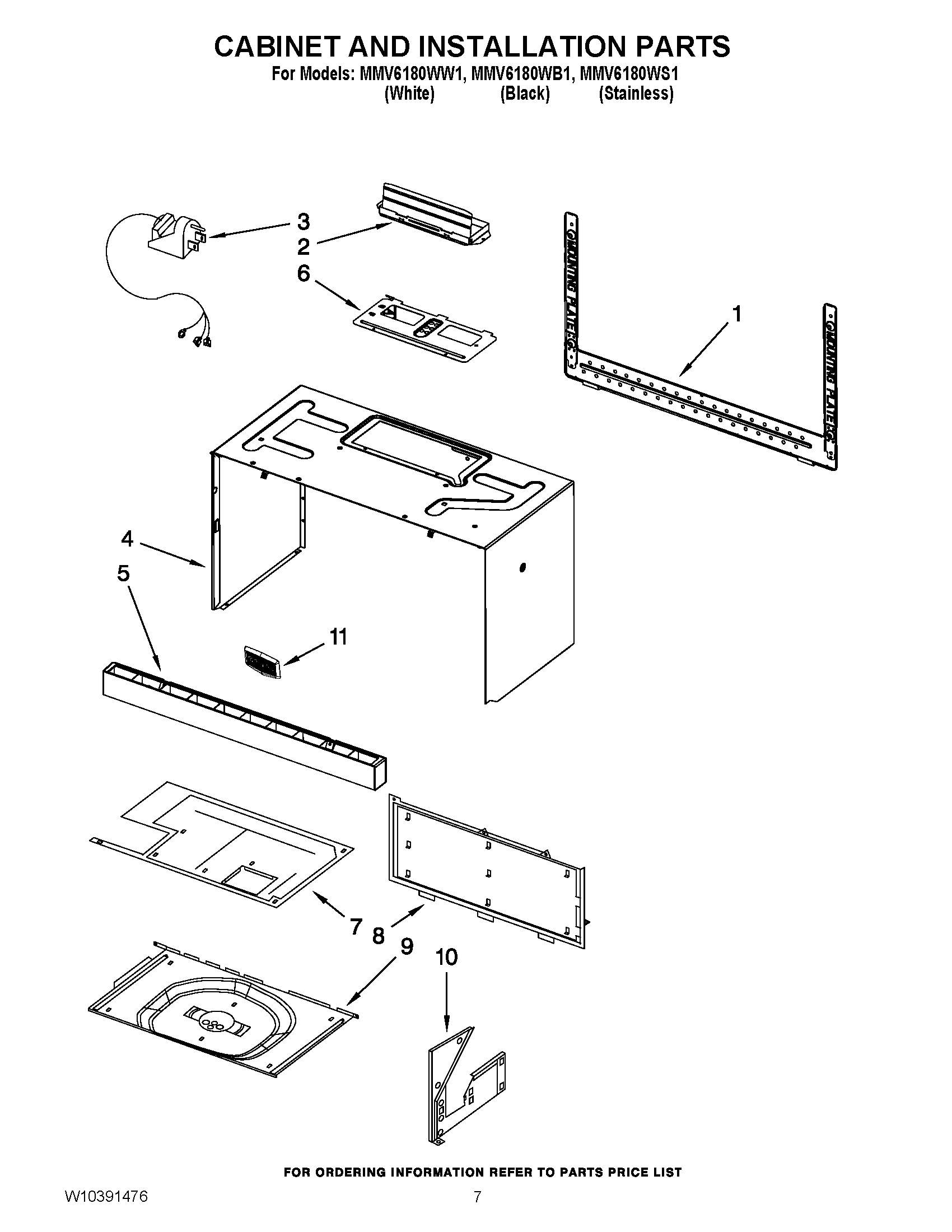

MMV6180WB1 06 – CABINET AND INSTALLATION PARTS

MMV6180WB1 06 – CABINET AND INSTALLATION PARTS

Written by

in

MMV6180WB1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10283312
NIMAY W10245226
NIMAY 8205948
NIMAY 8205696
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMAY W10107760
1MAY W10245177
2MAY 8206442
3CORD-POWER
4MAY W10244765
4CASE, OUTER
5MAY W10259232
5MAY W10259235
5MAY W10259230
6MAY W10210832
7ASSEMBLY, TOP PLATE
8ASSEMBLY, BACK PLATE
9ASSEMBLY, BOTTOM PLATE
10ASSEMBLY, RIGHT PLATE
11BADGE
