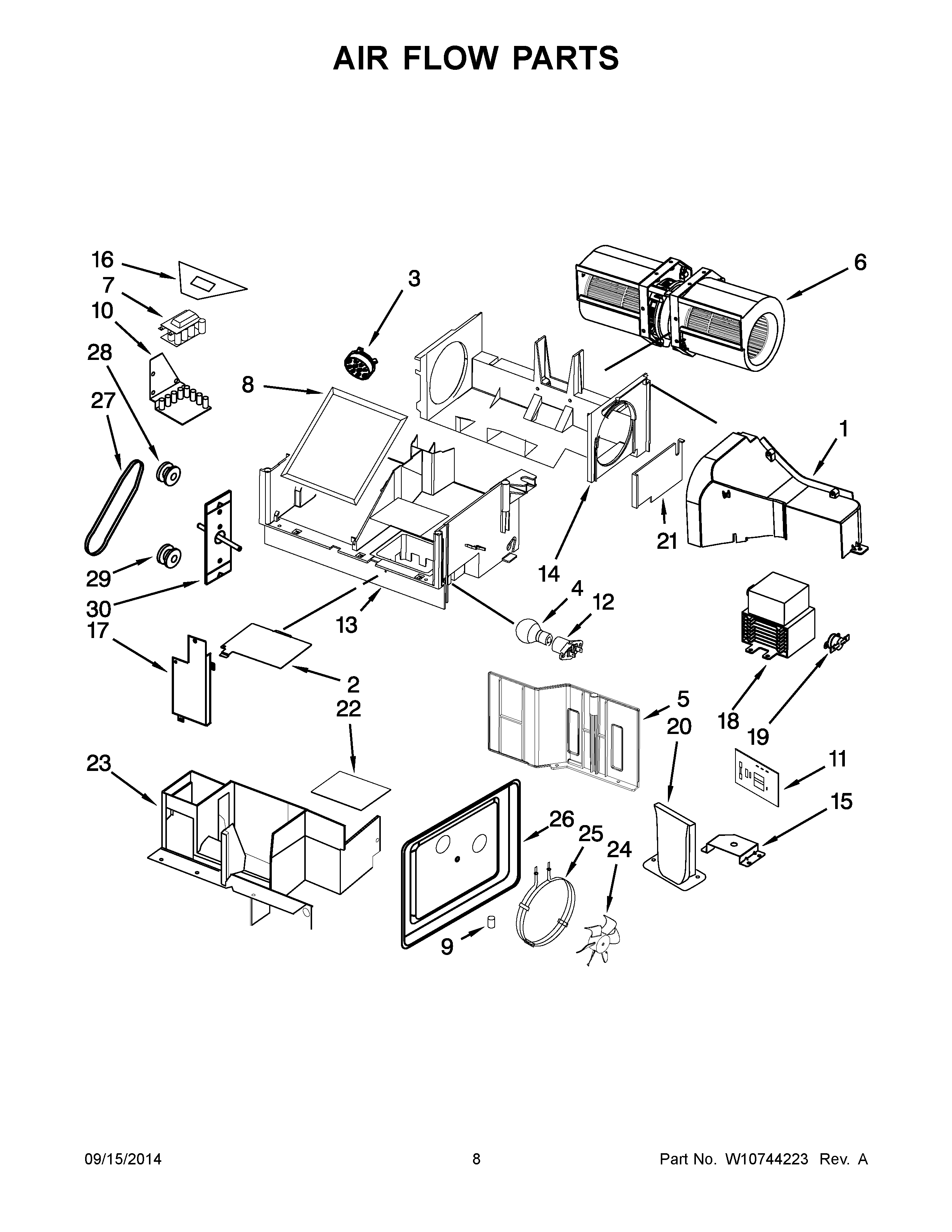

MMV6180WB2 05 – AIR FLOW PARTS

MMV6180WB2 05 – AIR FLOW PARTS

Written by

in

MMV6180WB2 05 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10640886
2	MAY 8206382
3	MAY W10245178
4	MAY 4393681
5	MAY W10245192
6	MOTOR, FAN ASSEMBLY
7	MOTOR, CONVECTION
8	MAY 8206230
9	THERMISTOR
10	MAY W10399840
11	FILTER, NOISE
12	MAY W10210878
13	MAY W10640887
14	MAY W10640888
15	BRACKET, BOARD
16	MAY W10139750
17	MAY W10249328
18	MAY W10245183
19	THERMOSTAT, MAGNETRON
20	MAY W10164716
21	MAY W10245182
22	FOIL, CAVITY LAMP
23	MAY W10640889
24	MAY W10249510
25	MAY W10249509
26	ASSEMBLY, CHAMBER
27	MAY W10249504
28	MAY W10249505
29	MAY W10249506
30	MAY W10535839
