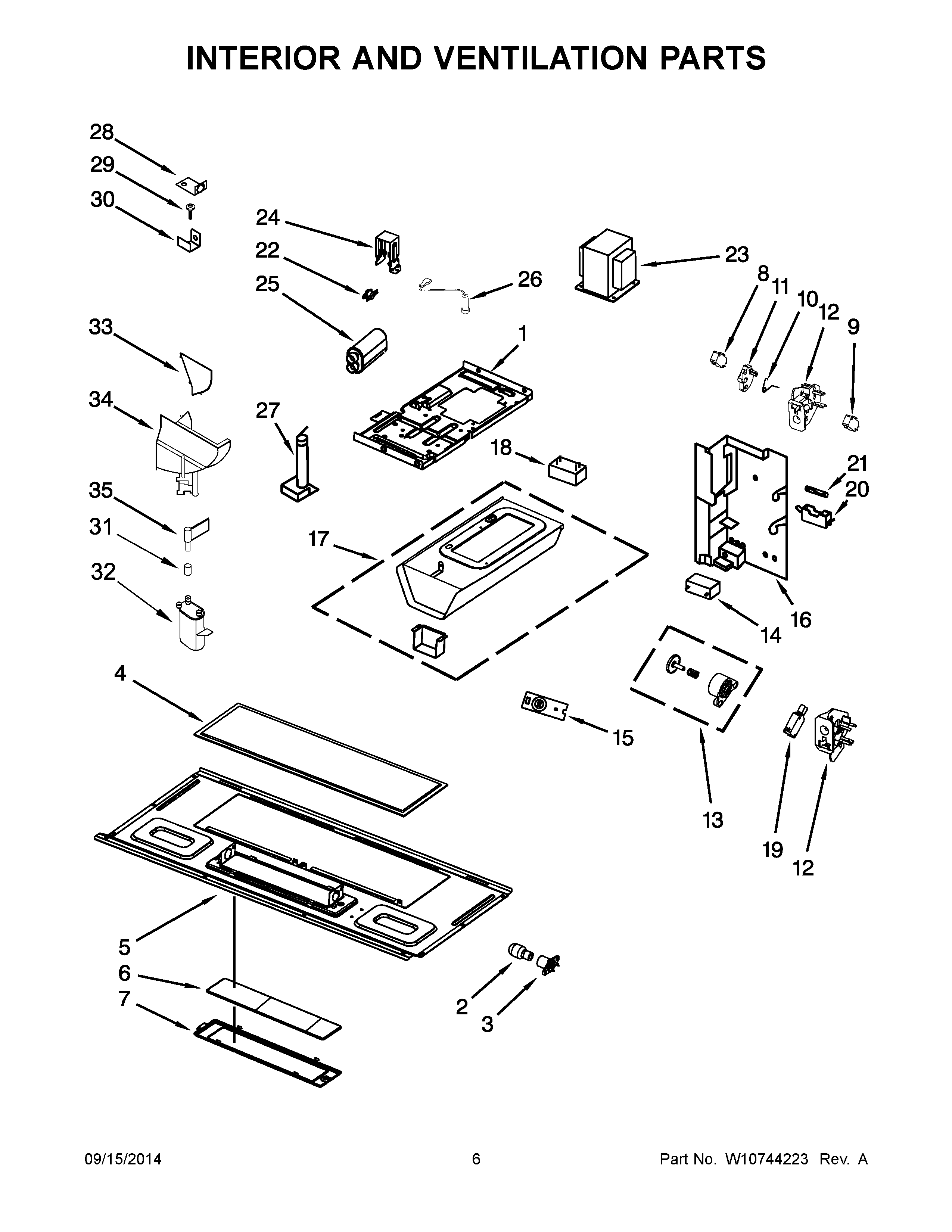

MMV6180WS2 04 – INTERIOR AND VENTILATION PARTS
Written by
in
MMV6180WS2 04 – INTERIOR AND VENTILATION PARTS
Products
Position
Product
1
MAY W10248270
2
MAY 8206232
3
MAY W10210871
4
MAY W10208631
5
MAY W10245196
6
MAY W10210875
7
MAY W10210873
8
MAY W10211972
9
MAY W10211973
10
MAY W10156812
11
MAY W10156811
12
MAY 8206419
12A
MAY W10156813
13
MAY W10197758
14
MAY W10245191
15
Thermistor (PCBA)
16
AIR GUIDE, LOWER
17
MAY W10310720
18
MAY W10245190
19
MAY W10211974
20
MAY W10250232
21
MAY W10138793
22
CUTOUT, THERMAL
23
TRANSFORMER, HIGH VOLTAGE
24
BRACKET, CAPACITOR
25
CAPACITOR, HIGH VOLTAGE
26
DIODE, H.V.
27
MAY W10245188
28
MAY W10259248
29
THERMOSTAT, CONVECTION
30
CLIP
31
MAY W10259216
32
MAY W10458325
33
MAY W10248274
34
MAY W10248276
35
MAY W10248277
←
