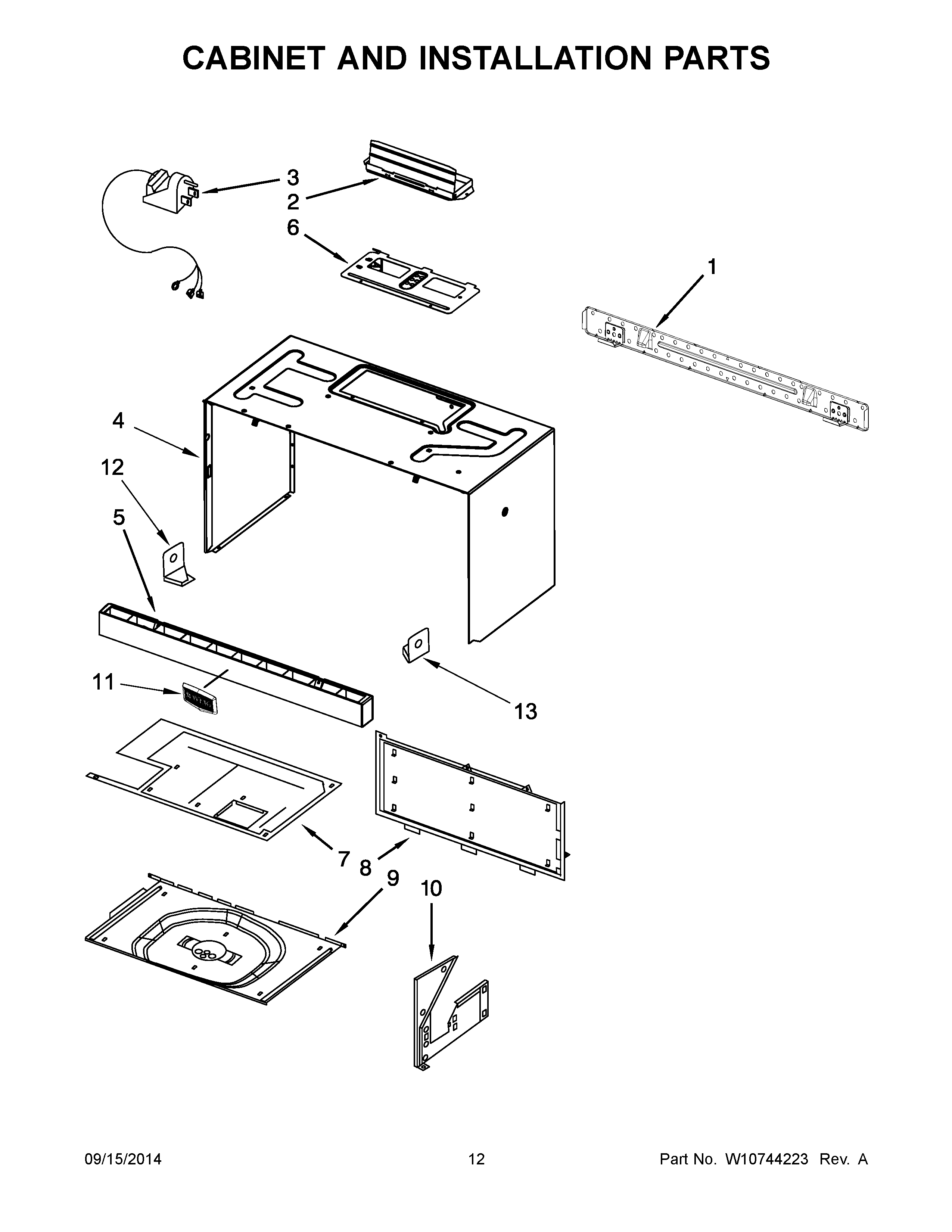

MMV6180WW2 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MAY W10553852
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MAY 8205948
1	PLATE, MOUNTING
2	MAY W10725323
3	CORD-POWER
4A	CASE, OUTER
4	MAY W10244765
5A	MAY W10527310
5B	MAY W10259232
5	MAY W10527308
6	MAY W10210832
7	ASSEMBLY, TOP PLATE
8	ASSEMBLY, BACK PLATE
9	ASSEMBLY, BOTTOM PLATE
10	ASSEMBLY, RIGHT PLATE
11	BADGE
12A	HOLDER, VENT LEFT SIDE (BLACK)
12	HOLDER, VENT LEFT SIDE (STAINLESS)
13A	HOLDER, VENT RIGHT SIDE (BLACK)
13	HOLDER, VENT RIGHT SIDE (STAINLESS)
