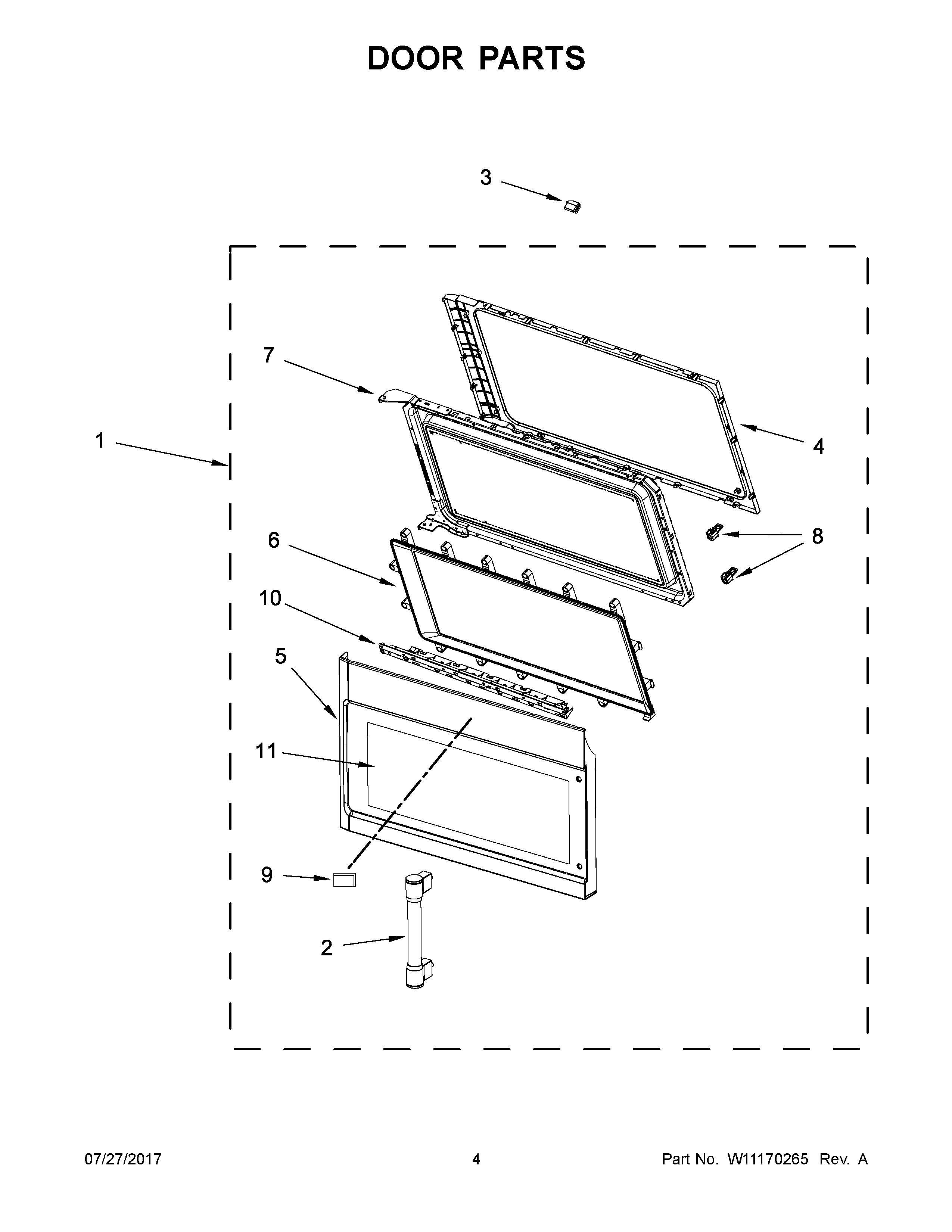

MMV6190DE2 03 – DOOR PARTS

Products

Position	Product
1A	MAY W10672192
1	MAY W10672191
1B	MAY W10672193
2A	HANDLE (STAINLESS & BLACK ICE MODELS)
2	HANDLE (WHITE ICE)
3	STOPPER, DOOR
4	FRAME, INNER
5B	ASSEMBLY, DOOR FRAME (STAINLESS)
5A	ASSEMBLY, DOOR FRAME (BLACK)
5	ASSEMBLY, DOOR FRAME (WHITE)
6	MAY W10541732
7	MAY W10568847
8	MAY W10489272
9	BADGE
10A	TRIM, DOOR (BLACK)
10	TRIM, DOOR (WHITE)
11	ASSEMBLY, DOOR GLASS (WHITE)
11A	ASSEMBLY, DOOR GLASS (BLACK)
11B	ASSEMBLY, DOOR GLASS (STAINLESS)
