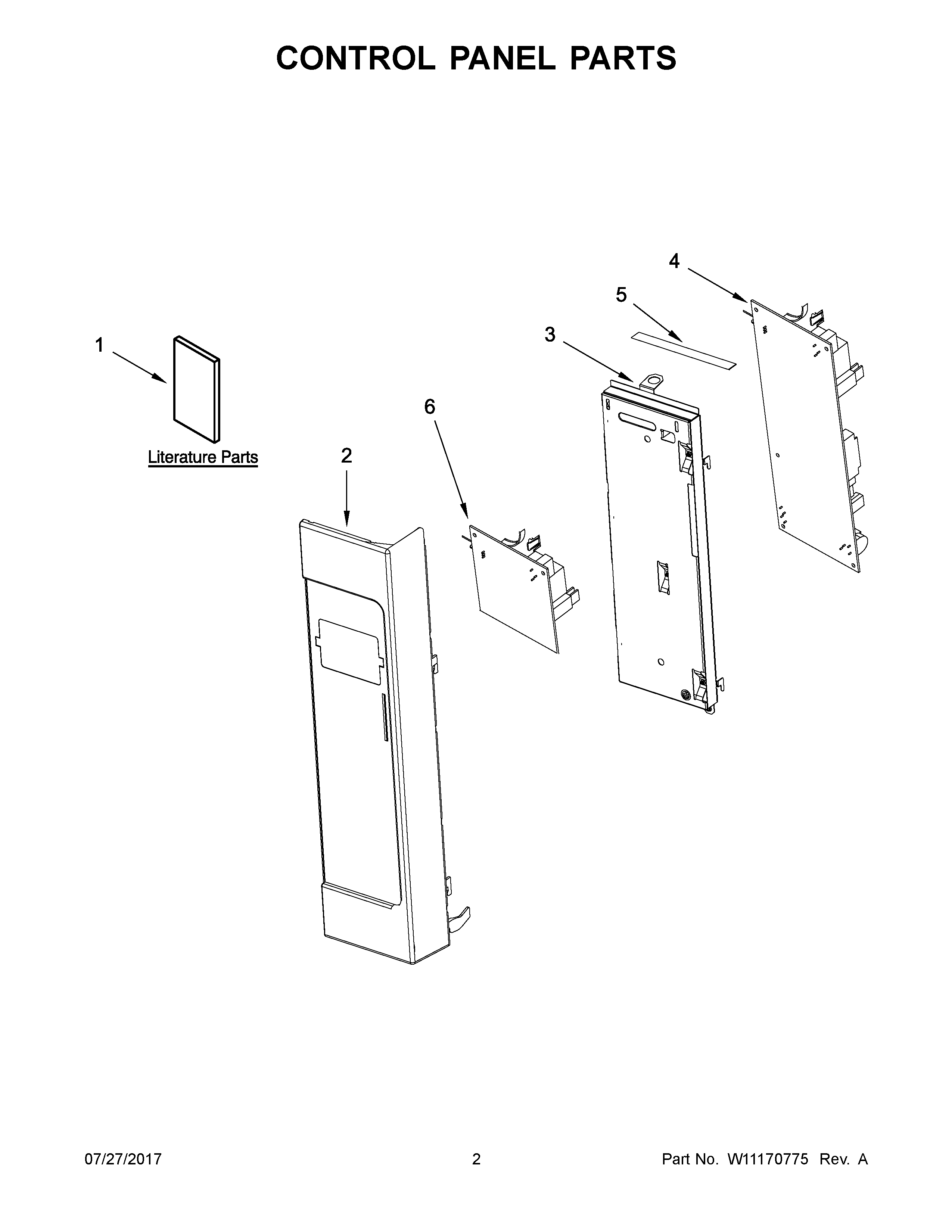

MMV6190DH3 02 – CONTROL PANEL PARTS

MMV6190DH3 02 – CONTROL PANEL PARTS

Written by

in

MMV6190DH3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
1AUSE AND CARE GUIDE
1BQUICK REFERENCE GUIDE
2ASSEMBLY, CONTROL PANEL (WHITE ICE)
2BMAY W10609182
2AASSEMBLY, CONTROL PANEL (BLACK ICE)
3MAY W10540727
4PCBA, APPLIANCE CONTROL UNIT
5MAY W10540721
6PCBA, USER INTERFACE
