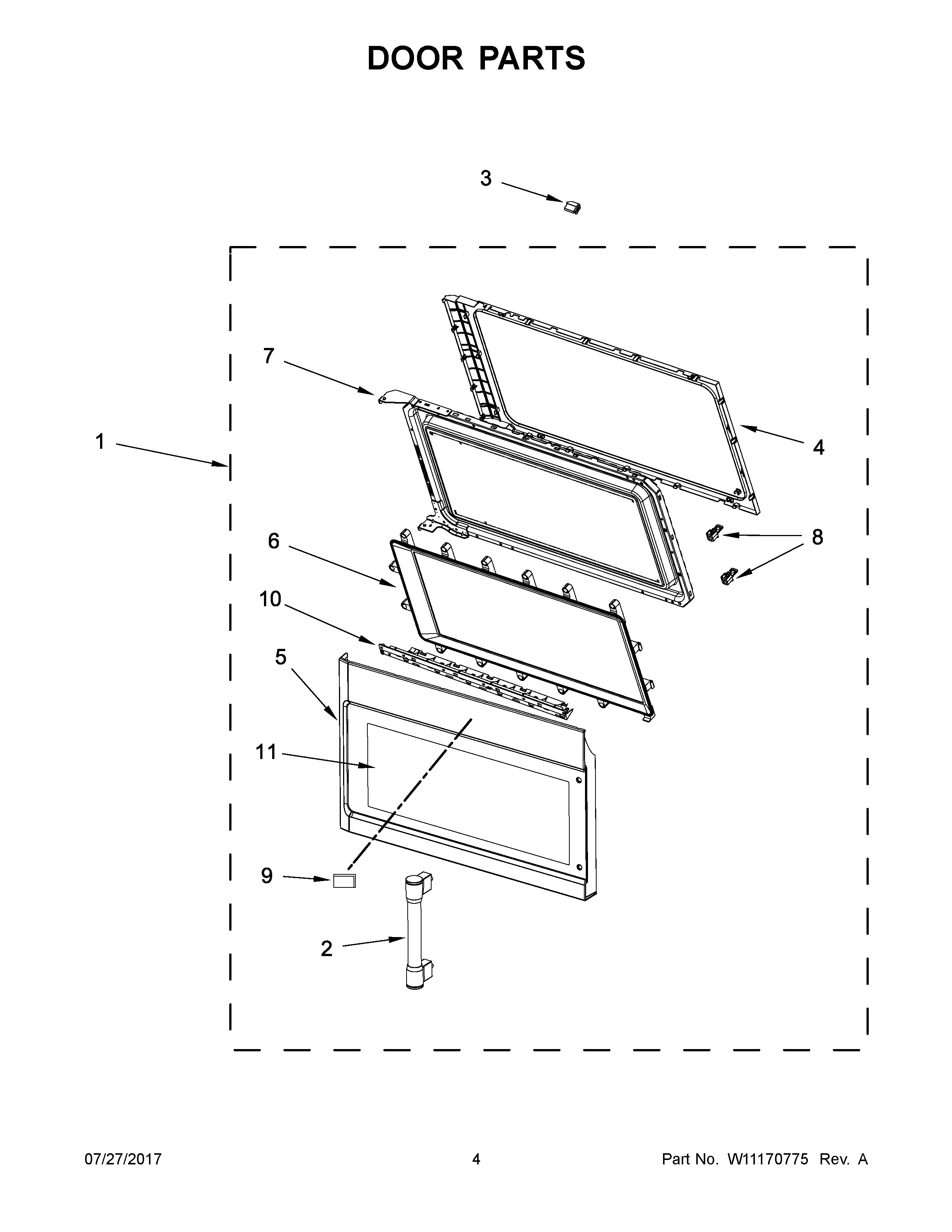

MMV6190DH3 03 – DOOR PARTS

MMV6190DH3 03 – DOOR PARTS

Written by

in

MMV6190DH3 03 – DOOR PARTS

Products

PositionProduct
1AMAY W10672192
1MAY W10672191
1BMAY W10672193
2HANDLE (WHITE ICE)
2AHANDLE (STAINLESS & BLACK ICE MODELS)
3STOPPER, DOOR
4FRAME, INNER
5BASSEMBLY, DOOR FRAME (STAINLESS)
5AASSEMBLY, DOOR FRAME (BLACK)
5ASSEMBLY, DOOR FRAME (WHITE)
6MAY W10541732
7MAY W10568847
8MAY W10489272
9BADGE
10TRIM, DOOR (WHITE)
10ATRIM, DOOR (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
11BASSEMBLY, DOOR GLASS (STAINLESS)
