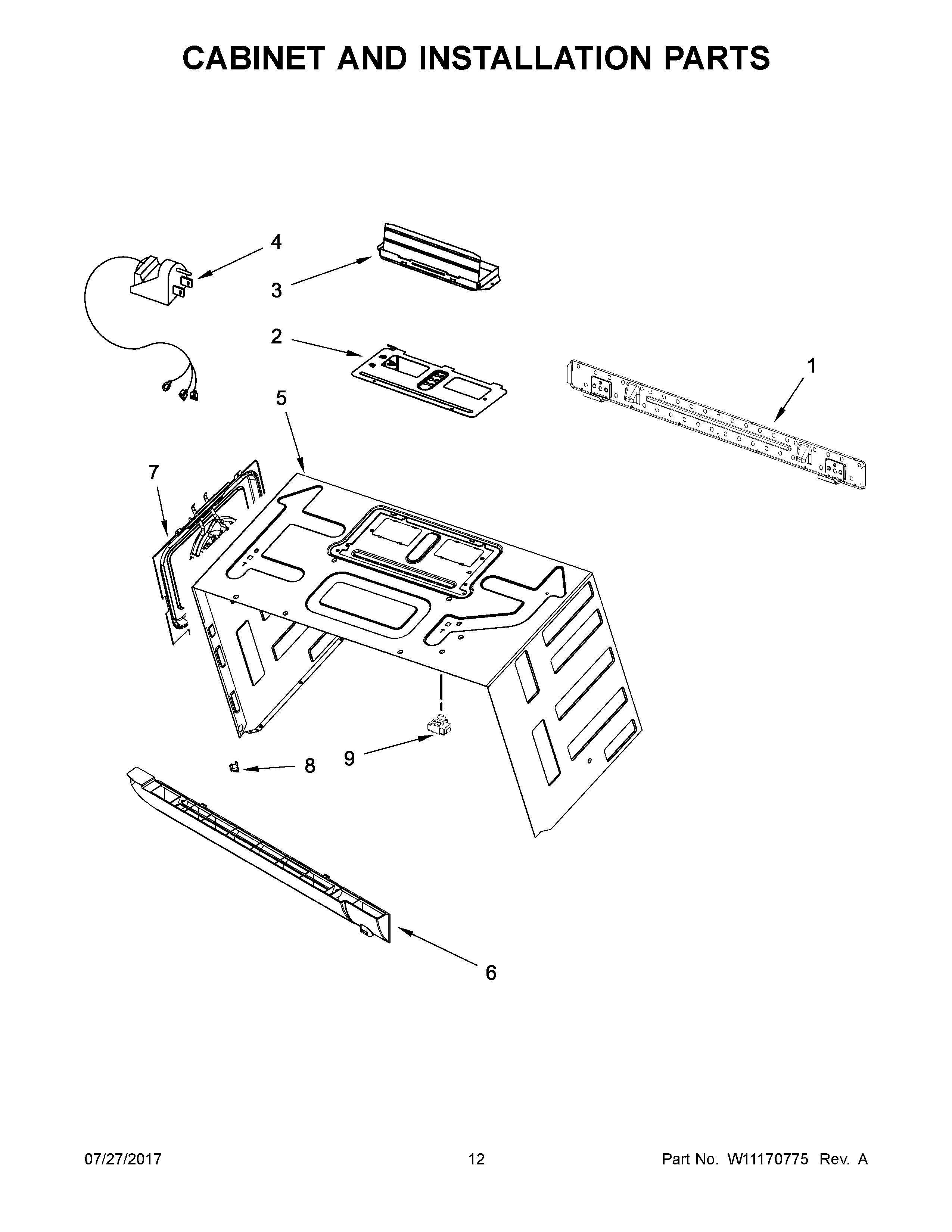

MMV6190DH3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	Installation, Hardware
NI	MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TURNTABLE
NI	MISCELLANEOUS PARTS, HARNESS, CONTROL
NI	INSULATION, BOTTOM
NI	MAY W10571453
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MAY W10571451
NI	MAY W10571450
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	LINER (NOT A SERVICEABLE PART)
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (WHITE)
5A	MAY W10571408
6	GRILLE, VENT (WHITE)
6A	GRILLE, VENT (BLACK)
7	MAY W10665531
8	MAY W10599629
9	ASSEMBLY, MOUNTING NUT
