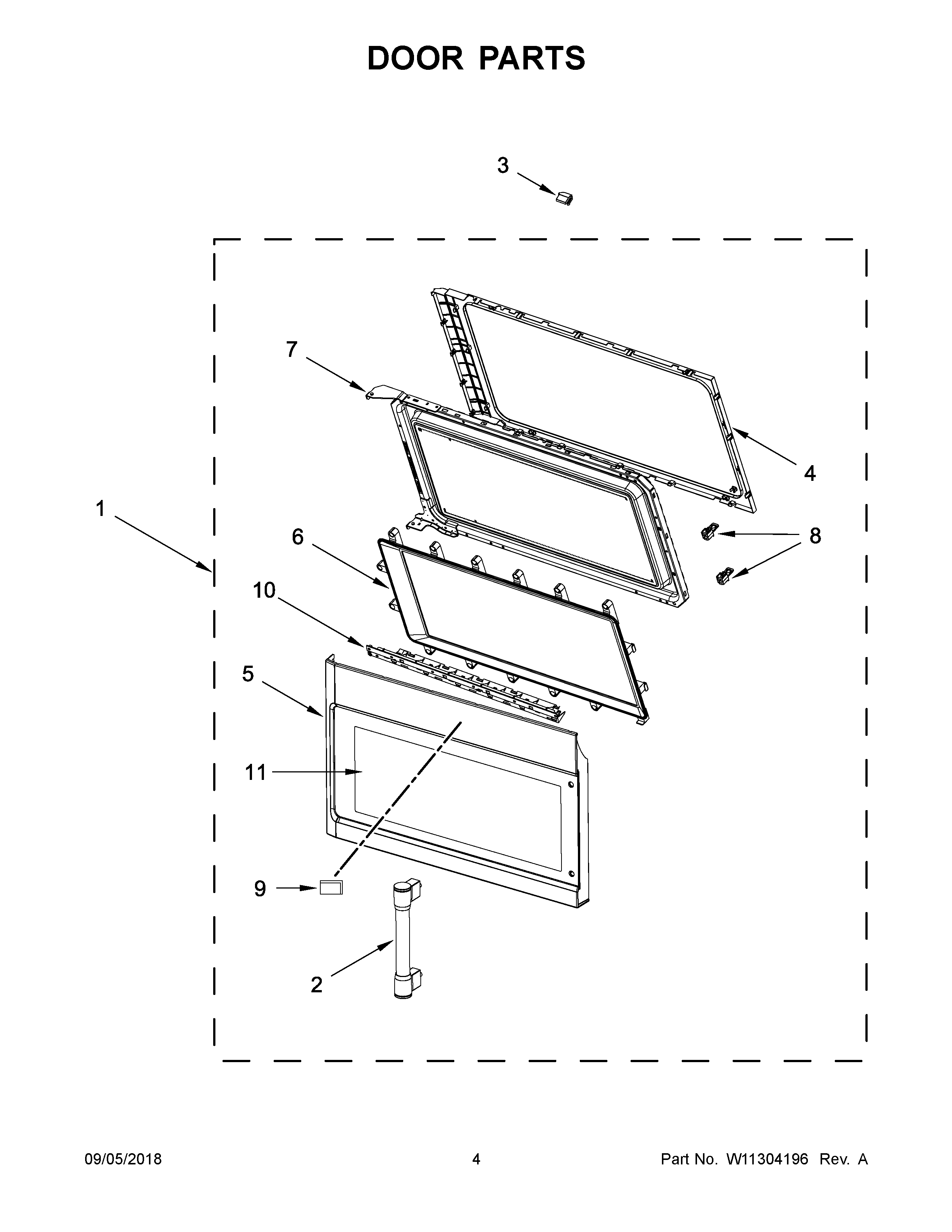

MMV6190FB2 03 – DOOR PARTS

Products

PositionProduct
1ADOOR, COMPLETE (BLACK)
1DOOR, COMPLETE (WHITE)
1BDOOR, COMPLETE (STAINLESS)
2BMAY W11157214
2AHANDLE (BLACK)
2HANDLE (WHITE)
3STOPPER, DOOR
4FRAME, INNER
5BASSEMBLY, DOOR FRAME (STAINLESS)
5ASSEMBLY, DOOR FRAME (WHITE)
5AASSEMBLY, DOOR FRAME (BLACK)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10ATRIM, DOOR (BLACK)
10TRIM, DOOR (WHITE)
11ASSEMBLY, DOOR GLASS (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
