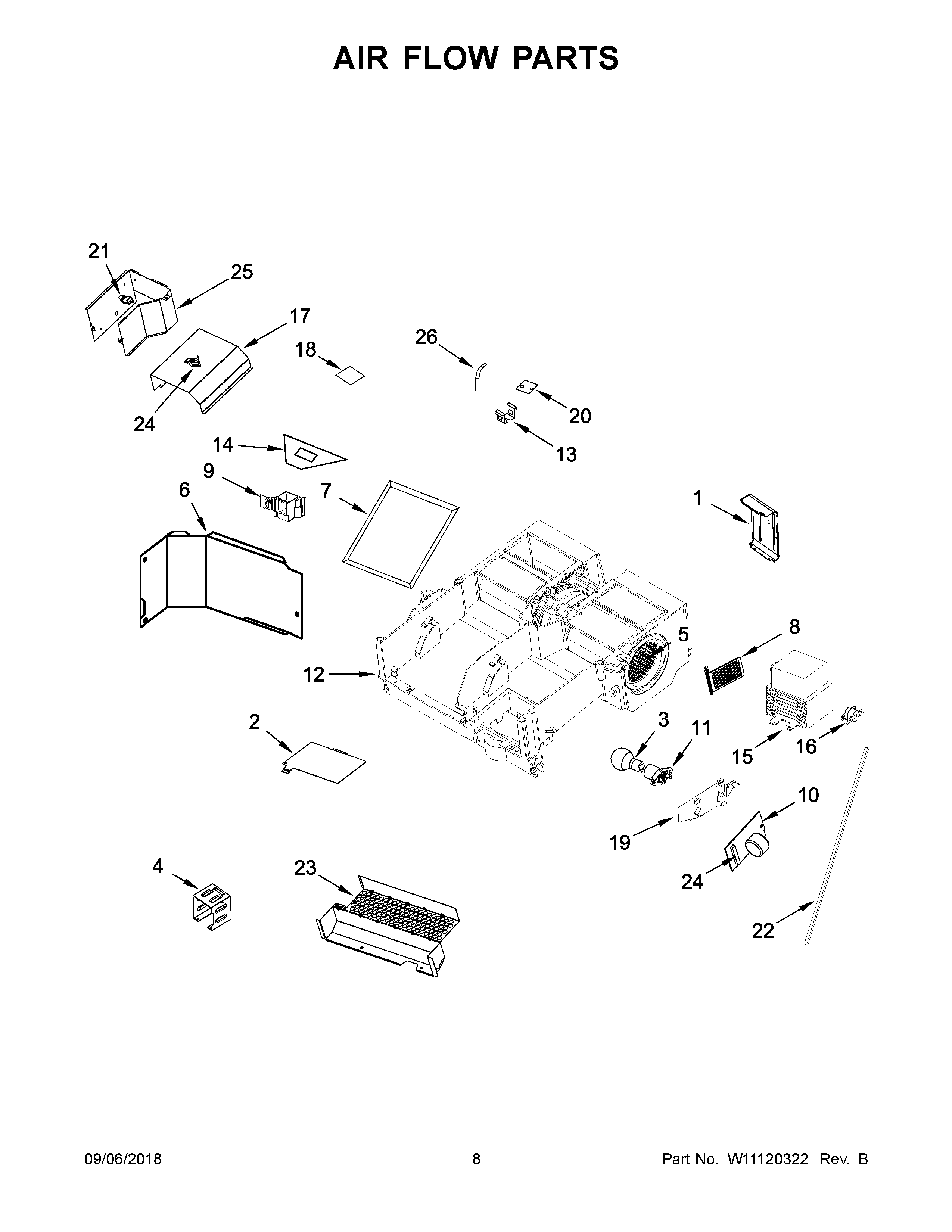

MMV6190FW0 05 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10631698
2	MAY 8206382
3	MAY 4393681
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR GUIDE
7	MAY 8206230
8	DOOR, VALVE
9	OUTLET, CAVITY (FRONT) (FOR WHITE MODELS)
9A	OUTLET, CAVITY (FRONT)
10	MAY W10531156
11	MAY W10210878
12	BASEPLATE, AIR GUIDE
13	CLIP
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	MAY W10591803
17	MAY W10533112
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	MAY W10259248
21	MAY W10557536
22	MAY W10571180
23	MAY W10629803
24	MAY W10654514
25	MAY W10533483
26	MAY W10557537
