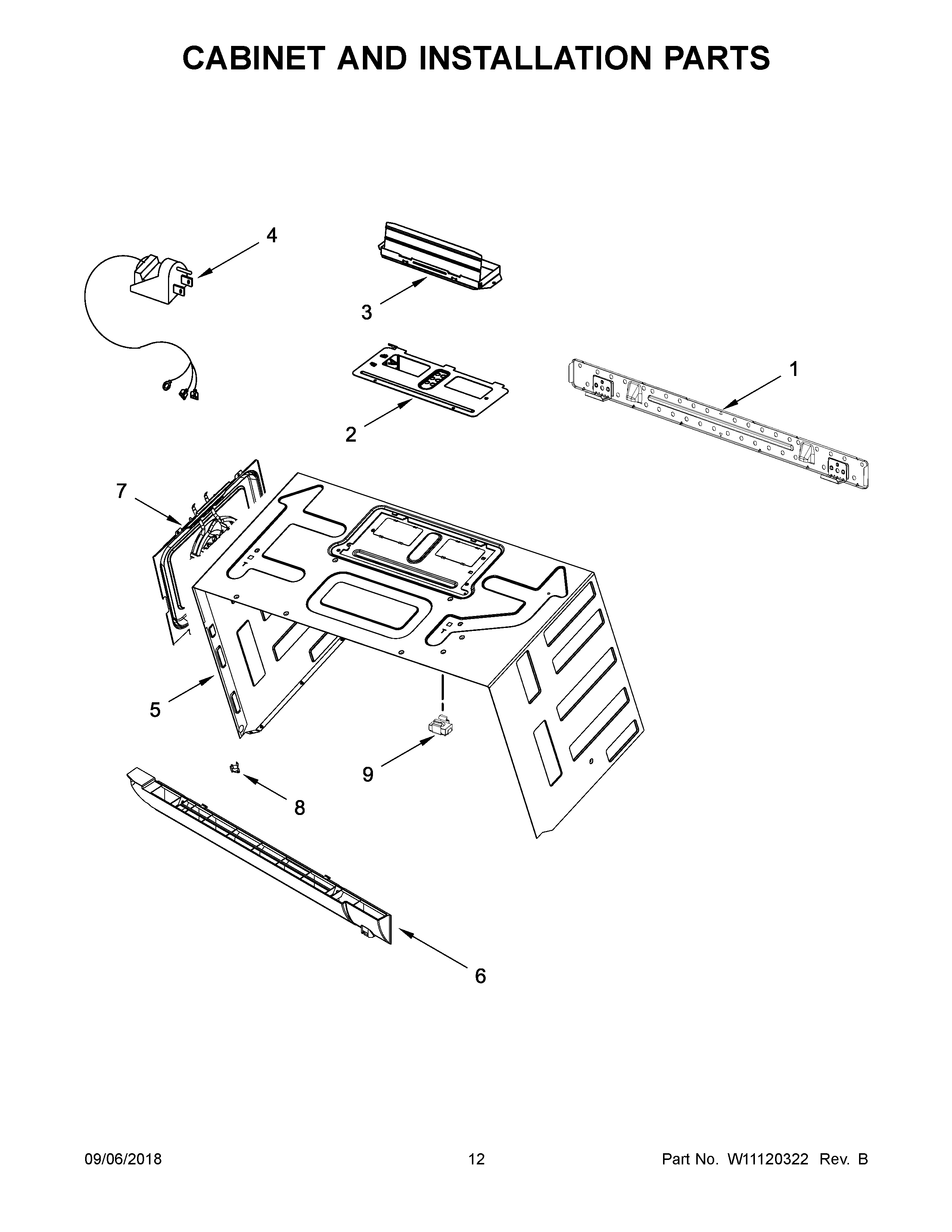

MMV6190FW0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIInstallation, Hardware
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, CONTROL
NIINSULATION, BOTTOM
NIMAY W10571453
NIMAY W10571451
NIMAY W10571450
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TURNTABLE
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2COVER, FAN MOTOR
3DAMPER
4CORD-POWER
5CASE, OUTER (WHITE)
5AMAY W10571408
6GRILLE, VENT (WHITE)
6AGRILLE, VENT (BLACK)
7MAY W10665531
8MAY W10599629
9ASSEMBLY, MOUNTING NUT
