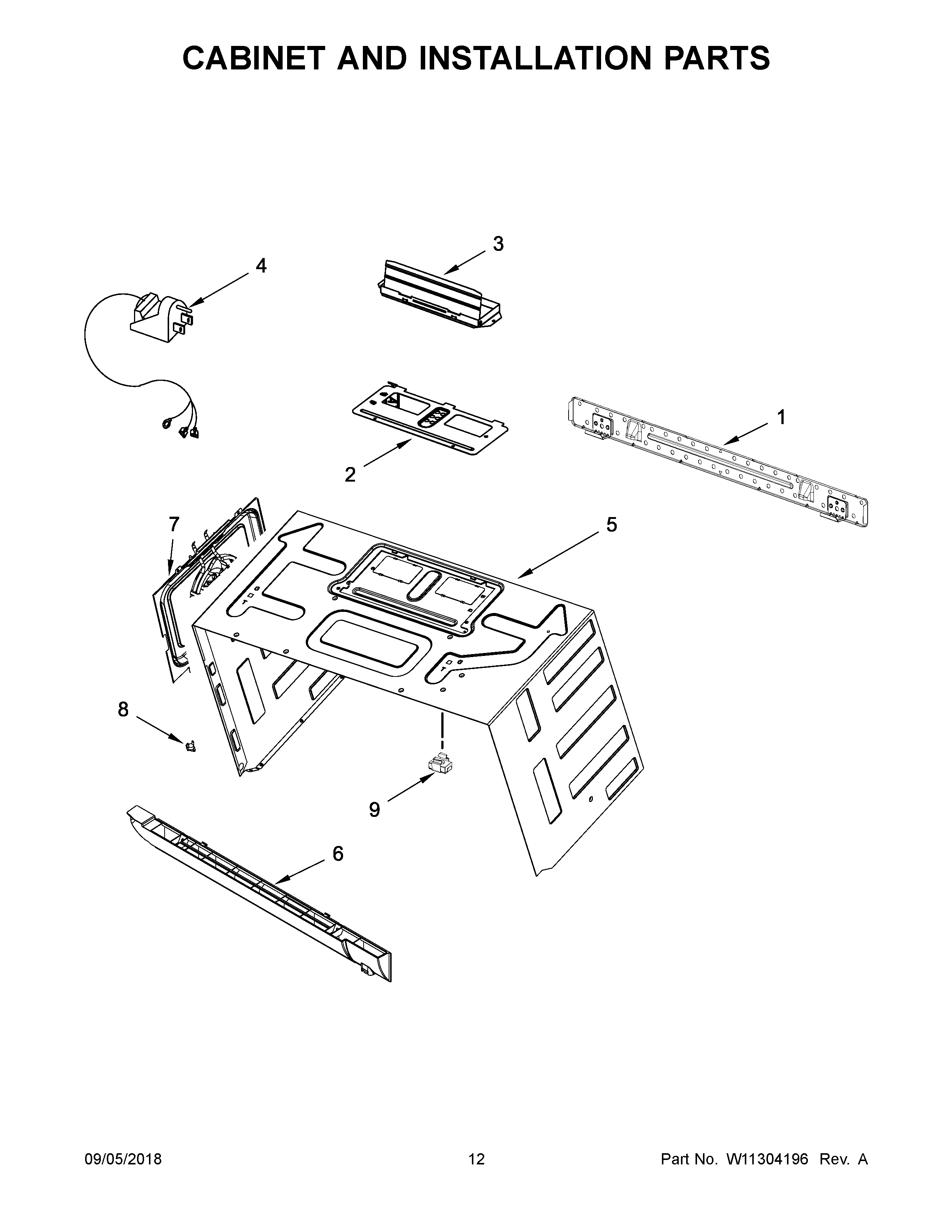

MMV6190FW2 07 – CABINET AND INSTALLATION PARTS

MMV6190FW2 07 – CABINET AND INSTALLATION PARTS

Written by

in

MMV6190FW2 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIInstallation, Hardware
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TURNTABLE
NIMISCELLANEOUS PARTS, HARNESS, CONTROL
NIINSULATION, BOTTOM
NIMAY W10571453
NIMAY W10571451
NIMAY W10571450
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
1PLATE, MOUNTING
2COVER, FAN MOTOR
3DAMPER
4CORD-POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6GRILLE, VENT (WHITE)
6AGRILLE, VENT (BLACK)
7MAY W10665531
8MAY W10599629
9ASSEMBLY, MOUNTING NUT
