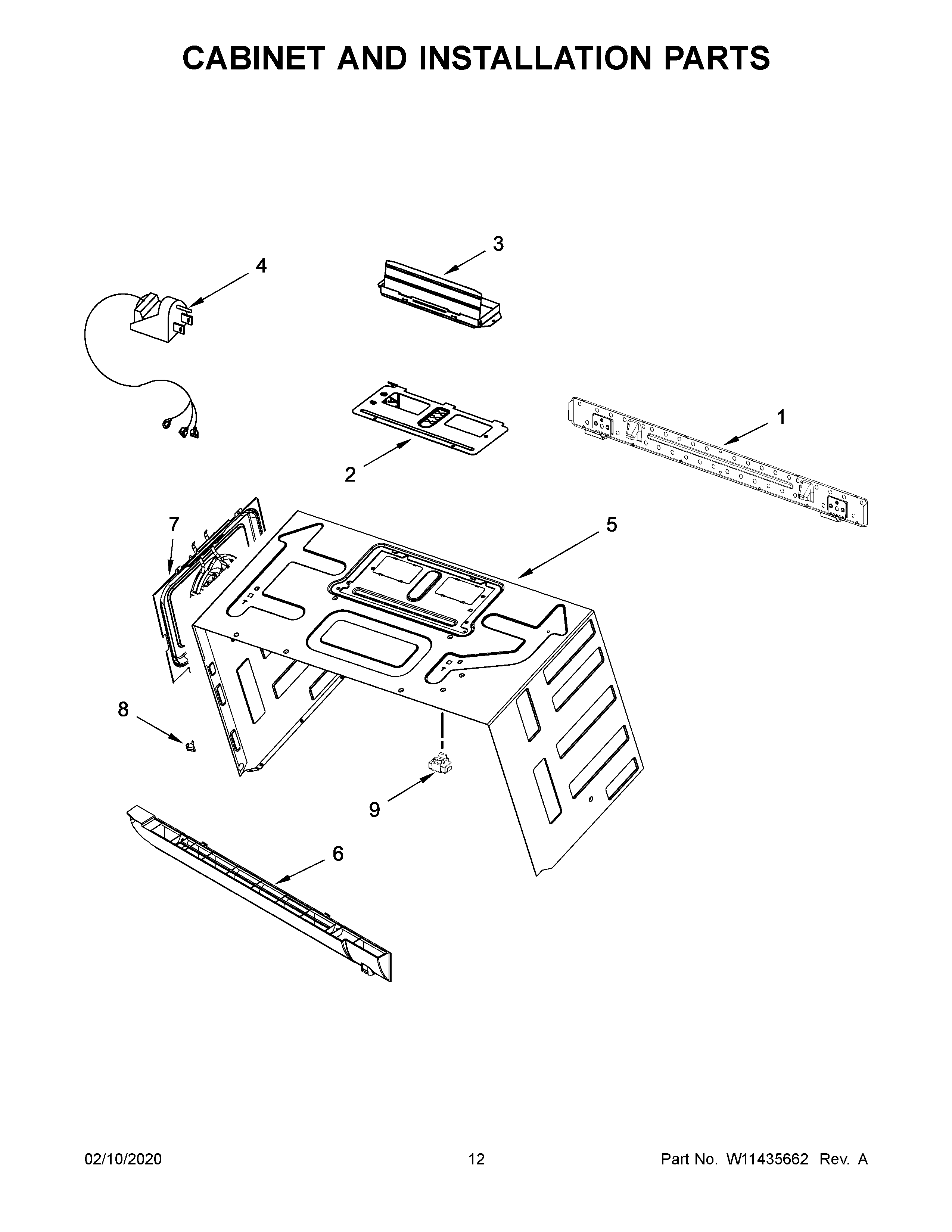

MMV6190FW3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	Installation, Hardware
NI	LINER (NOT A SERVICEABLE PART)
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND LAMP
NI	MISCELLANEOUS PARTS, HARNESS, CONTROL
NI	INSULATION, BOTTOM
NI	MAY W10571453
NI	MAY W10571451
NI	MAY W10571450
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (WHITE)
5A	CASE, OUTER (BLACK)
6A	GRILLE, VENT (BLACK)
6	GRILLE, VENT (WHITE)
7	MAY W10665531
8	MAY W11268275
9	ASSEMBLY, MOUNTING NUT
